Texas Instruments ADS8339EVM-PDK User Manual

This user's guide describes the operation and use of the
ADS8339 is a 16-bit, pseudo-differential, unipolar, successive approximation register (SAR), analog-to-
digital converter (ADC) with a maximum throughput of 250-KSPS. The device is a very low-power ADC
with excellent noise and distortion performance for ac or dc signals. The performance demonstration kit
(PDK) eases EVM evaluation with additional hardware and software for computer connectivity through a
universal serial bus (USB). The

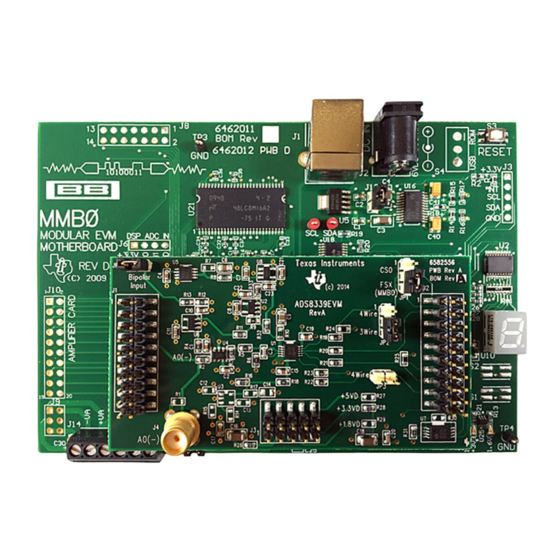

MMB0 motherboard, and an A-to-B USB cable. This user's guide covers circuit description, schematic
diagram, and bill of materials for the ADS8339EVM daughter card. Throughout this document, the
abbreviation EVM and the term evaluation module are synonymous with the ADS8339EVM-PDK.
The following related documents are available through the Texas Instruments web site at www.ti.com.
ADCPro is a trademark of Texas Instruments.
Windows is a registered trademark of Microsoft Corporation.
SPI is a trademark of Motorola, Inc.
Samtec is a trademark of Samtec, Inc.
All other trademarks are the property of their respective owners.
SBAU233A – October 2014 – Revised November 2015
Submit Documentation Feedback
ADS8339EVM-PDK
ADS8339EVM-PDK
Related Documentation
Device
ADS8339
OPA333
OPA376
OPA836
REF5045
THS4281
Copyright © 2014–2015, Texas Instruments Incorporated
SBAU233A – October 2014 – Revised November 2015
ADS8339EVM-PDK
ADS8339 evaluation module (EVM). The
includes the ADS8339EVM as a daughter card,
Literature Number
SBAS677
SBOS351
SBOS406
SLOS712
SBOS410
SLOS432
User's Guide
1
ADS8339EVM-PDK
