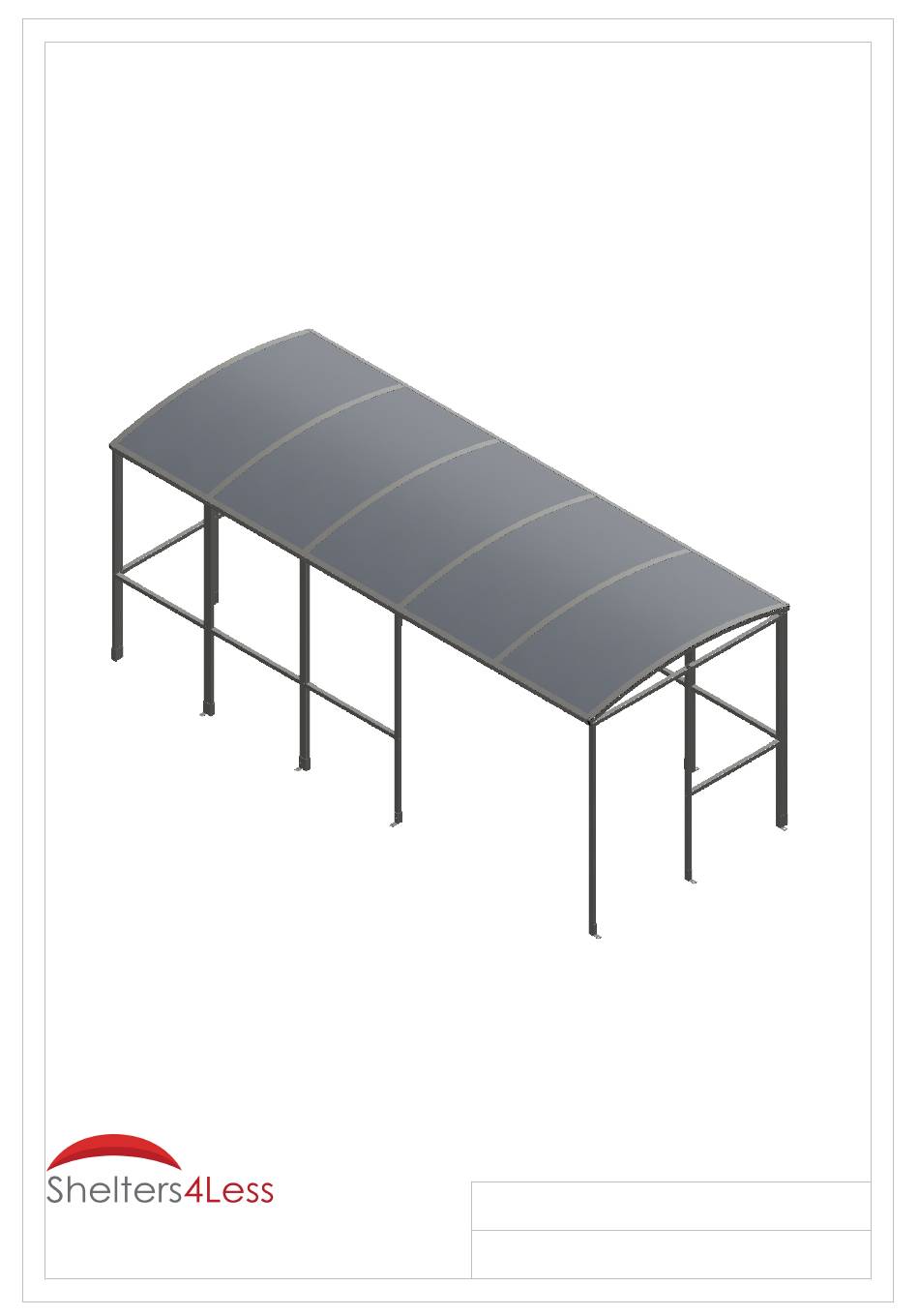

- Page 1 Assembly Instructions Shelter type: SR1564 Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk SR1564-04-200219-UK Tel : 0800 160 1002...
- Page 2 BALLOON VIEW Tools required (Not included): Drill/Screwdriver Wrench Mallet Torx bit Hack saw...
-
Page 3: Parts List
PARTS LIST DIMENSION DIMENSION ITEM NO. PART NO. DESCRIPTION IMAGE QTY. (MM) (INCHES) Frame 2000x1035 78.74x40.75 Bracket 110x110x40 4.33x4.33 Bracket 220x40 7.87x1.58 Post 2000x1030 78.74x40.55 Roof Tie 2060x40x40 81.1x1.58x1.58 Foot Bracket 109x100x40 4.29x3.94x1.58 Foot Bracket 109x100x80 4.29x3.94x3.15 Bracket 110x42x40 4.33x1.81 Rafter 2200x40x40 86.61x1.58x1.58... - Page 4 Step 1 Assemble all S1 Frames to make up the main structure using JF1 bracket for straight joints and CB1 brackets for the corners. BLUE DIMENSIONS - MM GREEN DIMENSIONS - INCHES S1 Frame Measure the length and width of the shelter to ensure correct alignment Ensure correct alignment on all four corners...
- Page 5 Step 2 Attach P1 Post using one JF1 bracket then attach ST3 Tie bar using two CB1 brackets and one JF1 bracket. Move shelter in to its final position and ensure the structure is square. Then attach FT1 and FT3 brackets to secure the shelter to the ground. NOTE: Insert EC40s into any open ends of ST3 and P1 before assembling.
- Page 6 Step 3 Attach R2 Rafters using RB1 brackets. Use four RB1 brackets to secure each Rafter and two for the end Rafters. Apply SS sealing strips along the length of the rafters. ROOF DETAIL 40.75 40.75 40.75 40.75 1035 1035 1035 1035 39.17...
- Page 7 Step 4 Attach ACC2 roof panels and ACE2 roof panels on top of the sealing strips. Screw down the RC2 strips, along the gaps in the panels. Screw down the A2 end caps along the edges of the shelter. Then fit the Black plastic caps on exposed nuts and bolts.
-
Page 8: Plan View
PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm OR 7.87in oversized on all 4 sides. 40.75 39.17 1035 1035 1044.50 40.75 41.12 2110 OR 83.07... - Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Maintenance
Ensure all fittings are tight (for example after a big storm) • Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Unit B, Sharp Road, Poole, BH12 4BG All Parts and Fixings checked by: Print Name:...
