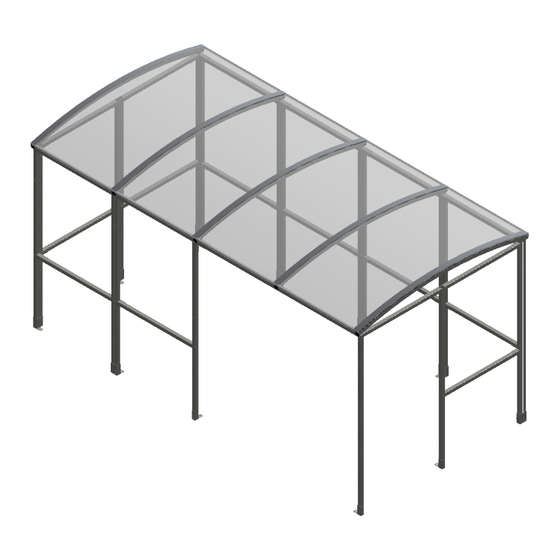

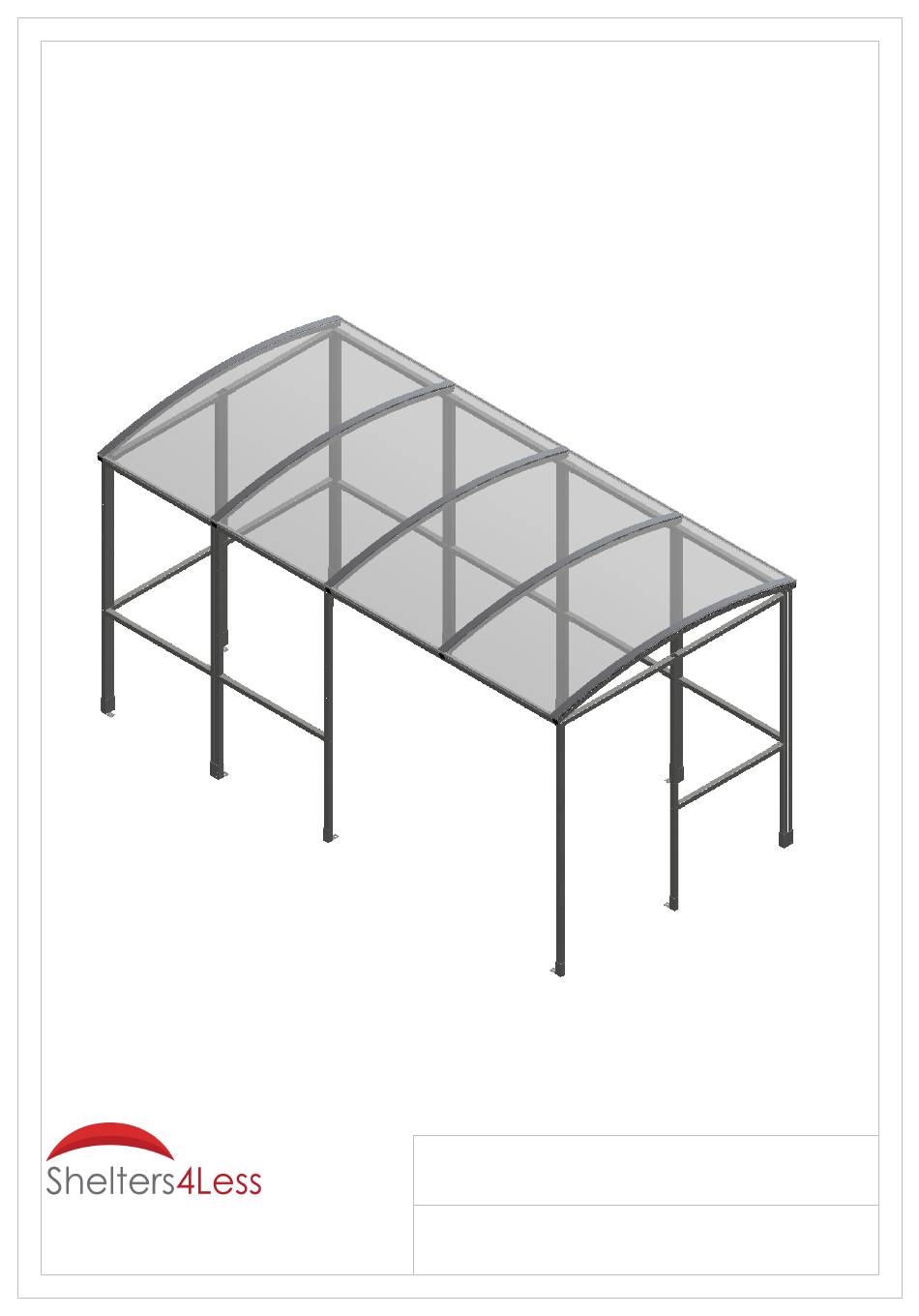

- Page 1 Assembly Instructions Shelter type: SR1556 Email : Sales@shelters4less.co.uk SR1556-01-190116-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
- Page 2 EXPLODED VIEW...
-
Page 3: Table Of Contents
PARTS LIST DESCRIPTION DIMENSION IMAGE QTY. ITEM NO. PART NO. Frame 2000x1035 Bracket 110x110x40 Bracket 220x40 Roof Tie 2060x40x40 Post 2000 Foot Bracket 106x110x40 Foot Bracket 106x110x80 Bracket 110x46 Rafter 2200x40x40 Sealing Strip Trim To 2195 4 ROLLS Roof Panel 2205x1050 PCE2 Roof Panel... - Page 4 Fittings/Tools AB1210 Bolt set M10 Washer Black 25 mm 50 mm M10/12 x 100mm M10 x 60 mm Tech Tech Concrete Bolt screw screw Pack A+B Required Spare Image Tools required: Drill/Screwdriver Mallet Hack saw Tools included: Spanner Torx bit...
-
Page 5: Cb1
Step 1 Assemble S1 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. GENERAL NOTE: THE 50mm TECH SCREWS ARE FOR FIXING ROOF STRIPS (RC) ONLY Ensure correct alignment on corners. -
Page 6: St3
Step 2 Attach P1 post using one JF1 bracket, then attach ST3 tie bar using another JF1 bracket and two CB1 brackets. Move the shelter to its final position, make sure the structure is square and attach the FT1 and FT3 foot brackets to secure the shelter to the ground. - Page 7 Step 3 Use RB1 brackets to secure the R2 roof rafters. 1035 1035 1035 1035...
-
Page 8: Pce2
Step 4 Apply sealing strips (SS) to the top of the rafters. Align PCE2 roof panels with the outer rafters then space out the PCC2 panels evenly. Apply more SS strips to the top of the roof panels, directly above first strips. Cover the two edges along the outer rafters and gaps with RC2 strips before screwing them into place using the 50mm TEC screws. -
Page 9: 2Md
Step 5 Clip on the 2MD end caps. Then fit the Black plastic caps on exposed nuts and bolts. Fit the square end caps to any open ends of box sections. - Page 10 Plan view Suggested size for concrete base: 200mm oversized on all four sides. 2180.33 1035 1035 1035 985.50...
- Page 11 NOTES:...
- Page 12 Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
