User Guide for the T19P IP Phone

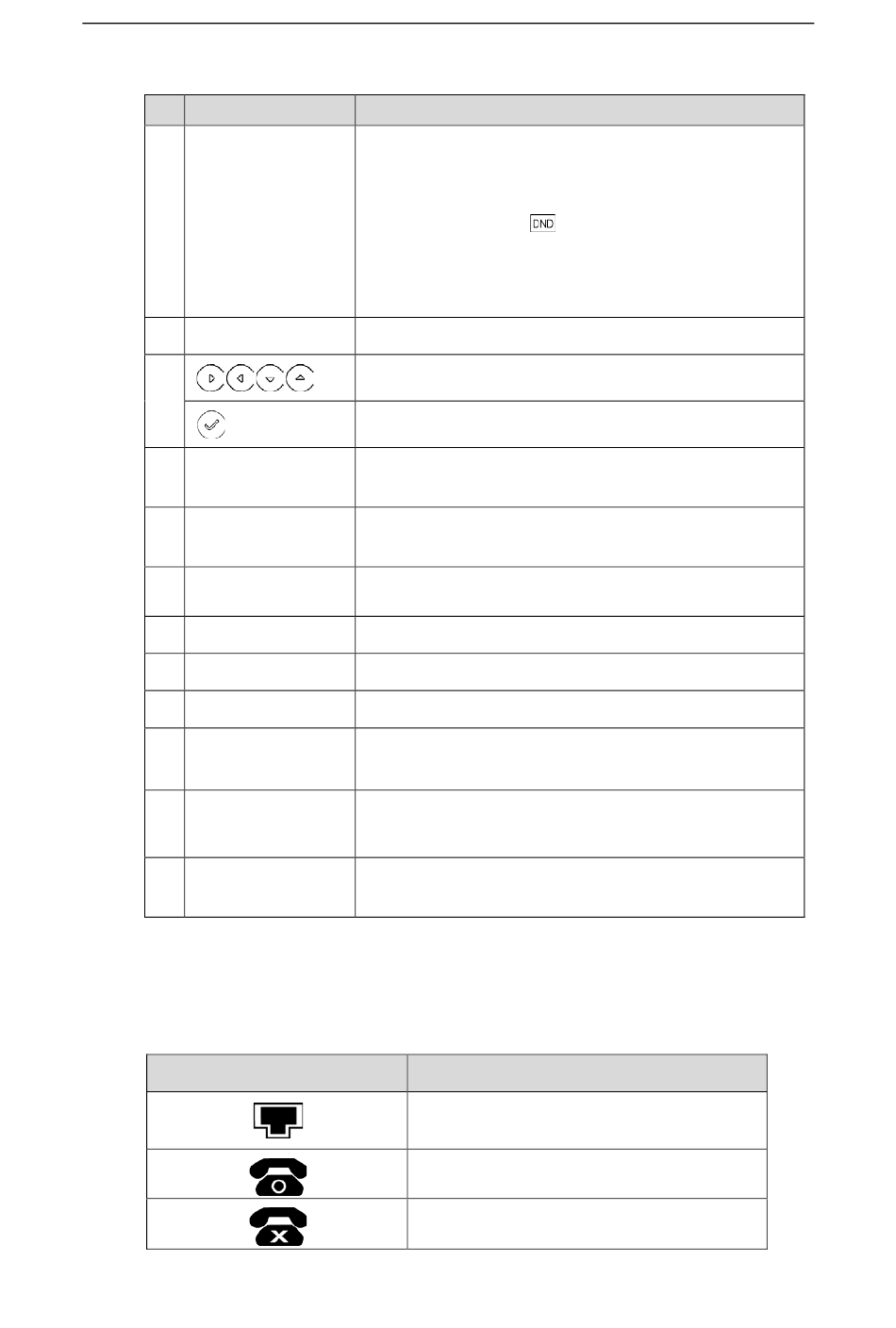

Hardware component instructions of the T19P IP phone are:
Item
① LCD Screen
②
Power Indicator LED
③
④
Mute Key
⑤ Message Key
⑥
Transfer Key
⑦
Headset Key
⑧ Speakerphone Key
⑨
RD Key
⑩
Volume Key
⑪ Keypad
⑫
Soft Keys

Icon Instructions

Icons appearing on the LCD screen are described in the following table:
2
Shows information about calls, messages, soft keys,
time, date and other relevant data:
• Call information — caller ID, call duration
• Icons (for example,
• Missed call text or second incoming caller information
• Prompt text (for example, "Saving config file!")
• Time and date
Indicates phone power status and phone status.
Scroll through the displayed information.
Confirms actions or answers incoming calls.
Mutes or un-mutes calls.
Indicates and accesses voice mails.
Transfers a call to another party.
Toggles the headset mode.
Toggles the hands-free speakerphone mode.
Redials a previously dialed number.
Adjusts the volume of the handset, headset, speaker,
and ringer.
Provides the digits, letters and special characters in
context-sensitive applications.
Label automatically to identity their context-sensitive
features.
Icon
Network is unavailable
Registered successfully
Register failed
Description
)
Description
