7.2

Build of firmware binaries

The firmware is built with the STM32CubeIDE using the Build All entry in the project menu.
7.3

Flashing

Use STM32CubeProgrammer to flash the bootloader and the firmware:
• Bootloader must be flashed to the address 0x08000000
• Firmware must be flashed to the address 0x08005800
Some binaries are available in the STSW-ST25DV010 package in \binaries directory. It contains:
• the bootloader binary
• the firmware for the board ANT7-T-25DV64KC and European region (EU868)
• the firmware for the board X-NUCLEO-NFC07A1 and European region (EU868)
Other declinations of firmware (according to board and region) must be recompiled as shown in
Section 7.1 Firmware
UM3146 - Rev 1

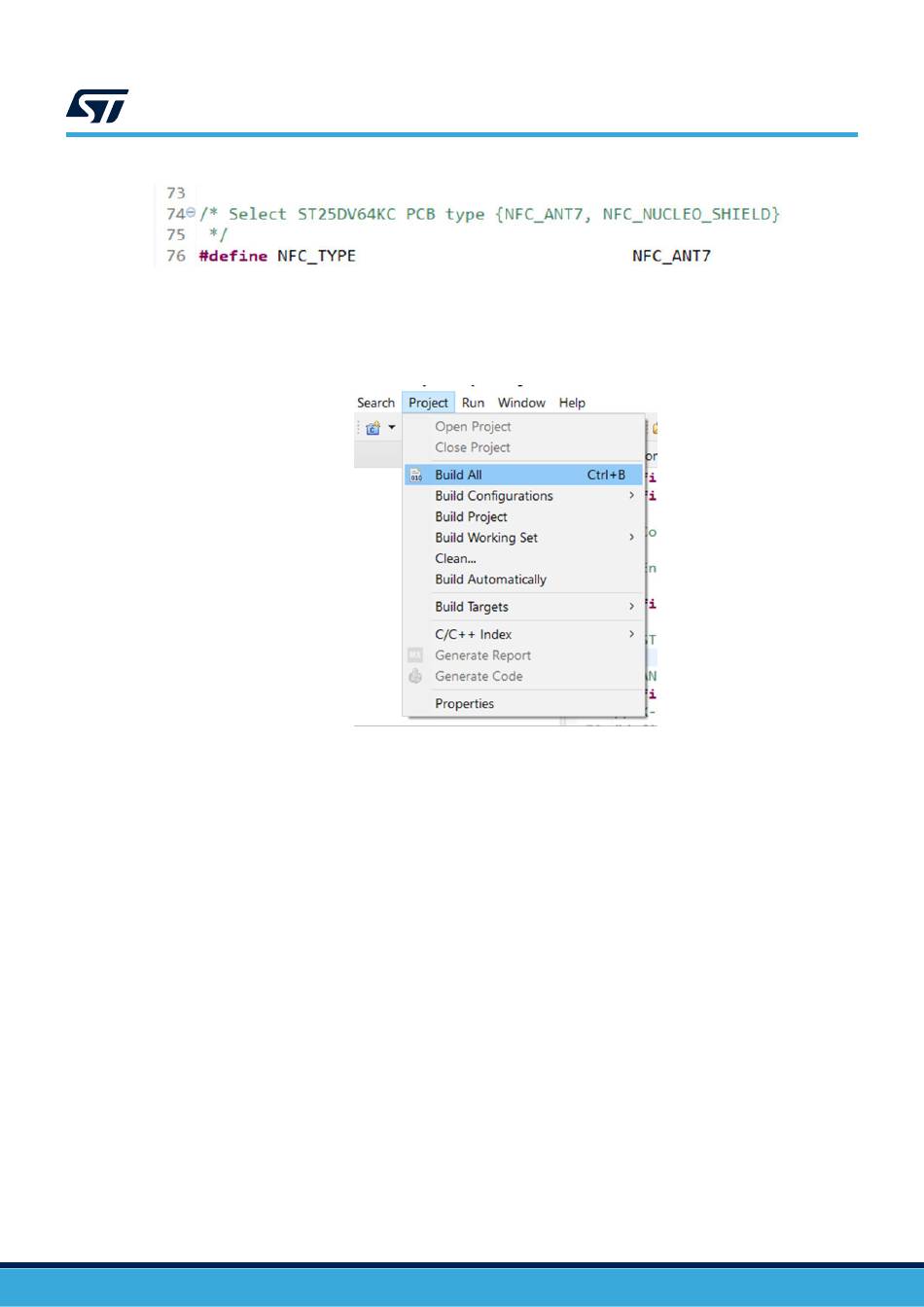

Figure 16.
Figure 17. Build firmware binaries
personalization.
#define NFC_TYPE
UM3146
Build of firmware binaries
page 15/33
