If "Device from May 2014 (with Dip-Switches)" is set in the section "Set Communication", the window appears like below:

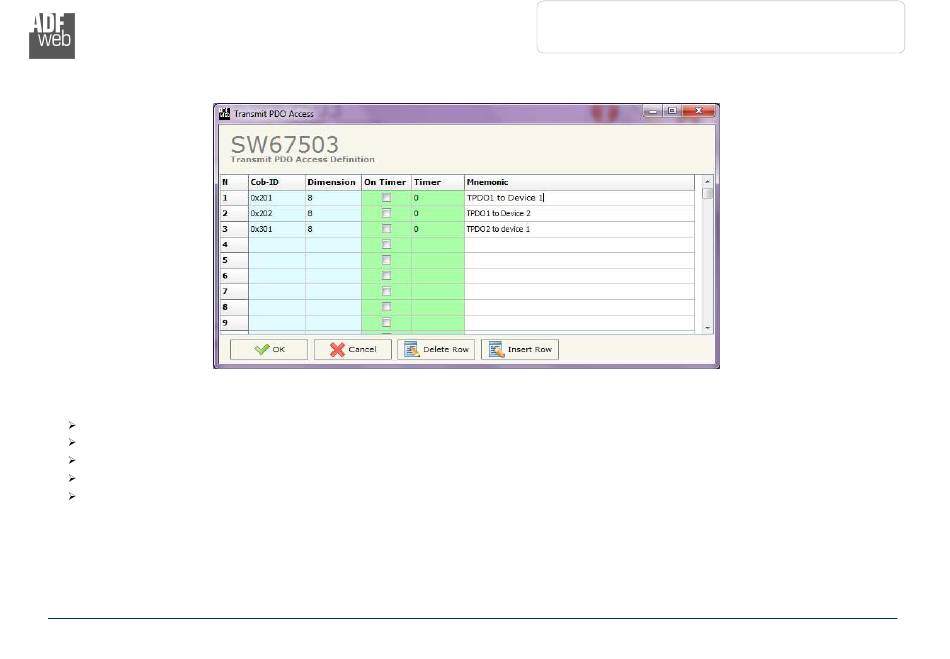

Figure 5b: "Transmit PDO Access Definition" window
In the field "Cob-ID" insert the Cob-ID of the PDO you would to write from Ethernet to CANopen.
In the field "Dimension" insert the number of bytes of the PDO (the maximum dimension is 8 Bytes);
If the field "On Timer" is checked the PDO is sent cyclically;
In the field "Timer" insert the cyclic delay;
In the field "Mnemonic" the description for the PDO is defined.
