Showven SPARKULAR FALL User Manual page 4

4. Air Intake
5. DMX IN
6. DMX OUT
7. Power Switch
8. Fuse
9. Power IN
10. Power OUT
11. LCD Screen
12. Cooling Fan

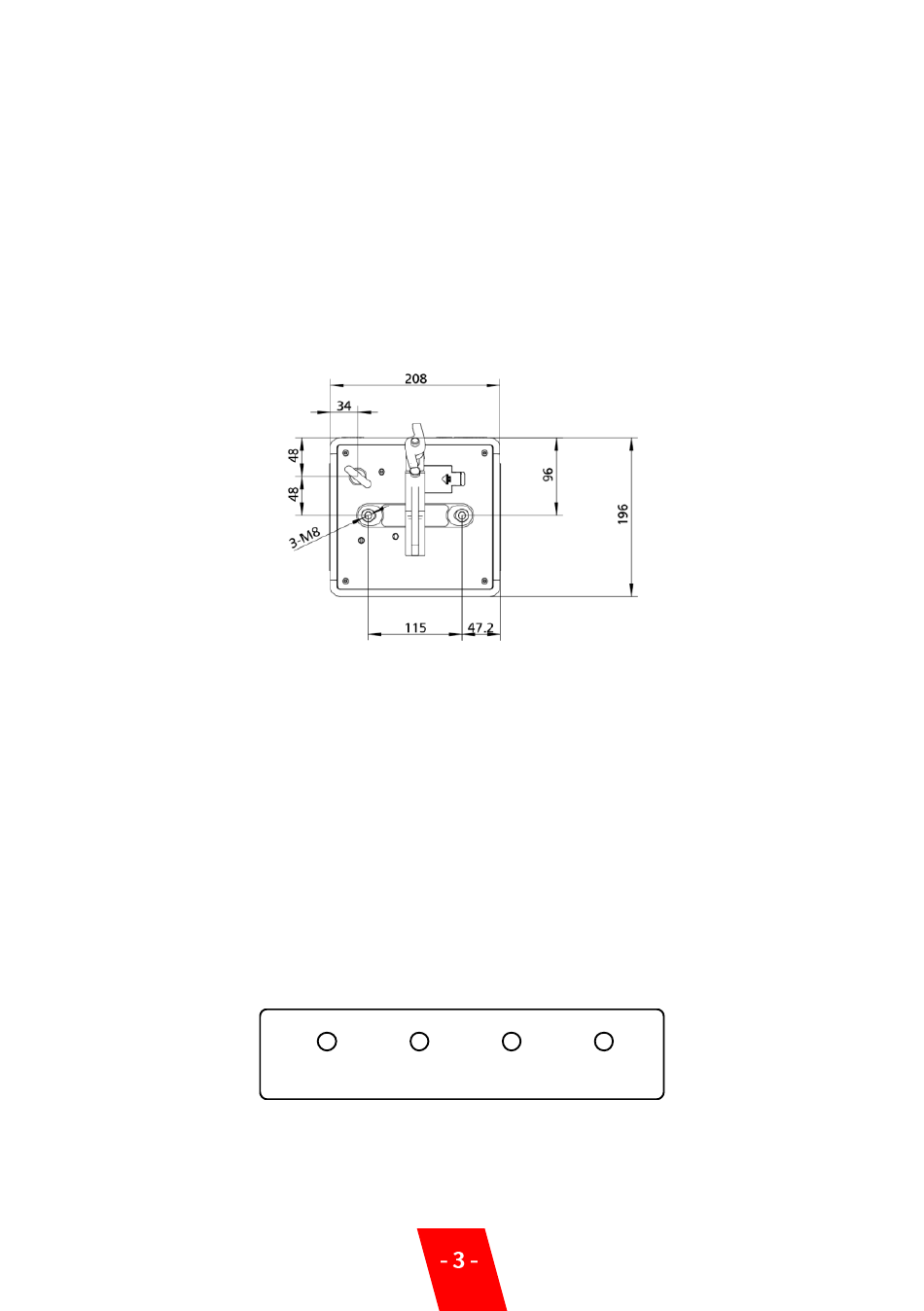

Schematic diagram of the top fixing hole
Technical Specifications
Δ
\ MODEL: BT04/BT05
\ DIMENSION: 196× 208× 192mm
\ WEIGHT: 6.0kg
\ VOLTAGE: 220V(BT04)/110V(BT05), 50/60Hz
\ WORK POWER: 500W
\ EFFECT HEIGHT: 2-7m(according to HC8200 type)
\ INTERFACE: 3-pin XLR, POWER IN/OUT
\ CONTROL: DMX 2 channels, Wireless Remote
\ ADAPTABLE TRUSS SIZE: 40-60mm
Operation Panel
Δ
1. LED display area:
READY: Flash means machine is preparing, LED keeps on means ready to work
DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT: Light ON when system is heating up
READY DM X FAU LT HEAT
