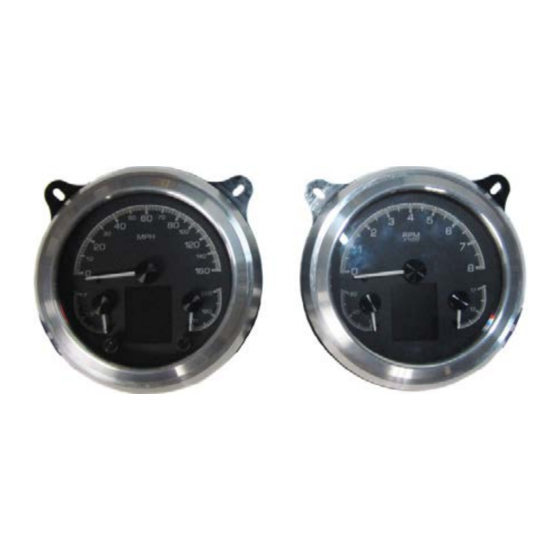

Dakota Digital HDX-47C-PU Instrument Installation

For 1947-53 chevy pickups

Download this manual

HDX-47C-PU

Dakota Digital HDX Instrument Installation

For 1947-'53 Chevy Pickups

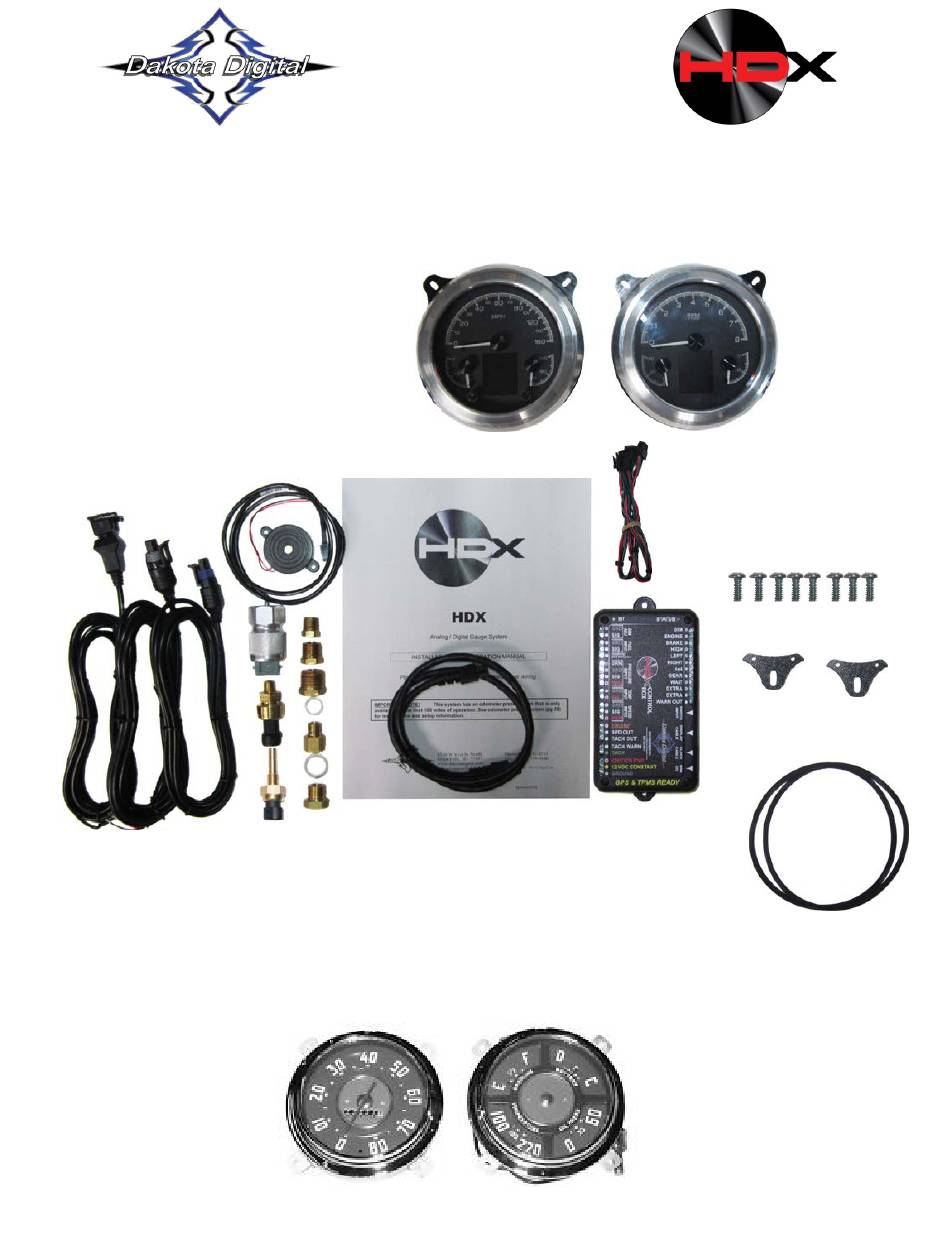

Your new HDX-47C-PU kit includes:

HDX Display

Universal Sender

Pack

Buzzer

Installation Manuals

Interconnect

Harness

8x Screws

2X Mounting Tabs

Foam Gaskets

Control Box

Main Harness

Installation

1. Remove the stock gauges from the dash. Each gauge is held in place by four nuts on studs on

the back of the dash. Save the nuts as they will be re-used to secure the new HDX kit.

Manual # 650565A

Page 1 HDX-47C-PU Dakota Digital HDX Instrument Installation For 1947-‘53 Chevy Pickups Your new HDX-47C-PU kit includes: HDX Display Universal Sender Pack Buzzer Installation Manuals Interconnect Harness 8x Screws 2X Mounting Tabs Foam Gaskets Control Box Main Harness Installation 1. Remove the stock gauges from the dash. Each gauge is held in place by four nuts on studs on the back of the dash.
Page 2 2. Your HDX kit comes with two variations for lower mounting tab locations, choose the location you need by aligning the four mounting tabs to the studs in the dash. Once the correct mounting location is decided; secure the tab to the housing by lining up the thru-holes in the tab to the holes in the housing and using the supplied screws (4 per gauge).
Page 3 5. Connect the provided interconnect harness to the back of the HDX system. 6. Connect the provided main harness and the buzzer (optional for audio feedback) to the back of the HDX system. Buzzer Connecter Main Harness Manual # 650565A...
Page 4 7. Refer to the main manual for wiring instructions to complete the HDX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650565A...
