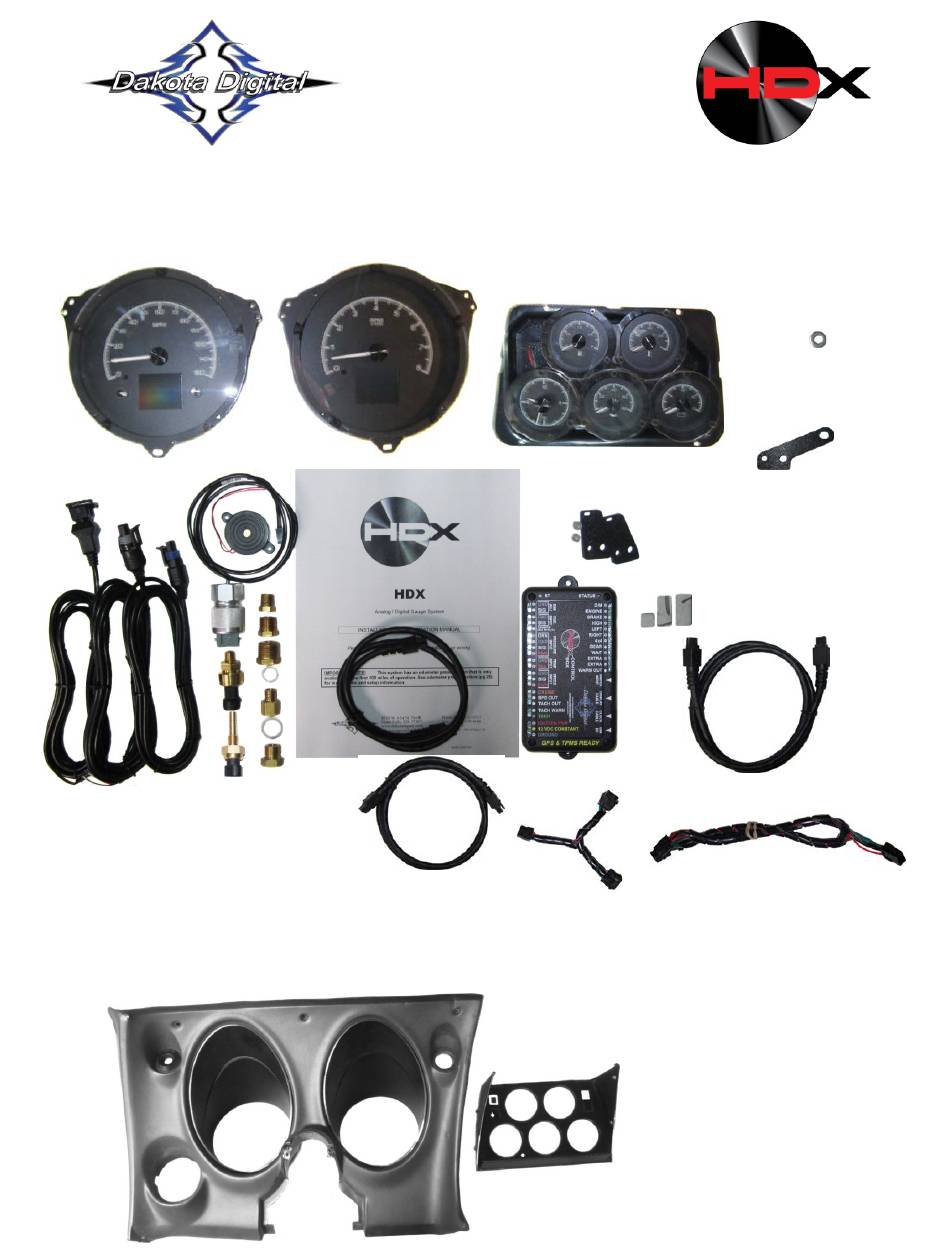

Your new HDX-68C-VET kit includes:
Universal Sender
Pack
(2) Main Harnesses
Installation
1. Remove the stock gauge clusters from the dash and save all hardware for reassembly.
HDX-68C-VET
Dakota Digital HDX Instrument Installation
For 1968-'77 Corvettes
HDX Displays
Installation Manuals
Y Harness
Extended Mounting
Bracket
(2) Mounting Brackets
(2) Thumb Nuts
(3) Block-Off Lenses
Control Box
Washer
Clock Harness
Interconnect
Harness
Manual # 650651
