Dakota Digital HDX-54C-PU Instrument Installation

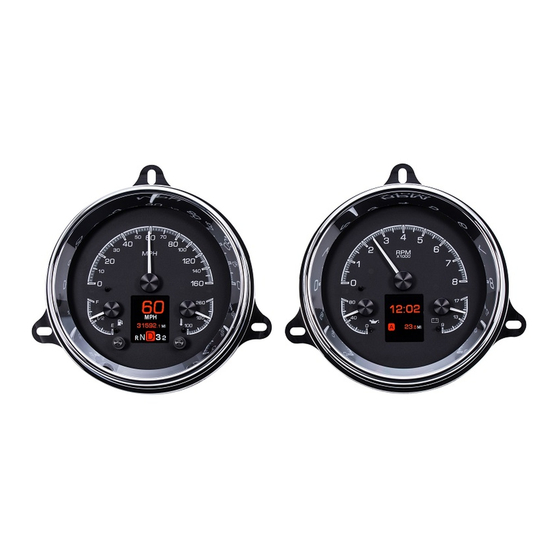

For 1954 and 1955 chevy pickup systems

HDX-54C-PU

Dakota Digital HDX Instrument Installation

For '54 and '55 "First Series" Chevy pickup systems

Your new HDX-54C-PU kit includes:

HDX Display

Universal Sender

Pack

Buzzer

Installation Manuals

Interconnect Harness

Control Box

Main Harness

1. Remove the stock gauges from the dash. Each gauge is held in place by three nuts on studs on

the back of the dash. Save the nuts as they will be re-used to secure the new HDX kit.

Manual # 650622A

Table of Contents

Do you have a question about the HDX-54C-PU and is the answer not in the manual?

Page 1 HDX-54C-PU Dakota Digital HDX Instrument Installation For ‘54 and ‘55 “First Series” Chevy pickup systems Your new HDX-54C-PU kit includes: HDX Display Universal Sender Pack Buzzer Installation Manuals Interconnect Harness Control Box Main Harness Installation 1. Remove the stock gauges from the dash. Each gauge is held in place by three nuts on studs on the back of the dash.
Page 2 2. Secure the new HDX Instruments to the dash re-using the original nuts. 3. Connect the provided interconnect harness to the back of the HDX system. Manual # 650622A...
Page 3 4. Connect the provided main harness and the buzzer (optional for audio feedback) to the back of the HDX system. Buzzer Connecter Main Harness 5. Refer to the main manual for wiring instructions to complete the HDX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
