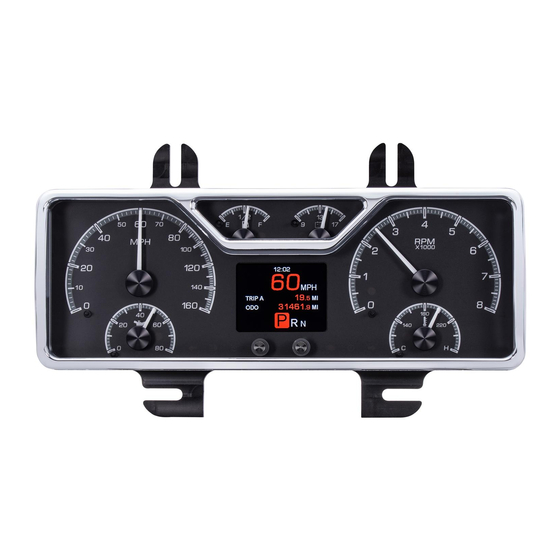

HDX-40F
Dakota Digital HDX Instrument Installation
For 1940 Ford Car
1940-'47 Ford Pickup
Your new HDX-40F kit includes:
HDX Display
Buzzer
Installation Manuals
Universal Sender
Pack
Ford Speed Adapter
Control Box
Main Harness
Installation
1. Remove the stock gauge cluster from the dash. The mounting hardware will be re-used.
Manual # 650605A
Advertisement
Related Manuals for Dakota Digital HDX-40F
Summary of Contents for Dakota Digital HDX-40F
- Page 1 HDX-40F Dakota Digital HDX Instrument Installation For 1940 Ford Car 1940-’47 Ford Pickup Your new HDX-40F kit includes: HDX Display Buzzer Installation Manuals Universal Sender Pack Ford Speed Adapter Control Box Main Harness Installation 1. Remove the stock gauge cluster from the dash. The mounting hardware will be re-used.
- Page 2 2. From the rear of the dash; insert the HDX system into the opening and securely mount using the stock hardware from disassembly 3. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the HDX system.
- Page 3 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650605A...
