HDX-70C-CAM
Dakota Digital HDX Instrument Installation
For 1970-'81 Chevy Camaro

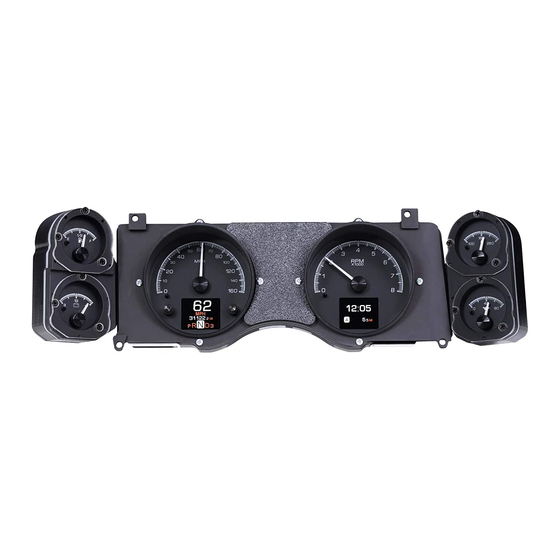

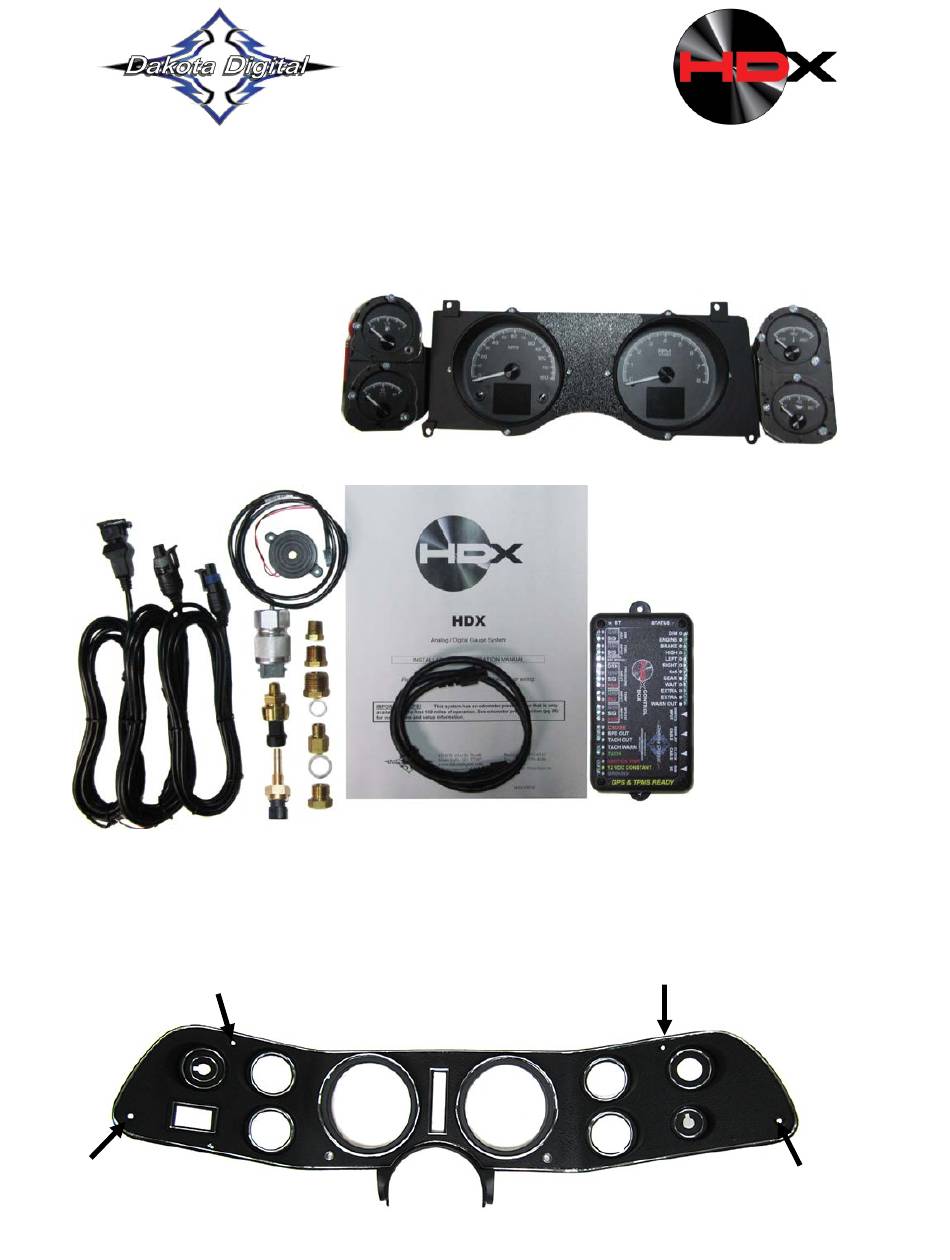

Your new HDX-70C-CAM kit includes:
Universal Sender
Pack
Buzzer
Installation Manuals
HDX Display
Control Box
Main Harness
Installation
1. First remove the four screws holding the bezel to the dash. These four screws will be re-used for
re-assembly.
Manual # 650571A
