HDX-66F-BRO
Dakota Digital HDX Instrument Installation
For 1966-'77 Ford Bronco
For 1961-'66 Ford Pickup

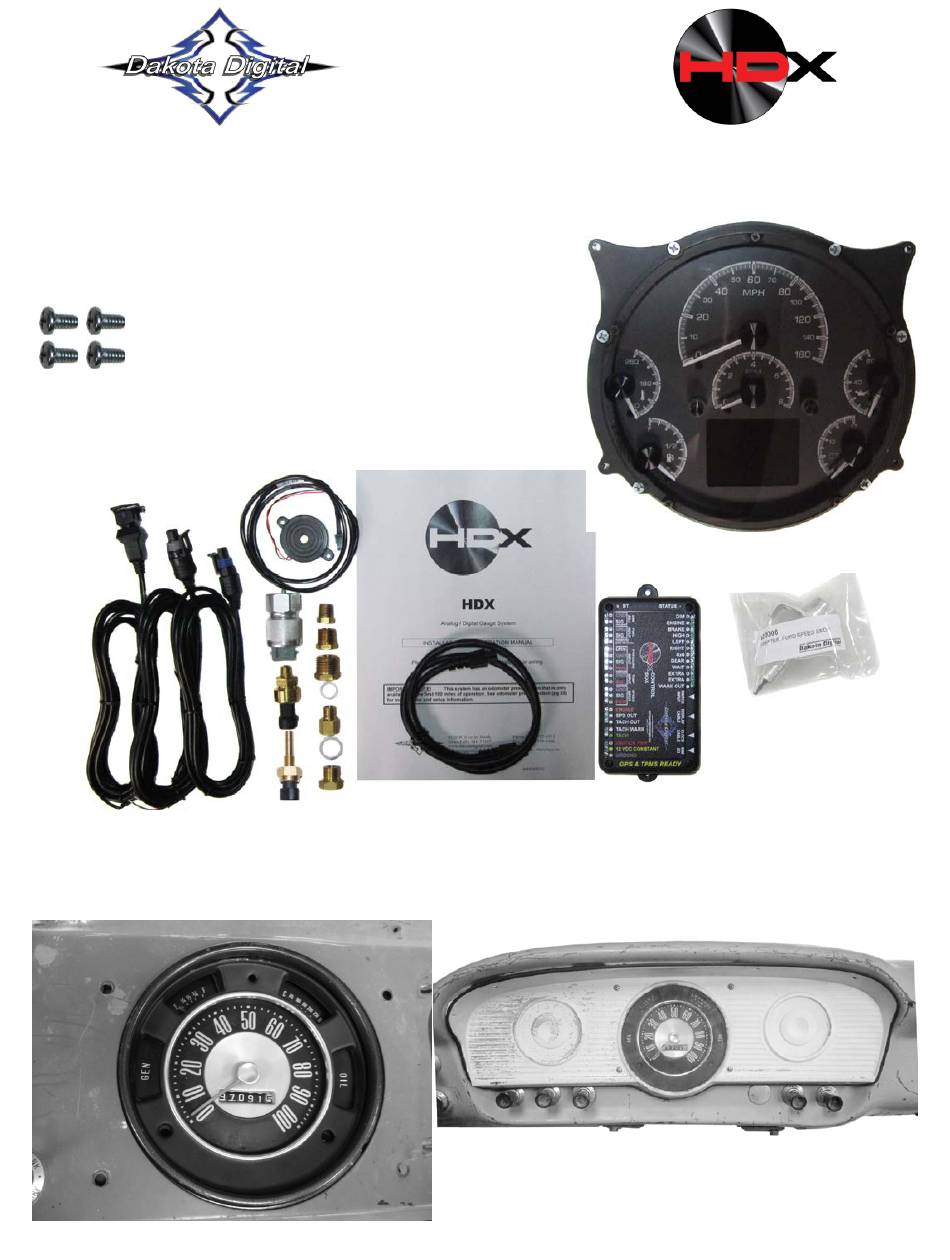

Your new HDX-66F-BRO kit includes:

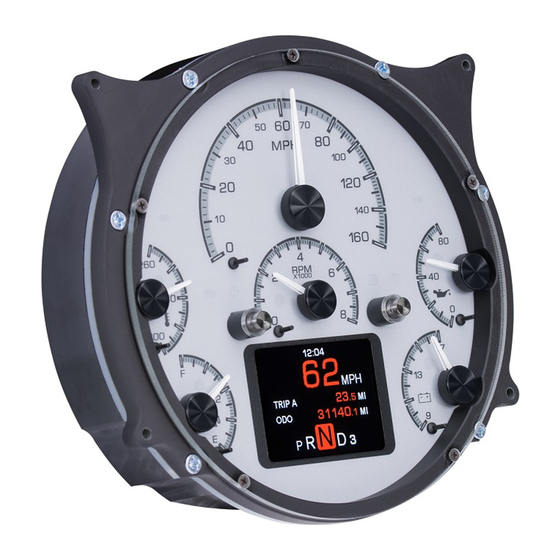

HDX Display
(4) ½" Screws
Universal Sender
Pack
Buzzer
Installation Manuals
Ford Speed Adapter
Control Box
Main Harness
Installation
1. Remove the stock gauge cluster from the dash.
Manual # 650579A
Advertisement
Related Manuals for Dakota Digital HDX-66F-BRO
Summary of Contents for Dakota Digital HDX-66F-BRO
- Page 1 HDX-66F-BRO Dakota Digital HDX Instrument Installation For 1966-‘77 Ford Bronco For 1961-‘66 Ford Pickup Your new HDX-66F-BRO kit includes: HDX Display (4) ½” Screws Universal Sender Pack Buzzer Installation Manuals Ford Speed Adapter Control Box Main Harness Installation 1. Remove the stock gauge cluster from the dash.
- Page 2 2. Remove these four screws to separate the bezel from the gauges. 3. The only part that will be re-used is the stamped bezel and the screws that mount the bezel. Manual # 650579A...
- Page 3 4. Secure the HDX system to the bezel with the four supplied screws. The HDX system should align tightly and sit flush with the bezel. 5. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the HDX system.
- Page 4 6. Re-install the cluster into the vehicle and refer to the main manual for wiring instructions to complete the HDX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650579A...
