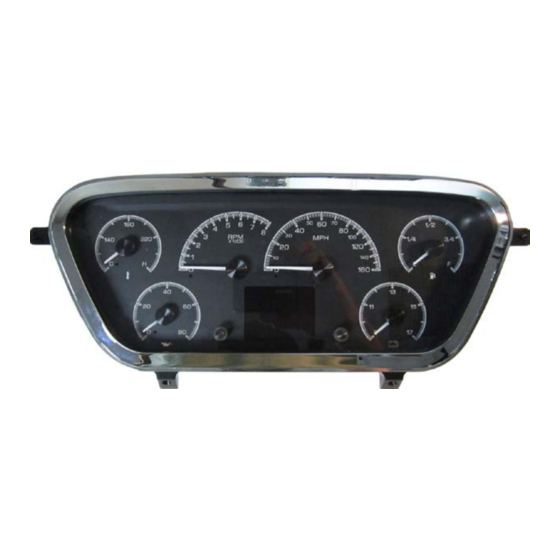

HDX-53F-PU
Dakota Digital HDX Instrument Installation
For 53-55 Ford Pickup

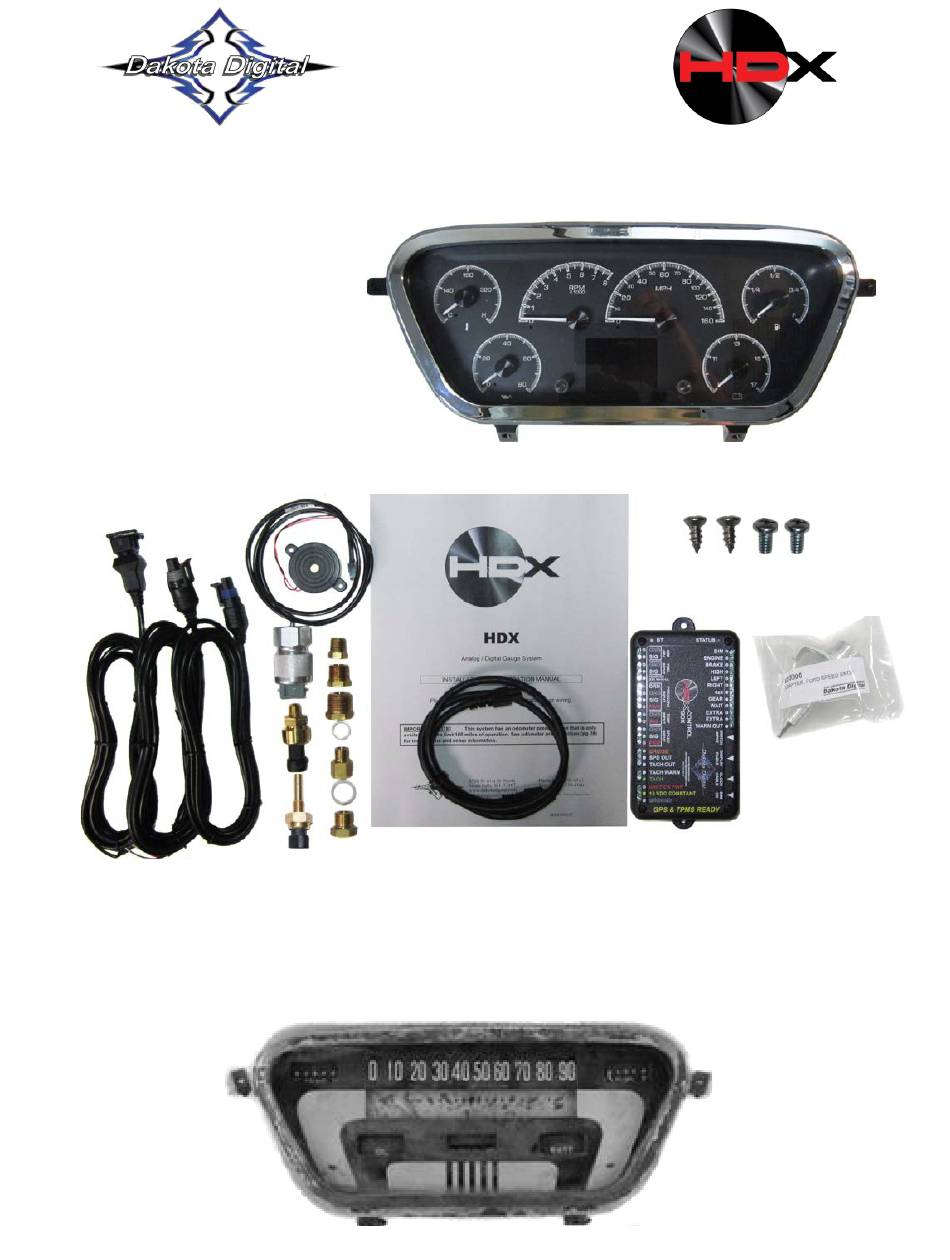

Your new HDX-53F-PU kit includes:
HDX Display
Buzzer
Installation Manuals
Universal Sender
Mounting screws
Pack
Ford Speed Adapter
Control Box
Main Harness
Installation
1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the
dash.
Manual # 650608A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital HDX-53F-PU
Summary of Contents for Dakota Digital HDX-53F-PU
- Page 1 HDX-53F-PU Dakota Digital HDX Instrument Installation For 53-55 Ford Pickup Your new HDX-53F-PU kit includes: HDX Display Buzzer Installation Manuals Universal Sender Mounting screws Pack Ford Speed Adapter Control Box Main Harness Installation 1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the dash.
- Page 2 2. From the rear of the dash; insert the HDX system into the opening and securely mount using the four 10-18x.5” screws provided. The two (2) counter sunk screws are for the upper two locations and the two (2) pan heads are for the lower two locations. 3.
