Dakota Digital HDX-61C-IMP Instrument Installation

For 1961-62 chevy impala

HDX-61C-IMP

Dakota Digital HDX Instrument Installation

For 1961-'62 Chevy Impala

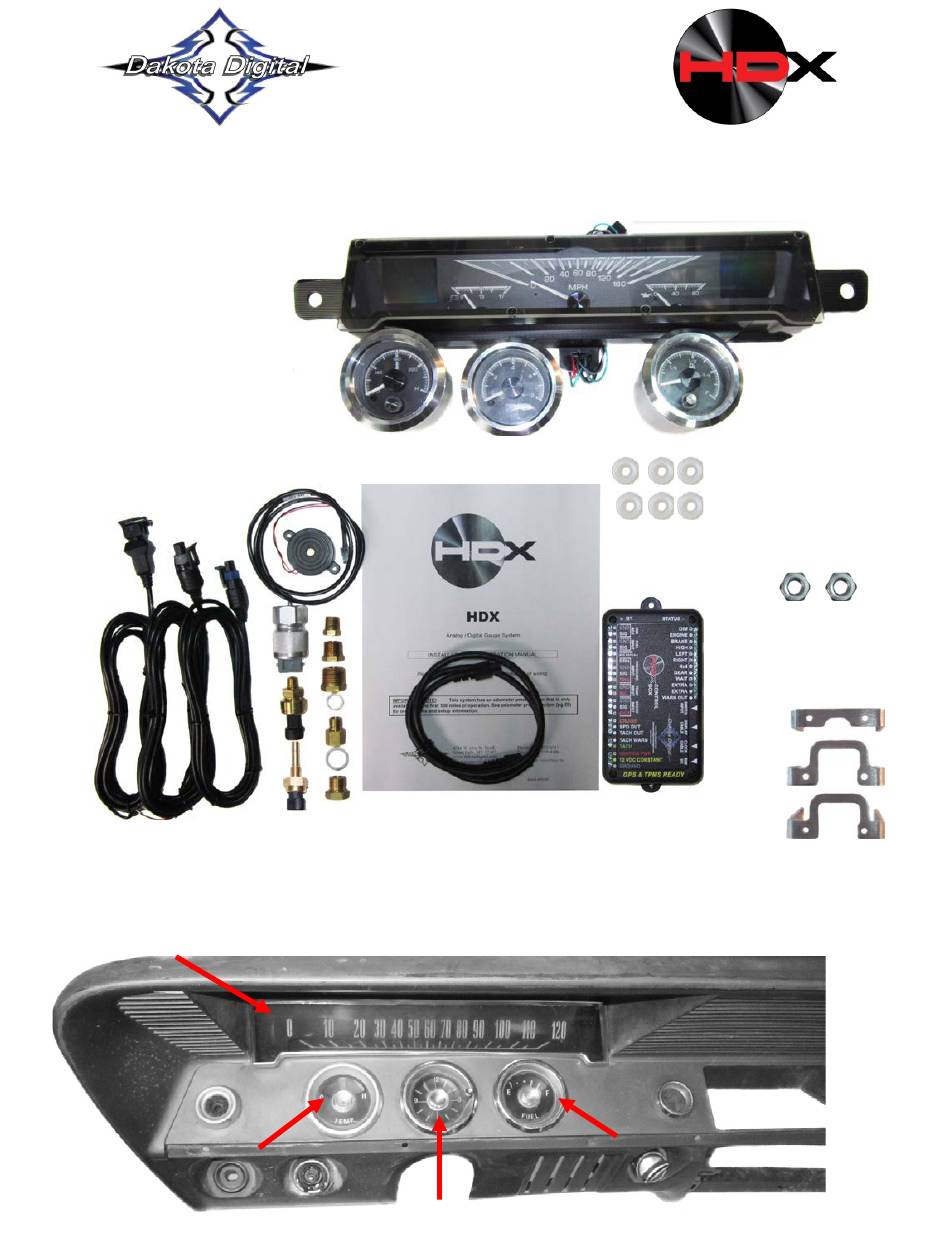

Your new HDX-61C-IMP kit includes:

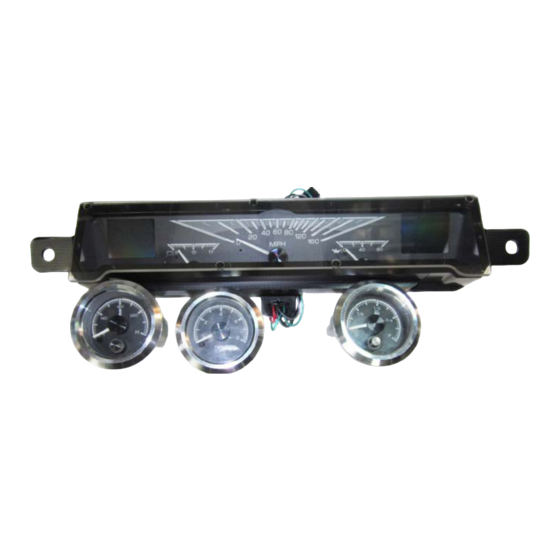

HDX Display

Universal Sender

Pack

Buzzer

Installation Manuals

(6) Thumb Nuts

(2) ¼-20 Nuts

Control Box

Main Harness

(3) U-Brackets

1. Remove the stock gauges from the dash. The thin bezel around the main gauge will remain in place.

Manual # 650601A

Table of Contents

Do you have a question about the HDX-61C-IMP and is the answer not in the manual?

Page 1 HDX-61C-IMP Dakota Digital HDX Instrument Installation For 1961-‘62 Chevy Impala Your new HDX-61C-IMP kit includes: HDX Display Universal Sender Pack Buzzer Installation Manuals (6) Thumb Nuts (2) ¼-20 Nuts Control Box Main Harness (3) U-Brackets Installation 1. Remove the stock gauges from the dash. The thin bezel around the main gauge will remain in place.
Page 2 2. Insert the three auxiliary gauges from the front of the dash; from left to right: Temp, Tach, and Fuel. Use the two longer brackets for the Temp and Fuel; the Tach uses the shorter bracket. Use the supplied thumb nuts to secure the gauge to the dash while making sure each gauge is properly orientated.
Page 3 5. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the HDX system. Buzzer Connector 6. Refer to the main manual for wiring instructions to complete the HDX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
