Dakota Digital HDX-58C-IMP Instrument Installation

For 1958 impala

Table of Contents

Download this manual

HDX-58C-IMP

Dakota Digital HDX Instrument Installation

For 1958 Impala

Your new HDX-58C-IMP kit includes:

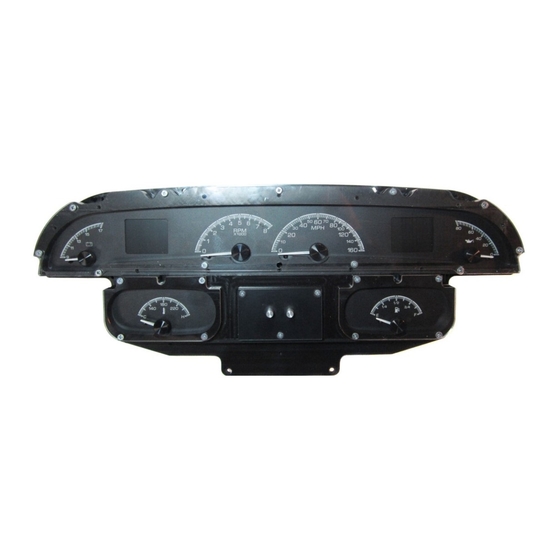

HDX Display

Block off Lens

Buzzer

Universal Sender

Installation Manuals

Pack

(8x) 8-32 x

1/2" Screws

Control Box

Main Harness

Installation

1. Remove the stock gauge cluster from the dash.

Manual # 650649

Table of Contents

Do you have a question about the HDX-58C-IMP and is the answer not in the manual?

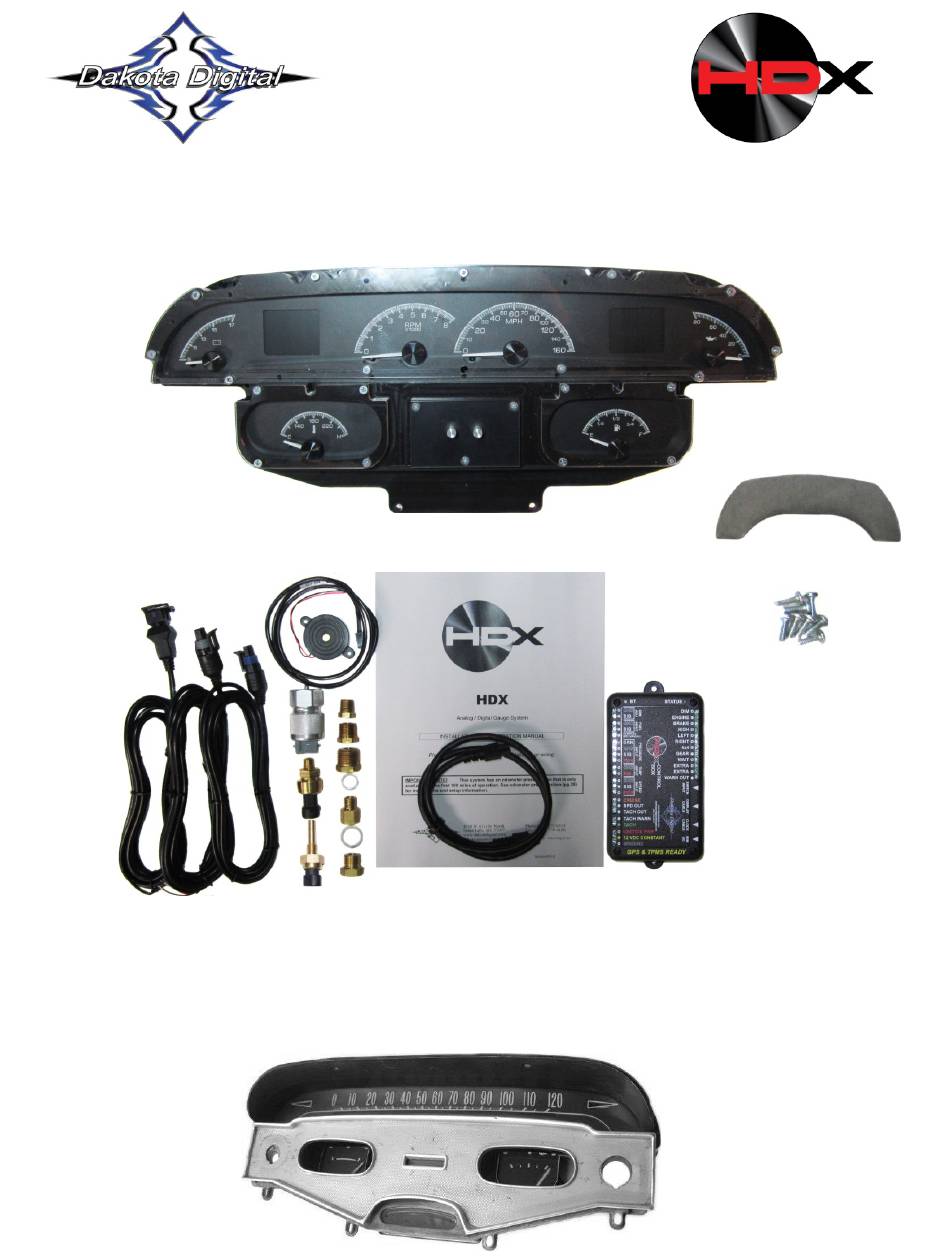

Page 1 HDX-58C-IMP Dakota Digital HDX Instrument Installation For 1958 Impala Your new HDX-58C-IMP kit includes: HDX Display Block off Lens Buzzer Universal Sender Installation Manuals Pack (8x) 8-32 x 1/2” Screws Control Box Main Harness Installation 1. Remove the stock gauge cluster from the dash.
Page 2 2. Remove the stock gauge housing from the bezel by removing the (8) eight screws on the rear of the metal housing. The only item to be reused is the original front bezel; the other pieces can be discarded. Now is a good time to clean or refinish the bezel. 3.
Page 3 4. Secure the HDX system to the bezel by using the (8) eight supplied ½” screws. Watch carefully as you insert the system so you don’t scratch or damage the lens or switch buttons. 5. Connect the provided harness and the buzzer (optional for audio feedback) to the back of the HDX system.
Page 4 8. With the lower dash bezel already out, remove the two mounting screws to remove the indicator plate and lens. 9. Peel off the protective paper and lay the block off lens flat in the gear indicator opening. Use silicone to adhere the lens to the lower dash bezel. 10.
