5. LOOSEN WEDGE NUT BY TURNING THE CAP BOLT ON THE TOP OF THE HANDLEBAR COUNTERCLOCKWISE FOR
1 – 2 ROTATIONS WITH THE 6MM ALLEN KEY.
6. POSITION THE HANDLEBAR ABOVE THE HEAD TUBE WITH THE HANDLEBAR POST IN LINE WITH THE STEM
AND THE HANDBRAKE ON THE LEFT SIDE. TAKE CARE THAT THE BRAKE CABLE IS IN FRONT OF, NOT BEHIND,
THE HANDLEBAR.
7. SQUEEZING AND MANIPULATING THE WEDGE NUT SO THAT IT FITS, SLIDE THE HANDLEBAR POST ALL THE WAY
INTO THE HEAD TUBE.
NOTE: IF THE WEDGE NUT DOES NOT FIT INSIDE THE HOLE OF THE HEAD TUBE, YOU MAY NEED TO LOOSEN
THE CAP BOLT FURTHER.

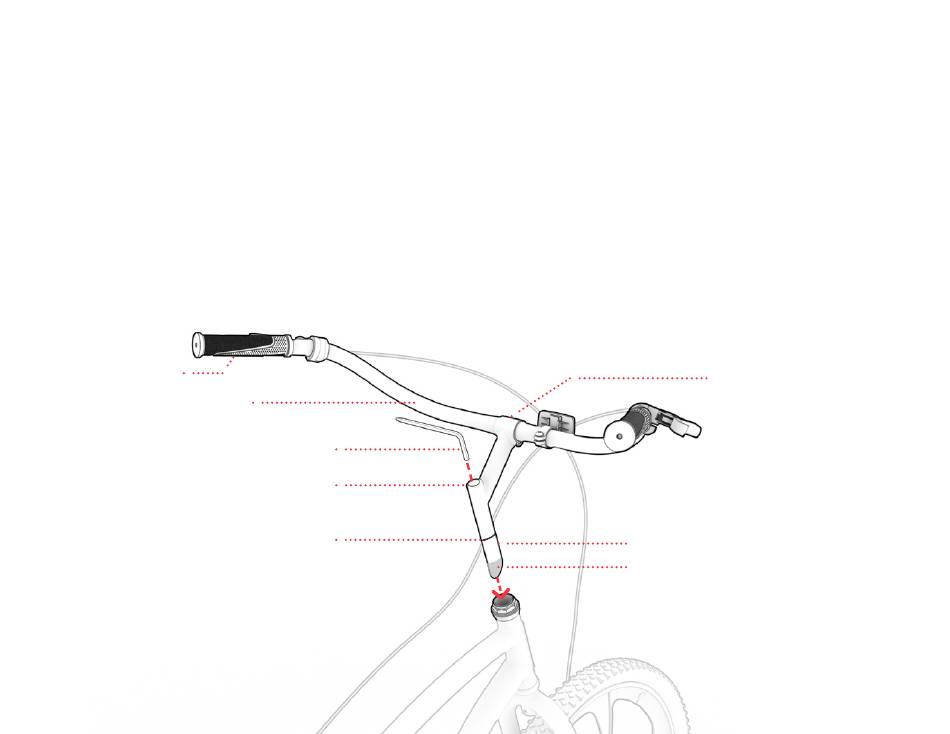

HAND GRIP
HANDLEBAR
6MM ALLEN KEY
"MINIMUM INSERTION" MARK
CAP BOLT
HANDLEBAR CLAMP
STEM
WEDGE NUT
