Attaching the Pedals

1.7
YOU WILL NEED THE 15MM WRENCH.
1. NOTE THE "R" AND "L" MARKINGS ON THE END OF SPINDLE OF
EACH PEDAL, INDICATING "RIGHT" AND "LEFT."
2. ALIGN THE SPINDLE ON "L" PEDAL WITH THE HOLE AT THE END
OF THE CRANK ARM ON THE SIDE OF THE BIKE WHERE YOU
WILL PEDAL WITH YOUR RIGHT FOOT.
3. HOLD THE PEDAL BASE STEADY AND, TAKING CARE THAT THE
SPINDLE ENTERS THE HOLE STRAIGHT, USE YOUR OTHER
HAND TO TWIST THE SPINDLE COUNTERCLOCKWISE INTO
THE HOLE FOR A FEW ROTATIONS.

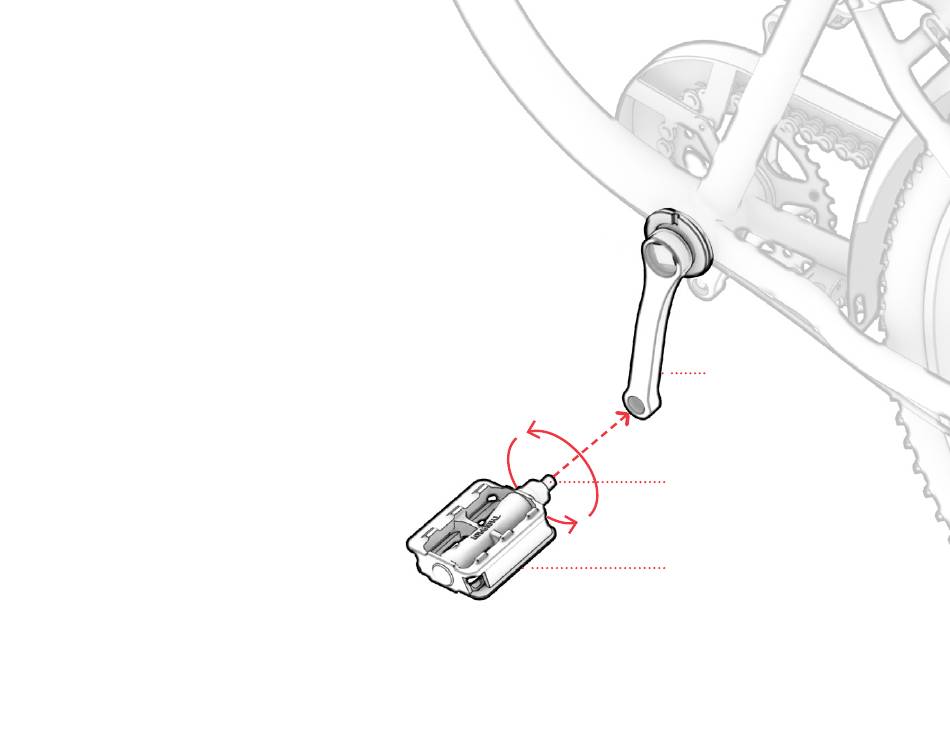

CRANK ARM
SPINDLE
PEDAL (L)
