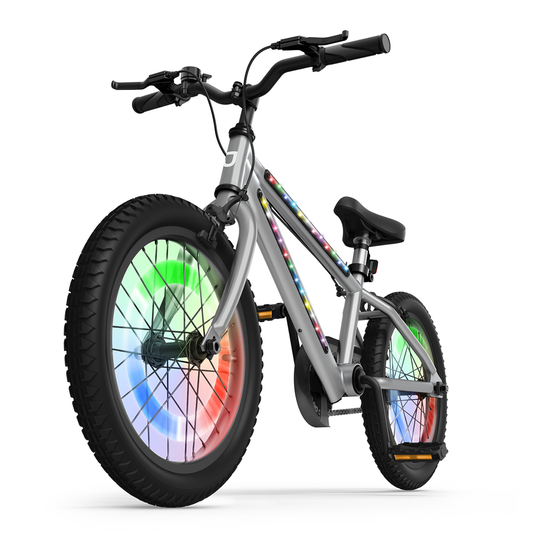

JLR X Light-Up Kids Bicycle.
A guide for your ride.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
MODEL: JECT20-BLK | JECT20-CHR
Designed in Brooklyn | Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JLR X Light-Up and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jetson JLR X Light-Up

Summary of Contents for Jetson JLR X Light-Up

  • Page 1 JLR X Light-Up Kids Bicycle. A guide for your ride. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY MODEL: JECT20-BLK | JECT20-CHR Designed in Brooklyn | Made in China...
  • Page 3 Remember to be safe and, most importantly, have fun!

  • Page 5: Table Of Contents

    Table of Contents Safety Warnings ........................7 Safety Checklist .......................11 What’s in the Box ..

  • Page 7: Safety Warnings

    Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;...
  • Page 8 Sudden or excessive application of the brake may result in injury or death. • If the brake loosens, please adjust with the hexagon wrench, or please contact Jetson Customer Care. • Replace worn or broken parts immediately.
  • Page 9 For more information go to www.p65warnings.ca.gov/product LIMITED LIFETIME WARRANTY Limited Life Time Warranty only applies to the Frame & Fork for manufacture defects. Contact Jetson Customer Care for detailed information via support.ridejetson.com Limited Lifetime Warranty does NOT cover: •...

  • Page 11: Safety Checklist

    Safety Checklist IT’S ALWAYS IMPORTANT TO DO A FEW IMPORTANT SAFETY CHECKS BEFORE EVERY RIDE. LET’S GO THROUGH THEM: BRAKES MAKE SURE BRAKES WORK PROPERLY. CHECK THAT THE BRAKE PADS ARE NOT WORN, AND ARE ALIGNED AND CENTERED CORRECTLY. CHECK THAT THE BRAKE CONTROL LEVERS ARE LUBRICATED, AND ARE SECURED TO THE HANDLEBAR. STEERING CHECK THAT THE HANDLEBAR AND STEM ARE ALIGNED WITH THE FORKS, AND ARE SECURELY TIGHTENED.

  • Page 12: What's In The Box

    What’s in the Box 1. BIKE FRAME, BACK WHEEL WITH REFLECTOR 2. FRONT WHEEL WITH REFLECTOR 3. HANDLEBAR, HAND BRAKES, & FRONT REFLECTOR 4. SEAT WITH BACK REFLECTOR 5. PEDALS (2X) 6. WHITE LED VALVE LIGHTS (2X) 7. MULTICOLOR LED VALVE LIGHTS (2X) TOOLS INCLUDED: DOUBLE-SIDED WRENCH ALLEN KEY...
  • Page 13 6 & 7...

  • Page 14: Specs & Features

    Specs & Features • PRODUCT DIMENSIONS: 54” × 23” × 32” • BRAKE TYPE: HAND BRAKE • PRODUCT WEIGHT: 25.5 LB • WEIGHT LIMIT: 150 LB • TIRE SIZE: 20 IN • RECOMMENDED AGE: 5-9 • BATTERY: 3AA Correct Frame Size inches FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN...

  • Page 15: Front Wheel Assembly

    1. Get Started Front Wheel Assembly LOOSEN NUTS ON BOTH SIDES OF THE WHEEL...
  • Page 16 FRONT FORK LEGS • PLACE WHEEL BETWEEN THE FRONT FORK LEGS • MAKE SURE THE WHEEL IS CENTERED AND THAT THE AXLE FITS INTO THE WEDGES OF THE FORK LEGS...
  • Page 17 WASHER HOOK CONNECTION TIGHTEN NUTS ON BOTH SIDES • CONNECT HOOK ON THE WASHER INTO THE HOLE ON AXLE • TIGHTEN NUT • REPEAT ON THE OTHER SIDE OF THE AXLE...

  • Page 18: Handlebar Assembly

    Handlebar Assembly • ADJUST HEIGHT TO SUIT THE SIZE OF THE RIDER • MAKE SURE THAT THE “MIN INSERTION” MARK IS NOT SHOWING PLACE HANDLEBAR INTO STEM POST...
  • Page 19 TIGHTEN CAP BOLT...
  • Page 20 TIGHTEN BOLT ON BOTH HAND BRAKES.
  • Page 21 SQUEEZE CALIPER ARMS UNTIL BOTH PADS ARE TOUCHING THE RIM PADS CALIPER ARMS...
  • Page 22 KEEPING THE CALIPER CLOSED, USE OTHER HAND TO PULL BRAKE CABLE WIRE TIGHT CABLE WIRE...
  • Page 23 CHECK THAT THE BRAKE CABLE IS CONNECTED TO THE BRAKE LEVER AND TO THE CABLE ADJUSTMENT BARREL BRAKE LEVER BRAKE CABLE CABLE ADJUSTMENT BARREL...
  • Page 24 WHILE STILL SQUEEZING CALIPER ARMS, TIGHTEN THE CABLE ANCHOR BOLT. CABLE ANCHOR BOLT...
  • Page 25 PRESSING BOTH BRAKE LEVERS, CHECK TO MAKE SURE BRAKES ARE WORKING PROPERLY.
  • Page 26 TIGHTEN BOLT BEFORE USE.
  • Page 27 TIGHTEN BOLT BEFORE USE.

  • Page 28: Inserting The Seat

    Inserting the Seat PLACE SEAT INTO SEAT POST...
  • Page 29 • ADJUST HEIGHT TO SUIT THE SIZE OF THE RIDER • MAKE SURE THAT THE “MIN INSERTION” MARK IS NOT SHOWING TIGHTEN & CLOSE SEAT CLAMP...
  • Page 30 MAKE SURE SEAT CLAMP IS SECURED AND SEAT IS STABLE...

  • Page 31: Pedals Assembly

    Pedals Assembly INSERT PEDAL MARKED “R” INTO THE RIGHT-HAND CRANK ARM...
  • Page 32 HAND TIGHTEN SPINDLE ON PEDAL MARKED “R” CLOCKWISE. REPEAT WITH PEDAL MARKED “L”, TIGHTENING IT COUNTER-CLOCKWISE.
  • Page 33 TIGHTEN ONCE BOTH PEDALS ARE ON, TIGHTEN WITH WRENCH. CAUTION: IT’S IMPORTANT TO STOP IF YOU FEEL RESISTANCE WHEN PUTTING ON THE PEDALS. IT COULD MEAN THE SPINDLE IS ENTERING THE CRANK ARM AT AN ANGLE.

  • Page 34: Battery Installation

    BATTERY COMPARTMENT 2. Light Assembly Battery Installation TWIST TO UNLOCK BATTERY COMPARTMENT. INSERT BATTERIES.
  • Page 35 TWIST RIGHT TO LOCK...

  • Page 36: Led Lights

    LED Lights • PRESS POWER BUTTON FOR 2 SECONDS TO CHANGE LIGHT MODE. • TO CHANGE THE COLOR PATTERN PRESS POWER BUTTON QUICKLY. • HOLD FOR 5 SECONDS TO TURN ON/OFF. PLEASE NOTE: TO CONSERVE BATTERY POWER, LIGHTS WILL AUTOMATICALLY TURN OFF AFTER 10 MINUTES.

  • Page 37: Wheel Lights

    VALVE LED LIGHT Wheel Lights TO ACTIVATE VALVE LIGHT: • SCREW OFF TOP OF VALVE LIGHT. • REMOVE PAPER COVERING 3 BATTERIES (AG10, 1.5V). • SCREW BACK ON TOP OF VALVE LIGHT.
  • Page 38 WHEEL LIGHTS WILL TURN ON WHEN BIKE IS IN MOTION.

  • Page 39: Operating The Brake

    3. Make Moves Operating the Brake TO OPERATE BRAKES, SQUEEZE SIMULTANEOUSLY BOTH BRAKE LEVERS ON FRONT OF HANDLEBARS. NOTE: THE HARDER YOU SQUEEZE, THE QUICKER YOU WILL BRAKE. BRAKING TOO QUICKLY CAN CAUSE ACCIDENTS. BRAKE LEVER...

  • Page 40: Helmet Safety

    Helmet Safety THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. COULD CAUSE SERIOUS INJURY.

  • Page 41: Riding The Jlr X

    Riding the JLR X NOW YOU HAVE YOUR JLR X SAFELY ASSEMBLED, IT’S TIME TO RIDE OUT AND LIGHT UP THE WORLD. PLEASE NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.

  • Page 42: Care & Maintenance

    • Avoid intense physical impact and / or severe vibration. • Protect from water or moisture. • Do not disassemble. • If there are any issues with the battery, please contact Jetson Customer Care. We’d love to help! STORAGE • Remove batteries before storing.
  • Page 43 ALWAYS CHECK THE BRAKES BEFORE RIDING: Check that the brake pads are aligned correctly. If they are not, loosen pads and place into correct position. Incorrect Alignment: Correct Alignment: Check that the brake pads are centered correctly. To do this, check that there is even gap between the rim, fork and brake pads.
  • Page 44 Enjoying the ride? Leave a review on ridejetson.com/reviews or share your photos with us online using the #RideJetson hashtag! Follow us @ridejetson #MakeMoves...
  • Page 46 Questions? Let us know. support.ridejetson.com Hours of Operation: 7 Days a Week, 10am-6pm Manufactured in Zhejiang, China Imported by Jetson Electric Bikes LLC. 86 34th Street 4th Floor, Brooklyn, New York 11232 www.ridejetson.com Made in China Date Code: 07/2021...
