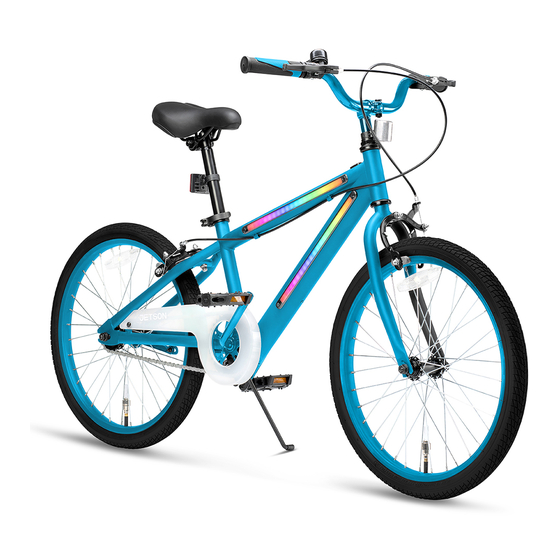

- Page 1 Light-Up Kids Bike. A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODELS: JLRX20-BLU | JLRX20-PNK | JLRX20-BOR | JLRX20-BNG JLRX20-BBL | JLRX20-BPK | JLRX20-BGR | JLRX20-PGL | JLRX20-NAV U.S. Patent No. 11,155,315 Designed in Brooklyn | Made in China...
- Page 3 Jetson's top two riding rules: Be safe. Have fun!
-
Page 5: Table Of Contents
Table of Contents Safety Warnings .......................4 Safety Checklist .......................7 What’s in the Box . -
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;... - Page 7 • Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or excessive application of the brake may result in injury or death. • If the brake loosens, please adjust with the hexagon wrench, or please contact the Jetson Care Team. • Replace worn or broken parts immediately.
- Page 8 All new Jetson products, excluding parts and accessories, are warranted against defects in materials and workmanship for a period of one year from the date of original retail purchase when used in accordance with Jetson's user manuals (refer to ridejetson.com/support).
-
Page 9: Safety Checklist
Safety Checklist BEFORE EVERY RIDE, CONDUCT THESE IMPORTANT SAFETY CHECKS. BRAKES • MAKE SURE BRAKES WORK PROPERLY. • CHECK THAT THE BRAKE PADS ARE NOT WORN, AND ARE ALIGNED AND CENTERED CORRECTLY. • CHECK THAT THE HANDBRAKES ARE LUBRICATED AND ARE SECURED TO THE HANDLEBAR. STEERING •... -
Page 10: What's In The Box
What’s in the Box 1. BIKE FRAME 2. FRONT WHEEL 3. FRONT REFLECTOR 4. HANDBRAKES 5. HANDLEBAR 6. BELL 7. SEAT 8. REAR WHEEL 9. REAR REFLECTOR 10. KICKSTAND 11. PEDALS (2X) TOOLS INCLUDED: DOUBLE-SIDED WRENCH ALLEN KEY * ADULTS MUST ASSIST CHILDREN IN THE ASSEMBLY AND INITIAL ADJUSTMENT PROCEDURES OF THE PRODUCT. -
Page 12: Specs & Features
Specs & Features • PRODUCT DIMENSIONS: 54” × 23” × 32” • BRAKE TYPE: HANDBRAKES • PRODUCT WEIGHT: 25.5 LBS • WEIGHT LIMIT: 150 LBS • TIRE SIZE: 20 IN • RECOMMENDED AGE: 5-9 • BATTERIES NEEDED: 3 AA (NOT INCLUDED) Correct Frame Size inches FOR SAFE AND COMFORTABLE RIDING, THERE SHOULD... -
Page 13: Front Wheel Assembly
1. Getting Started Front Wheel Assembly USING THE WRENCH, LOOSEN AND REMOVE NUTS AND WASHERS ON BOTH SIDES OF THE FRONT WHEEL AND SET ASIDE. - Page 14 FRONT FORK LEGS AXLE • PLACE WHEEL BETWEEN THE FRONT FORK LEGS SO THAT THE ARROW ON THE TIRE IS POINTING FORWARD. • MAKE SURE THE WHEEL IS CENTERED AND THAT THE AXLE FITS INTO THE WEDGES OF THE FORK LEGS.
- Page 15 WASHER HOOK HOLE TIGHTEN NUTS ON BOTH SIDES. • REPLACE THE WASHER, POSITIONING IT SO THAT ITS HOOK IS INSERTED IN THE HOLE ON THE FORK. • REPLACE NUT AND TIGHTEN USING WRENCH. • REPEAT ON THE OTHER SIDE OF THE FORK.
-
Page 16: Handlebar & Front Brake Assembly
Handlebar & Front Brake Assembly • USING THE WRENCH, LOOSEN THE CAP BOLT ON THE HANDLEBAR. • INSERT HANDLEBAR INTO STEM POST. • ADJUST HEIGHT TO SUIT THE SIZE OF THE RIDER. CAP BOLT PLACE HANDLEBAR INTO STEM POST. - Page 17 TIGHTEN CAP BOLT USING WRENCH.
- Page 18 USING ALLEN KEY, TIGHTEN BOLT ON BOTH HANDBRAKES.
- Page 19 • SQUEEZE CALIPER ARMS UNTIL BOTH PADS ARE TOUCHING THE RIM. CALIPER ARMS PADS...
- Page 20 • KEEPING THE CALIPER CLOSED, USE OTHER HAND TO PULL BRAKE CABLE WIRE TIGHT. CABLE WIRE...
- Page 21 • CHECK THAT THE FRONT WHEEL BRAKE CABLE IS CONNECTED TO THE HANDBRAKE AND TO THE CABLE ADJUSTMENT BARREL. HANDBRAKE BRAKE CABLE CABLE ADJUSTMENT BARREL...
- Page 22 • WHILE STILL SQUEEZING CALIPER ARMS, USE THE WRENCH TO TIGHTEN THE CABLE ANCHOR BOLT. CABLE ANCHOR BOLT...
- Page 23 • SQUEEZE BOTH HANDBRAKES TO MAKE SURE BRAKES ARE WORKING PROPERLY. (REFER TO PAGE 37 OF THIS MANUAL.)
- Page 24 TIGHTEN NUT BEFORE USE.
- Page 25 TIGHTEN BOLT BEFORE USE.
-
Page 26: Seat Assembly
Seat Assembly • OPEN THE SEAT CLAMP LEVER. • SLIDE THE SEAT INTO THE SEAT POST. • MAKE SURE THE SEAT IS INSERTED PAST THE MINIMUM INSERTION MARK SO THAT THE MARK IS NOT VISIBLE. • CLOSE THE SEAT CLAMP LEVER AND TIGHTEN THE CLAMP BY ROTATING THE KNOB ON THE CLAMP. PLACE SEAT INTO SEAT POST. - Page 27 • ADJUST HEIGHT TO SUIT THE SIZE OF THE RIDER. • CLOSE THE SEAT CLAMP LEVER AND TIGHTEN THE CLAMP BY ROTATING THE KNOB ON THE CLAMP. SEAT CLAMP LEVER CLAMP KNOB...
- Page 28 MAKE SURE SEAT CLAMP IS SECURED AND SEAT IS STABLE.
-
Page 29: Pedals Assembly
Pedals Assembly • SLIDE PEDAL MARKED "R" INTO THE RIGHT-HAND CRANK ARM. - Page 30 • HAND TIGHTEN SPINDLE ON PEDAL MARKED "R" BY ROTATING IT CLOCKWISE. • REPEAT WITH PEDAL MARKED "L", TIGHTENING IT BY ROTATING IT COUNTER-CLOCKWISE.
- Page 31 CAUTION: STOP TIGHTENING IF YOU FEEL RESISTANCE WHEN PUTTING ON THE PEDALS. IT COULD MEAN THE SPINDLE IS ENTERING THE CRANK ARM AT AN ANGLE. TIGHTEN • ONCE BOTH PEDALS ARE ON, TIGHTEN WITH WRENCH.
-
Page 32: Battery Insertion
BATTERY COMPARTMENT 2. Using the LED Lights Battery Insertion • GENTLY PUSH AND TWIST BATTERY COMPARTMENT COUNTER CLOCKWISE TO UNLOCK. • INSERT 3 AA BATTERIES. - Page 33 TWIST CLOCKWISE TO LOCK. • REINSERT BATTERY COMPARTMENT. GENTLY PUSH AND TWIST CLOCKWISE, UNTIL YOU FEEL THE BATTERY COMPARTMENT LOCK INTO PLACE.
-
Page 34: Activating The Lighting
Activating the Lighting • HOLD POWER BUTTON FOR 1 -2 SECONDS TO TURN ON/OFF. • HOLD LIGHTING MODE BUTTON FOR 3 SECONDS TO TOGGLE BETWEEN MULTIPLE LIGHTING PATTERNS. • TO CHANGE LIGHT COLORS WITHIN A LIGHTING PATTERN, QUICK-PRESS LIGHTING MODE BUTTON. PLEASE NOTE: TO PRESERVE BATTERY POWER, LIGHTS WILL AUTOMATICALLY TURN OFF AFTER 10 MINUTES. -
Page 35: Operating The Brake
3. Making Moves Operating the Brakes • TO OPERATE BRAKES AND DECELERATE SAFELY, SIMULTANEOUSLY SQUEEZE BOTH HANDBRAKES ON FRONT OF HANDLEBARS. NOTE: THE HARDER YOU SQUEEZE, THE QUICKER YOU WILL BRAKE. BRAKING TOO QUICKLY CAN CAUSE ABRUPT STOPS THAT COULD RESULT IN INJURY. FRONT BRAKE HANDBRAKE REAR BRAKE HANDBRAKE... -
Page 36: Helmet Safety
Helmet Safety PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. -
Page 37: Riding The Jlr
Riding the JLR X NOW THAT YOU HAVE YOUR JLR X SAFELY ASSEMBLED, IT’S TIME TO RIDE OUT AND LIGHT UP THE WORLD. PLEASE NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT. -
Page 38: Care & Maintenance
• Avoid intense physical impact and/or severe vibration. • Protect from water or moisture. • Do not disassemble. • If there are any issues with the battery, contact the Jetson Care Team. STORING THE JLR X • Remove batteries before storing. - Page 39 CHECKING THE BRAKES Check that the brake pads are in proper alignment and the brakes are functioning properly prior to every ride. To readjust alignment of the pads, loosen the bolts on the brake caliper, place the pads in the correct position, and re-tighten the bolts. Incorrect Alignment: Correct Alignment: Check that the brake pads are centered correctly.
- Page 40 Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you!
- Page 42 US/CANADA: 1-888-976-9904 MEX: +001 888 976 9904 UK: +44 (0)33 0838 2551 Manufactured in Zhejiang, China Imported by Jetson Electric Bikes LLC. P.O. Box 320149, 775 4th Ave #2, Brooklyn, NY 11232 www.ridejetson.com Made in China Date Code: 05/2022 Document Edition: v2.0...
