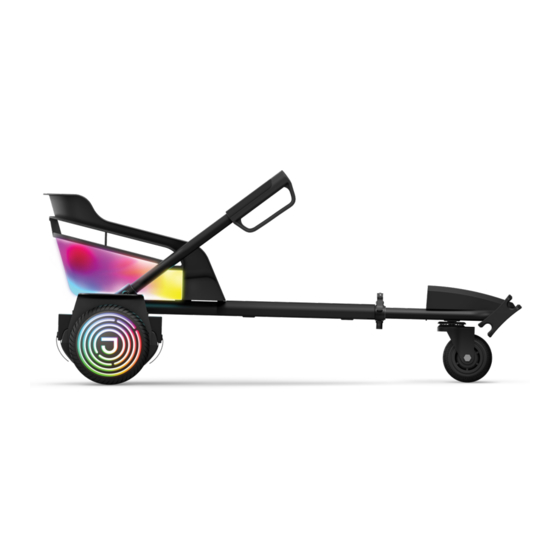

- Page 1 Alpha L Race Kart + All-Terrain Hoverboard. A guide for your ride. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY MODEL: JALPHA-BLK Designed in Brooklyn | Made in China...
- Page 3 Remember to be safe and, most importantly, have fun!
-
Page 5: Table Of Contents
Table of Contents Safety Warnings .......................4 What’s in the Box .......................6 Specs &... -
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;... - Page 7 For more information go to www.p65warnings.ca.gov/product MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from Jetson Customer Care. This will void any warranty, and can lead to malfunctions which may cause injury.
-
Page 8: What's In The Box
What’s in the Box 1. FRAME 2. SEAT 3. CUSHION 4. HOVERBOARD 5. BRACKET (2X) 6. VELCRO STRAP (2X) 7. FOOTREST (2X) 8. NOSE CAP HARDWARE / TOOLS INCLUDED: A (6X) B (4X) C (4X) D (4X) E (4X) WRENCH SCREW *ADULTS MUST ASSIST CHILDREN IN THE INITIAL ADJUSTMENT PROCEDURES OF THE PRODUCT. - Page 9 PLEASE NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.
-
Page 10: Specs & Features
Specs & Features ALPHA L: • WEIGHT LIMIT: 220 LB • PRODUCT WEIGHT: 16 LB • RECOMMENDED AGE: 12+ • TIRE SIZE: 4” • DIMENSIONS: 47.3” (L) × 22.8” (W) × 15.3” (H) HOVERBOARD: • MAX SPEED: UP TO 9 MPH •... -
Page 12: Attaching The Seat
1. Get Started Attaching the Seat BOLT • PLACE SEAT ON TOP OF ALPHA L’S FRAME. ALIGN SCREW HOLES IN SEAT WITH SCREW HOLES ON FRAME. • SCREW BOLTS THROUGH SEAT AND FRAME. • ON THE UNDERSIDE OF THE FRAME THREAD WASHER AND NUTS ONTO BOLTS AND TIGHTEN. - Page 13 • MAKE SURE SEAT IS SECURELY ATTACHED.
-
Page 14: Attaching The Cushion
Attaching the Cushion • TEAR OFF THE WHITE PROTECTIVE PAPER ON THE UNDERSIDE OF CUSHION. CUSHION PROTECTIVE PAPER... - Page 15 • CAREFULLY PLACE THE CUSHION TO THE SEAT GLUE SIDE DOWN.
- Page 16 • MAKE SURE CUSHION IS SECURELY ATTACHED TO THE SEAT.
-
Page 17: Inserting The Brackets
Inserting the Brackets • INSERT RIGHT BRACKET INTO RIGHT SIDE OF THE REAR HORIZONTAL AXIS. • SCREW BRACKET IN PLACE USING BOLT AND WASHER. • INSERT LEFT BRACKET INTO LEFT SIDE OF THE REAR HORIZONTAL AXIS. • SCREW BRACKET IN PLACE USING BOLT AND WASHER. BOLT WASHER... - Page 18 • MAKE SURE BRACKETS ARE SECURELY ATTACHED.
-
Page 19: Attaching The Nose Cap
Attaching the Nose Cap NOSE CAP • SNAP NOSE CAP ONTO FRONT PLATE OF ALPHA L. •SCREW NOSE CAP INTO PLACE VIA THE UNDERSIDE OF THE FRAME. NOTE: DO NOT OVERTIGHTEN THE NOSE CAP. DOING SO MAY CAUSE THE NOSE CAP TO CRACK. - Page 20 • MAKE SURE IT IS SECURELY ATTACHED.
-
Page 21: Inserting The Footrests
Inserting the Footrests • INSERT FOOTREST INTO EACH SIDE OF THE FRONT TUBE ON THE ALPHA L FRAME. • ALIGN FOOTREST WITH SCREW HOLES ON THE FRONT TUBE. • USING THE SMALL SCREW SUPPLIED, SCREW PEDALS IN PLACE. FOOTREST... - Page 22 • MAKE SURE FOOTREST ARE SECURELY IN PLACE.
-
Page 23: Attaching The Hoverboard
HOVERBOARD Attaching the Hoverboard • PLACE ALPHA L ON TOP OF HOVERBOARD. MAKE SURE HOVERBOARD IS TURNED OFF WHEN DOING THIS. VELCRO STRAPS... - Page 24 PULL THE VELCRO STRAPS TIGHT AND FOLD.
- Page 25 • MAKE SURE HOVERBOARD IS SECURELY IN PLACE.
-
Page 26: Indicator Lights
Indicator Lights BATTERY INDICATOR LIGHT STATUS INDICATOR LIGHT BATTERY INDICATOR LIGHT PERCENTAGE < 20% 20-49% 50% + WARNING: THE HOVERBOARD WILL AUTOMATICALLY SLOW DOWN AND LEAN UP ONCE THE BATTERY POWER GOES BELOW 10% AS A SAFETY PRECAUTION. STATUS INDICATOR LIGHT STATUS LIGHTS UP BLUE WHEN YOU STEP RECALIBRATE YOUR... -
Page 27: Connecting To Bluetooth
THE BLUETOOTH® WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY THE BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY JETSON ELECTRIC BIKE LLC. IS UNDER LICENSE. OTHER TRADEMARKS AND TRADE NAMES ARE THOSE OF THEIR RESPECTIVE OWNERS. -
Page 28: Recalibrating The Hoverboard
Recalibrating the Hoverboard HOLD POWER BUTTON FOR 5 SECONDS • PLACE POWERED OFF HOVERBOARD ON A FLAT SURFACE. HOLD THE POWER BUTTON FOR 5 SECONDS UNTIL TUNE IS COMPLETED. • LET GO OF POWER BUTTON AND THEN PRESS IT AGAIN TO TURN HOVERBOARD OFF. •... -
Page 29: Turning The Lights On
CHARGING PORT REAR SEAT WIRE Turning the Lights On 1.10 • CONNECT THE REAR SEAT WIRE TO THE HOVERBOARD’S CHARGING PORT. • POWER ON THE HOVERBOARD – THE LIGHTS WILL TURN ON ONCE THE HOVERBOARD AND THE SEAT WIRE ARE PLUGGED IN. -
Page 30: Getting On The Alpha L
2. Make Moves Getting on the Alpha L • PLACE THE ALPHA L ON A FLAT SURFACE WITH THE HOVERBOARD TURNED OFF. • CAREFULLY SIT IN ALPHA L PLACING YOUR FEET ON THE FOOTREST. • MAKE SURE THE HOVERBOARD IS LEVELED. •... -
Page 31: Riding The Alpha L
Now for the fun part. Riding the Alpha L. NOTE: TIGHTEN ALL SCREWS AND LOCKING NUTS BEFORE EACH RIDE. TO GO FORWARD - PUSH DOWN BOTH HANDLES TO BRAKE / REVERSE - PULL UP BOTH HANDLES TO TURN RIGHT – PUSH DOWN LEFT HANDLE, TO TURN LEFT –... -
Page 32: Riding The Hoverboard
Riding the Hoverboard NEUTRAL TURN LEFT TURN RIGHT... -
Page 33: Care & Maintenance
• AVOID INTENSE PHYSICAL SHOCK, SEVERE VIBRATION, OR IMPACT. • PLEASE RIDE THE ALPHA L ON A SMOOTH, FLAT SURFACE. • PROTECT FROM WATER OR MOISTURE. • CONTACT JETSON CUSTOMER CARE IF THERE ARE ANY ISSUES WITH THE ALPHA L. - Page 34 Enjoying the ride? Leave a review on ridejetson.com/reviews or share your photos with us online using the #RideJetson hashtag! Follow us @ridejetson #MakeMoves...
- Page 36 Questions? Let us know. support.ridejetson.com Hours of Operation: 7 Days a Week, 10am-6pm Imported by Jetson Electric Bikes LLC. 86 34th Street 4th Floor, Brooklyn, New York 11232 www.ridejetson.com Made in China Date Code: 05/2021...
