The same physical drives may also be arranged into separate arrays, as
illustrated in Figure E-4. Both arrays can be handled by the same controller.
Drive 1
Drive Array 1
Daz-9-17.EPS

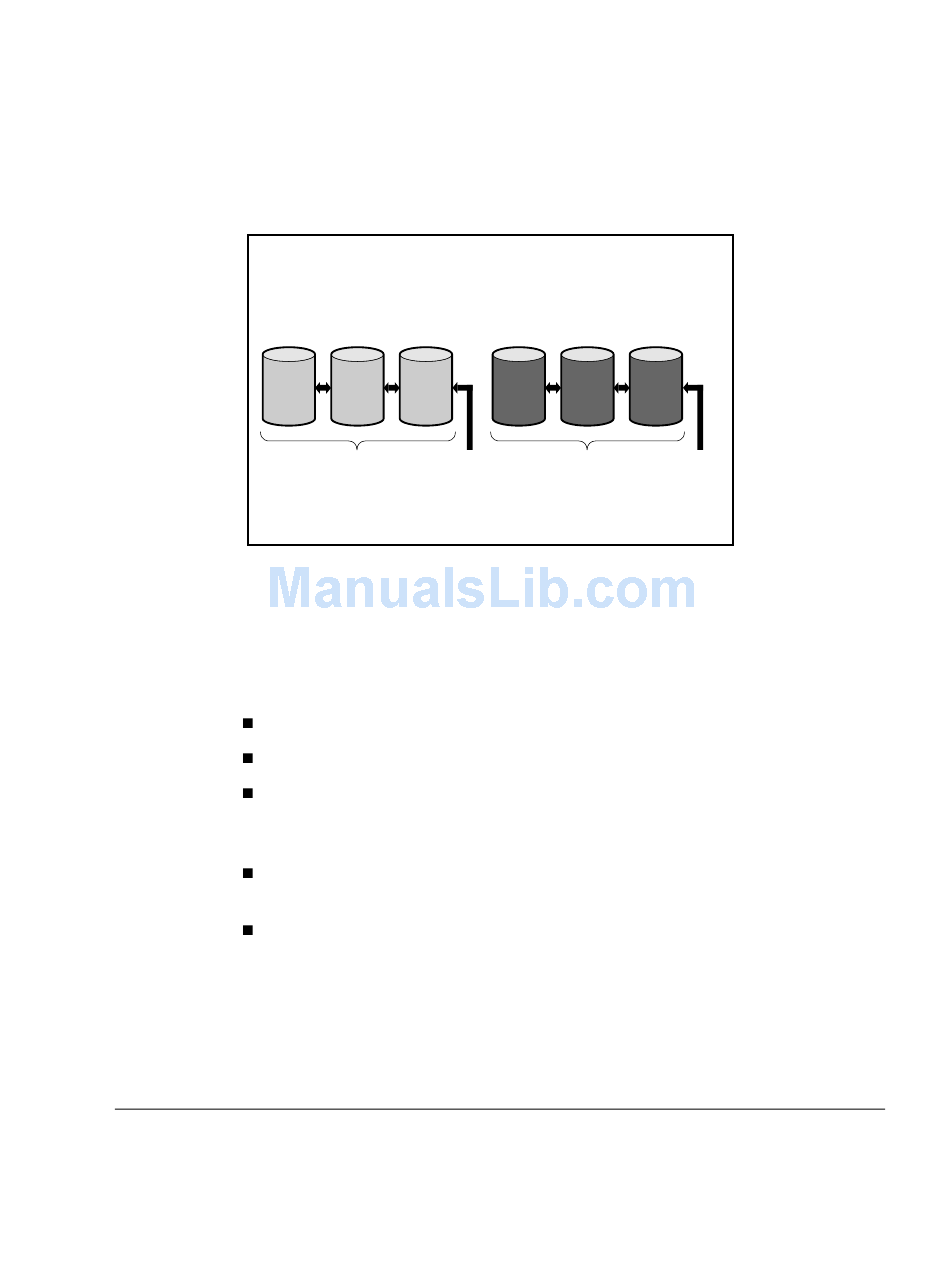

Figure E-4. Two drive arrays with six physical drives
Drive Arrays
Important drive array characteristics of the Smart Array 3200 Controller
include:
A single array cannot span more than one Smart Array 3200 Controller.
A single Smart Array 3200 Controller can control multiple arrays.
Arrays must have at least one physical drive and may have up to 30
physical drives. (The maximum number of drives is limited to the
number of drives that can be installed with the controller.)
Arrays consist of at least one logical drive and may have up to 32 logical
drives (maximum 32 logical drives per controller).
For maximum space efficiency, all drives in a single array should be the
same capacity.
Writer: Rickard Project: Compaq Smart Array 3200 Controller Reference Guide Comments: 340862-002
File Name: L-APPE.DOC Last Saved On: 12/7/98 9:30 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Physical Drives
Drive 2
Drive 3
Drive 4
Logical
Drive 1
Drive 5
Drive 6
Drive Array 2
Logical
Drive 2
Compaq Smart Array 3200 Controller Reference Guide
E-3
