6.3
Connection

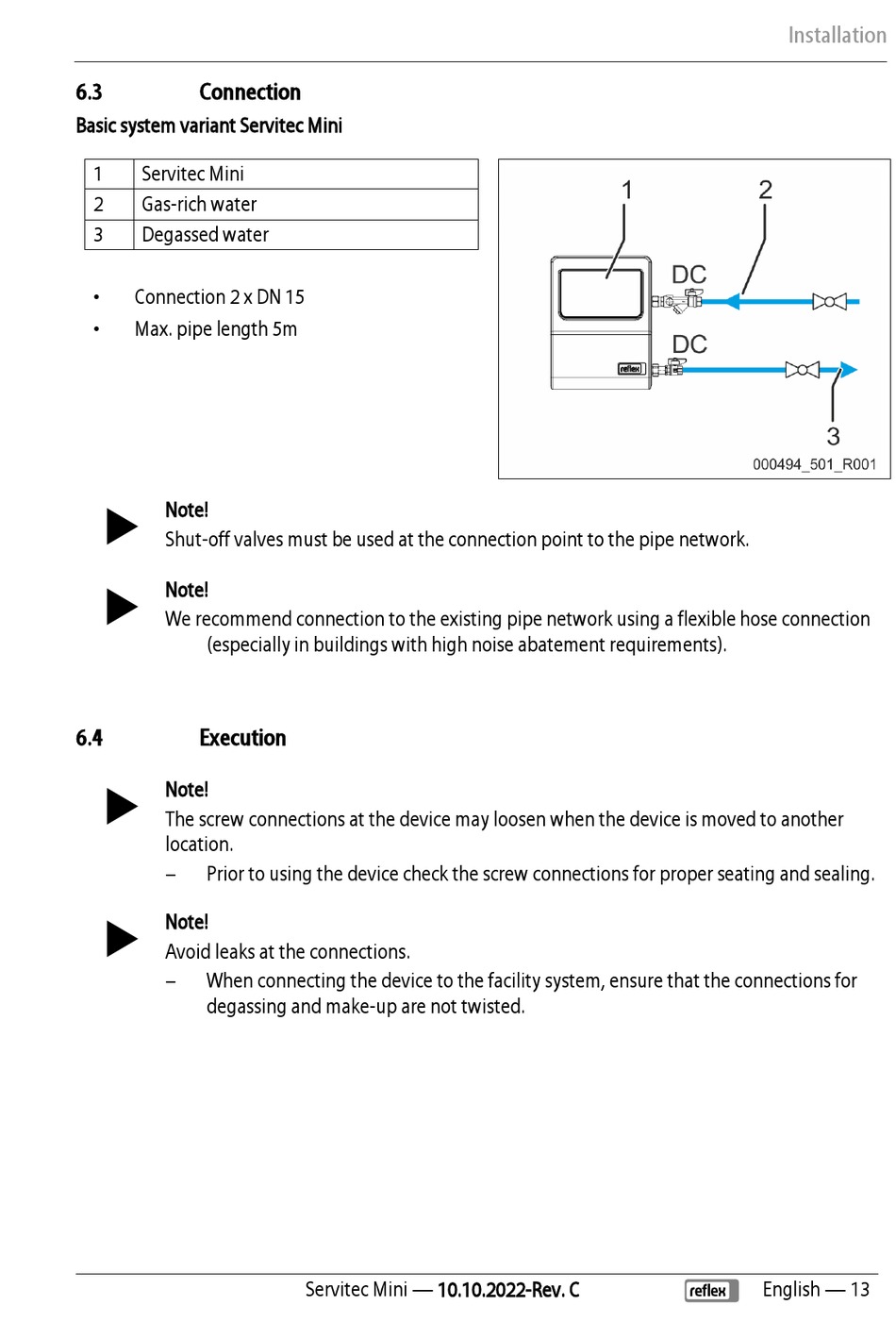

Basic system variant Servitec Mini
1
Servitec Mini
2
Gas-rich water
3
Degassed water
•
Connection 2 x DN 15
•
Max. pipe length 5m
Note!
Shut-off valves must be used at the connection point to the pipe network.
Note!
We recommend connection to the existing pipe network using a flexible hose connection
(especially in buildings with high noise abatement requirements).
6.4
Execution
Note!
The screw connections at the device may loosen when the device is moved to another
location.
–
Prior to using the device check the screw connections for proper seating and sealing.
Note!
Avoid leaks at the connections.
–
When connecting the device to the facility system, ensure that the connections for
degassing and make-up are not twisted.
Servitec Mini — 10.10.2022-Rev. C
Installation
English — 13
