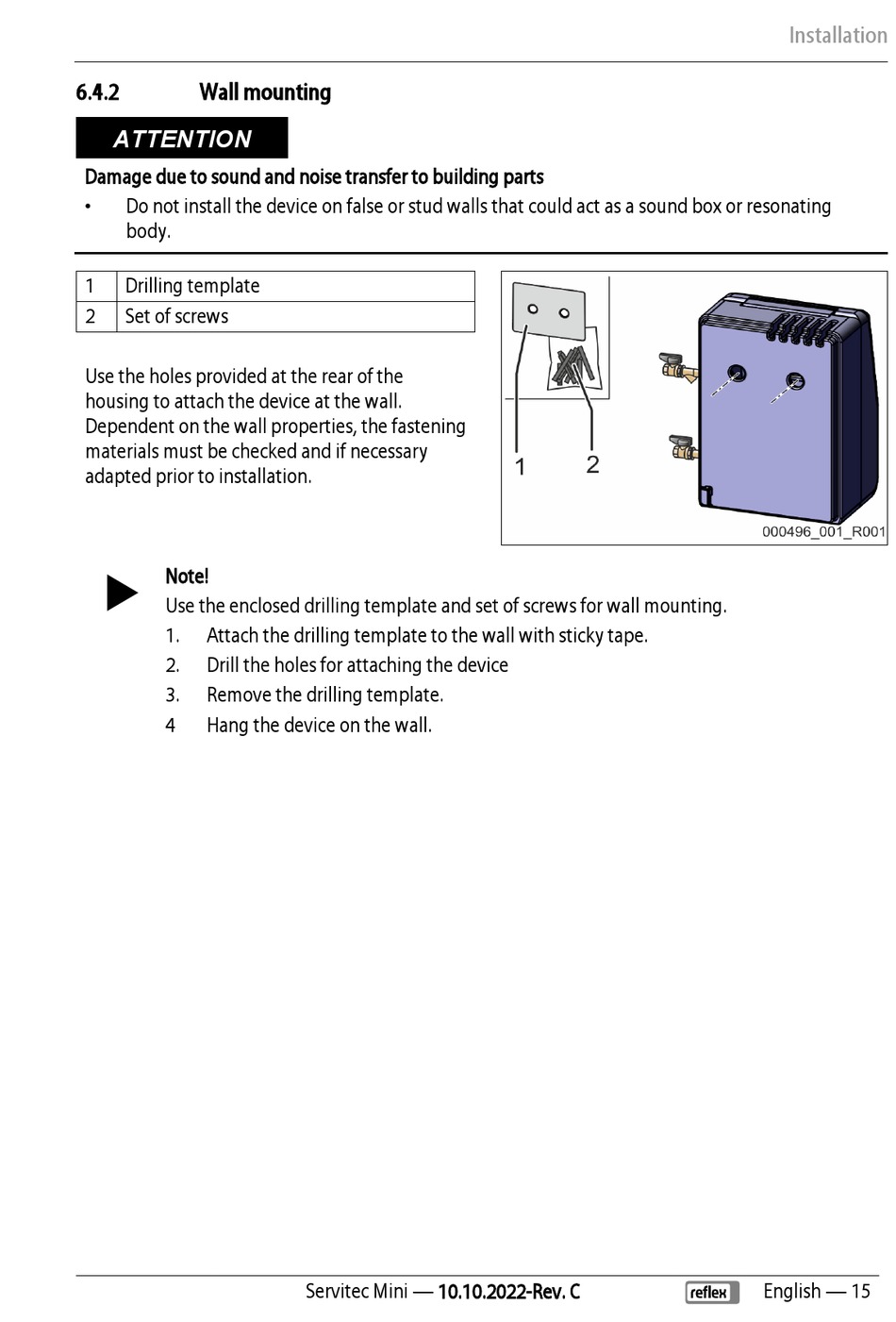

6.4.2
Wall mounting
ATTENTION
Damage due to sound and noise transfer to building parts
•
Do not install the device on false or stud walls that could act as a sound box or resonating
body.
1
Drilling template
2
Set of screws
Use the holes provided at the rear of the
housing to attach the device at the wall.
Dependent on the wall properties, the fastening
materials must be checked and if necessary
adapted prior to installation.
Note!
Use the enclosed drilling template and set of screws for wall mounting.
1.
Attach the drilling template to the wall with sticky tape.
2.
Drill the holes for attaching the device
3.
Remove the drilling template.
4
Hang the device on the wall.
Servitec Mini — 10.10.2022-Rev. C
Installation
English — 15
