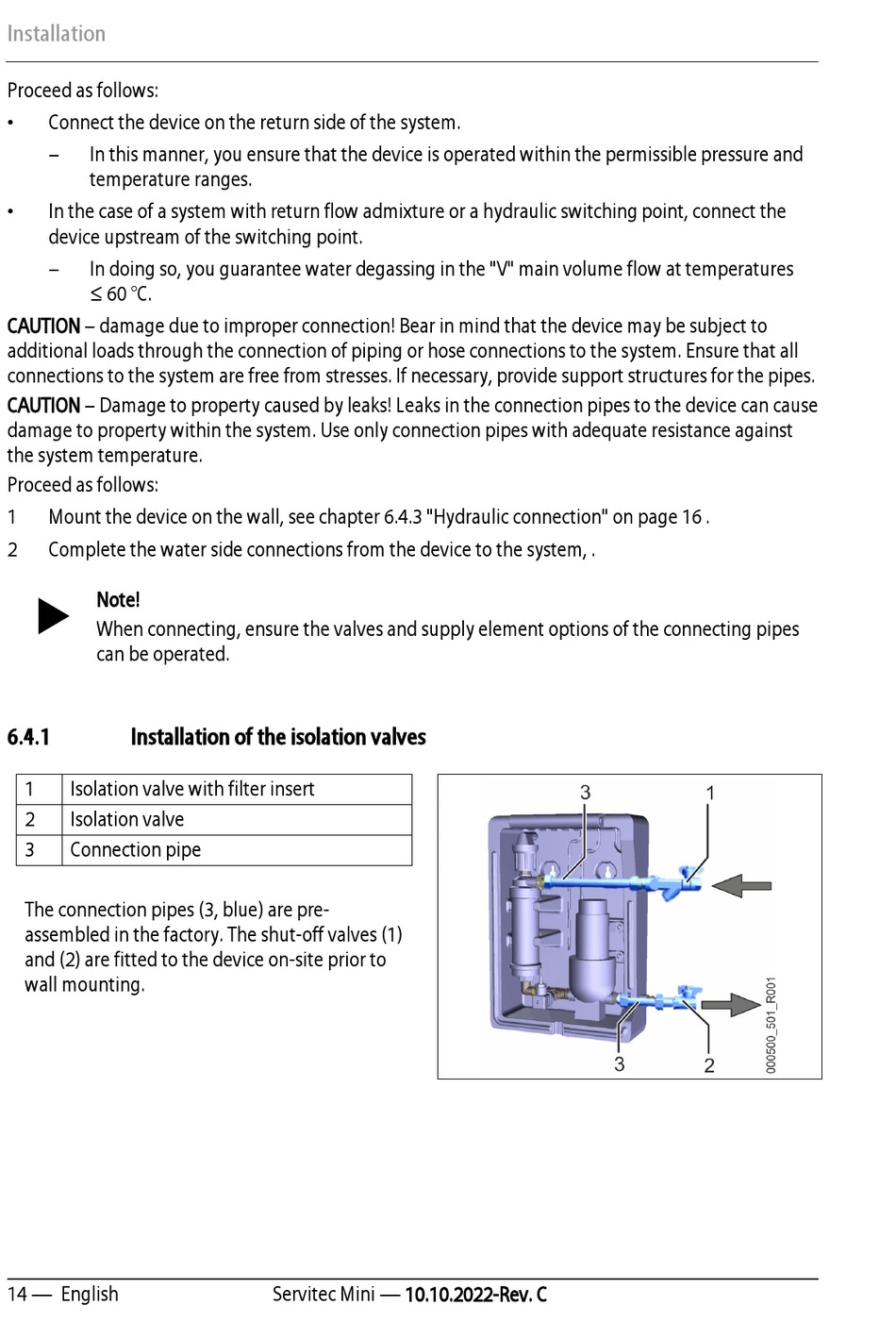

Installation
Proceed as follows:
•
Connect the device on the return side of the system.
–
In this manner, you ensure that the device is operated within the permissible pressure and
temperature ranges.
•
In the case of a system with return flow admixture or a hydraulic switching point, connect the
device upstream of the switching point.
–
In doing so, you guarantee water degassing in the "V" main volume flow at temperatures
≤ 60 °C.
CAUTION – damage due to improper connection! Bear in mind that the device may be subject to
additional loads through the connection of piping or hose connections to the system. Ensure that all
connections to the system are free from stresses. If necessary, provide support structures for the pipes.
CAUTION – Damage to property caused by leaks! Leaks in the connection pipes to the device can cause
damage to property within the system. Use only connection pipes with adequate resistance against
the system temperature.
Proceed as follows:
1
Mount the device on the wall, see chapter 6.4.3 "Hydraulic connection" on page 16 .
2
Complete the water side connections from the device to the system, .
Note!
When connecting, ensure the valves and supply element options of the connecting pipes
can be operated.
6.4.1
Installation of the isolation valves
1
Isolation valve with filter insert
2
Isolation valve
3
Connection pipe
The connection pipes (3, blue) are pre-
assembled in the factory. The shut-off valves (1)
and (2) are fitted to the device on-site prior to
wall mounting.
14 — English
Servitec Mini — 10.10.2022-Rev. C
