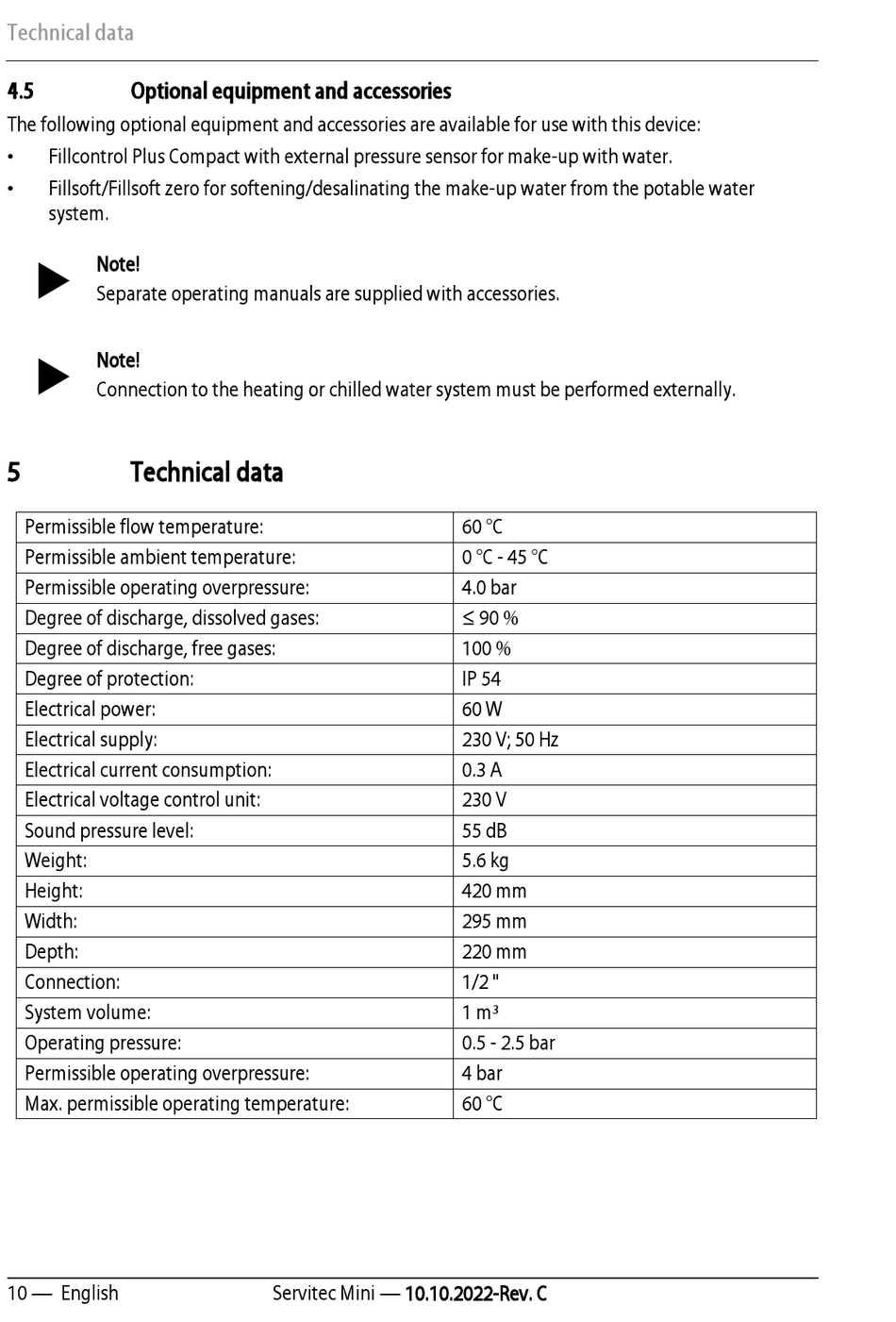

Technical data

4.5

Optional equipment and accessories

The following optional equipment and accessories are available for use with this device:
• Fillcontrol Plus Compact with external pressure sensor for make-up with water.
• Fillsoft/Fillsoft zero for softening/desalinating the make-up water from the potable water
system.
Note!

Separate operating manuals are supplied with accessories.
Note!

Connection to the heating or chilled water system must be performed externally.
5 Technical data
Permissible flow temperature:
Permissible ambient temperature:
Permissible operating overpressure:
Degree of discharge, dissolved gases:
Degree of discharge, free gases:
Degree of protection:
Electrical power:
Electrical supply:
Electrical current consumption:
Electrical voltage control unit:
Sound pressure level:
Weight:
Height:
Width:
Depth:
Connection:
System volume:
Operating pressure:
Permissible operating overpressure:
Max. permissible operating temperature:
10 — English Servitec Mini — 10.10.2022-Rev. C
60 °C
0 °C - 45 °C
4.0 bar
≤ 90 %
100 %
IP 54
60 W
230 V; 50 Hz
0.3 A
230 V
55 dB
5.6 kg
420 mm
295 mm
220 mm
1/2 "
1 m³
0.5 - 2.5 bar
4 bar
60 °C
