- Page 1 USER GUIDE SL iMX6UL/ULL Doc. Rev. 0.4 www.kontron-electronics.de...
- Page 2 This page has been intentionally left blank www.kontron-electronics.de // 2...
- Page 3 Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron Electronics devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact support@kontron-electronics.de. Detail any errors you find. We will correct the errors or problems as soon as possible and provide the revised user guide.
-
Page 6: Symbols
This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron-electronics.de // 6... -
Page 7: Special Handling And Unpacking Instruction
Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit https://www.kontron- electronics.de/unternehmen/qualitaet/. -
Page 8: Table Of Contents
4.2. Mainboard view and I/O locations ......................... 16 4.3. Bottom Side ................................17 4.4. Mechanical Drawings ............................18 4.5. Pinout of SL iMX6UL/ULL ............................. 20 4.5.1. Pinout of SL iMX6UL/ULL ..........................21 Installation ..............25 5.1. Power Control ............................... 25 5.1.1. -
Page 9: List Of Tables
Table 3: Environmental Conditions ..........................14 Table 4: Connectors of SL iMX6UL/ULL ........................16 Table 5: Pinout of SL iMX6UL/ULL castellated pads ....................21 Table 6: Pinout of SL iMX6UL/ULL LGA pads ......................24 Table 7: Supply voltage ............................... 25 Table 8: Supply current .............................. -
Page 10: 1/ Introduction
SL iMX6UL/ULL - Rev. 0.4 1/ Introduction This user guide describes the 25,5mmx25,5mm SoM form factor module – SL iMX6UL/ULL. The Advanced RISC Machines (ARM) based module is equipped with a NXP i.MX6UL/ULL processor. The single core SoC takes advantage of the optimized power consumption and performance ratio. -
Page 11: 2/ Description

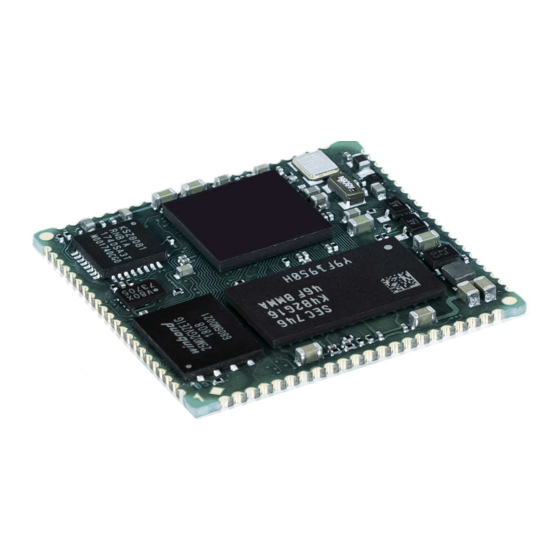

2/ Description The SL iMX6UL/ULL is a very small System-on-Module (SoM) using NXPs i.MX6UL/ULL processor with ARM Cortex A7. The SL iMX6UL/ULL is a highly integrated, small sized module for integration in embedded systems with 25,5mmx25,5mm footprint. The complexity of the DDR3 memory, power management and processor connection are contained in the 8- layer SOM and simplifies baseboard development. -
Page 12: Product Variants And Accessories
SL iMX6UL/ULL - Rev. 0.4 2.1. Product Variants and Accessories Following variants are planned: Table 1: Product Variants of SL iMX6UL/ULL Board Description Product Number SL iMX6 UL 256/256 SoM with NXP single core i.MX6 UL G2 processor, 256 MB... -
Page 13: 3/ System Specifications
SL iMX6UL/ULL - Rev. 0.4 3/ System Specifications 3.1. Component Main Data The table below summarizes the SoM’s features. Table 2: Component Main Data SL iMX6UL/ULL Form factor 25,5x25,5mm with 88 castellated pads and 38 LGA pads Weight Processor NXP’s i.MX6 UL/ULL with 9mm x 9mm BGA package in 0.5mm pitch (industrial version) i.MX6 UL CPU:... -
Page 14: Environmental Conditions
SL iMX6UL/ULL - Rev. 0.4 Operating Linux Yocto System Support Default Interfaces 2x I2C interfaces which are derived from the SoC LAN, USB 2x 100Mbit-Ethernet 2x USB2.0 OTG Display 24Bit RGB with up to WXGA (1366 × 768) @60 fps... -
Page 15: Functional Block Diagram
SL iMX6UL/ULL - Rev. 0.4 3.3. Functional Block Diagram The block diagram shows a detailed structure of the SL iMX6UL/ULL module. Figure 2: Block Diagram www.kontron-electronics.de // 15... -
Page 16: 4/ Board And Connectors
SL iMX6UL/ULL - Rev. 0.4 4/ Board and Connectors 4.1.1. Connectors Table 4: Connectors of SL iMX6UL/ULL Connector Function Remark Castellated pads Central Interface solderable and LGA pads 4.2. Mainboard view and I/O locations Figure 3: Top View Ethernet Phy i.MX6 UL/ULL (processor) -
Page 17: Bottom Side
SL iMX6UL/ULL - Rev. 0.4 4.3. Bottom Side Figure 4: Bottom View Castellation pads Unique ID LGA pads Test points (factory use only) www.kontron-electronics.de // 17... -
Page 18: Mechanical Drawings
SL iMX6UL/ULL - Rev. 0.4 4.4. Mechanical Drawings Figure 5: Dimensions of SL iMX6UL/ULL Figure 6: Thickness from side view www.kontron-electronics.de // 18... -
Page 19: Figure 7: Pcb Land Pattern
SL iMX6UL/ULL - Rev. 0.4 Figure 7: PCB land pattern www.kontron-electronics.de // 19... -
Page 20: Pinout Of Sl Imx6Ul/Ull
SL iMX6UL/ULL - Rev. 0.4 4.5. Pinout of SL iMX6UL/ULL Figure 8: pin assignment www.kontron-electronics.de // 20... -
Page 21: Pinout Of Sl Imx6Ul/Ull
SL iMX6UL/ULL - Rev. 0.4 4.5.1. Pinout of SL iMX6UL/ULL Table 5: Pinout of SL iMX6UL/ULL castellated pads Signal Module Module Type/ Controller Controller Pin i.MX6UL/ULL Directi Terminatio Tolerance USDHC1_DATA0 Bi-Dir CMOS 3.3V i.MX6UL/ULL SD1_DATA0 SD1_DATA0 USDHC1_CMD Bi-Dir CMOS 3.3V i.MX6UL/ULL... - Page 22 SL iMX6UL/ULL - Rev. 0.4 Signal Module Module Type/ Controller Controller Pin i.MX6UL/ULL Directi Terminatio Tolerance Power UART1_TX CMOS 3.3V i.MX6UL/ULL UART1_TX_DATA UART1_TX_DATA UART1_RX CMOS 3.3V i.MX6UL/ULL UART1_RX_DATA UART1_RX_DATA UART1_CTS_B CMOS 3.3V i.MX6UL/ULL UART1_CTS_B UART1_CTS_B UART1_RTS_B CMOS 3.3V i.MX6UL/ULL UART1_RTS_B...
- Page 23 SL iMX6UL/ULL - Rev. 0.4 Used as Linux console www.kontron-electronics.de // 23...
-
Page 24: Table 6: Pinout Of Sl Imx6Ul/Ull Lga Pads
SL iMX6UL/ULL - Rev. 0.4 Table 6: Pinout of SL iMX6UL/ULL LGA pads Signal Module Module Type/ Controller Controller Pin i.MX6UL/ULL Pin Directi Terminatio Tolerance CMOS 3.3V i.MX6UL/ULL LCDIF_DATA6 LCD_DATA06 LCD_DATA06 CMOS 3.3V i.MX6UL/ULL LCDIF_DATA13 LCD_DATA13 LCD_DATA13 CMOS 3.3V i.MX6UL/ULL... -
Page 25: 5/ Installation
SL iMX6UL/ULL - Rev. 0.4 5/ Installation 5.1. Power Control 5.1.1. Power Supply The SoM can be powered from a single 3.3V power Source at VCC pins. The VDD_SNVS_IN pin can be connected to an external battery. If no external battery is used, it is mandatory to connect this pin to VCC. -
Page 26: Boot Mode
Internal Boot Reserved BOOT_MODE[1:0] pins have internal pull-downs. By default, these pins can be left floating to stay in “Boot from Fuses” mode. In this mode the SoM boots as programmed by Kontron. 5.3.1. SD/MMC manufacture mode If no valid boot image is found on the programmed boot devices the SoM switches to SD/MMC manufacture mode before the serial download mode. -
Page 27: Sd Card
Figure 9: SD-Card connection example 5.5. Ethernet The SL iMX6UL/ULL includes the 100Mbit Phy KSZ8081RNBIA. This makes the ethernet implementation on the baseboard quite simple. Only an appropriate connector with magnetics has to be connected. Figure 10: Ethernet connection example www.kontron-electronics.de... -
Page 28: 6/ Thermal Considerations
SL iMX6UL/ULL - Rev. 0.4 6/ Thermal considerations The temperature rise of the CPU depends on the use case and varies from 20°C for “Linux running” up to approximately 45°C for “A7 heavy load”. Due to the maximum temperature of 105°C of the SoC a cooling concept should be considered depending on the CPU load and the maximum ambient temperature. -
Page 29: 7/ Reflow Profile
SL iMX6UL/ULL - Rev. 0.4 7/ Reflow profile Table 10: Reflow profile Profile Feature Pb-Free Assembly Average Ramp-Up Rate (T to T 3°C/second max. SMAX Preheat Temperature Min (T 150 °C SMIN Temperature Max (T 200 °C SMAX Time (t... -
Page 30: 8/ Technical Support
8/ Technical Support 8.1. First Steps – Startup-Information Baseboard For the first startup of your Board, which includes the SL iMX6UL/ULL SoM, you will find more information about the Software / BSP and additional hardware information at the online documentation. -
Page 31: About Kontron Electronics
For your individual requirements we have a large group of engineers and technicians available, who develop your tailor-made solution with a lot of experience and imagination. Kontron Electronics is a full-service provider for the development and production of complex electronic modules, components and systems for industrial and medical applications.
