Summary of Contents for Kontron 11529

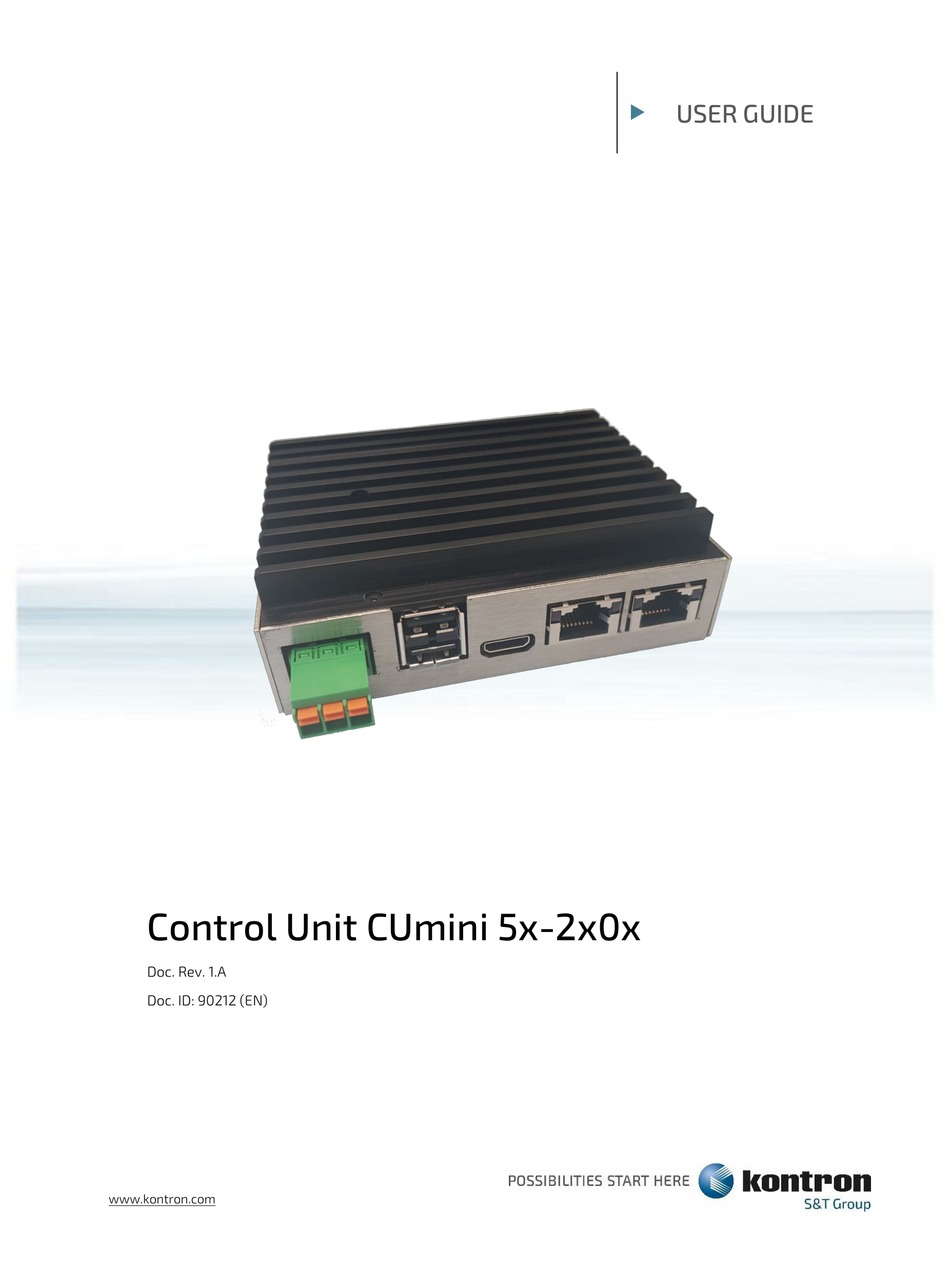

- Page 1 USER GUIDE Control Unit CUmini 5x-2x0x Doc. Rev. 1.A Doc. ID: 90212 (EN) www.kontron.com...
- Page 2 Control Unit CUmini 5x-2x0x - Rev. 1.A This page has been intentionally left blank. www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6... -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
3.2.5. HDMI connector X7 ....................................22 3.2.6. USB 2.0 Host: connector X4 ................................22 4/ Assembly and installation ..................................23 4.1. DIN rail mounting ..................................... 24 5/ Commissioning ......................................25 5.1. Power supply ......................................25 5.2. Grounding ........................................25 www.kontron.com // 9... -
Page 10: List Of Tables
10.2. Returning Defective Merchandise ..............................34 Appendix A: List of Acronyms ..................................35 Appendix B: Product Configurations ................................ 36 About Kontron ........................................40 List of Tables Table 1: Product Versions....................................11 Table 2: Detail configuration of the product versions: ......................... 11 Table 3: Zubehör for the Control Unit ................................ -
Page 11: 1/ Product Overview
For details please contact our sales team. Table 1: Product Versions Article No. Name Versions 11529 Control Unit CUmini 54-2500-48021 Compact Control Unit with Intel Atom E3845 11592 Control Unit CUmini 54-2500-58521 Compact Control Unit with Intel Atom E3845 with FRAM... - Page 12 Linux Debian Software Soft-PLC CODESYS Runtime system license Soft-PLC CODESYS Target-Visu license Soft-PLC CODESYS Web-Visu license Mechanik Stainless steel housing with DIN rail clamp Mounting type vertical (book form) Mounting type horizontal †: Function only supported with Linux. www.kontron.com // 12...
-
Page 13: 2/ Technical Data
(Industrial sector) according to EN 61000-6-4 Emission (Industrial sector) This device is intended exclusively for use in industrial environments. In domestic environments this device may cause radio interference. In this case the user must take appropriate measures. www.kontron.com // 13... -
Page 14: Power Supply
The power consumption depends on the configuration as well as the type and number of active interfaces. The internal fuse is not replaceable. Defective fuses must be replaced by qualified Kontron service. USB devices connected to USB 2.0 interfaces may consume a maximum of 0.5A per interface. -
Page 15: Materials
2015/863 amending Annex II of Directive 2011/65/EU (RoHS 3) With regard to the REACH regulation or conflict minerals, please refer to the information on our website at: https://www.kontron.de/ueber-uns/corporate-responsibility/material-declaration/reach- customer-information 2.5. Type Label and Product Indentification The type plate is located on the bottom opposite the heat sink of the Control Unit. -
Page 16: Accessories
Table 3: Zubehör for the Control Unit Article No. Designation Comment 90211 Handbuch Control Unit CUmini 5x-2x0x Deutsches Handbuch 90196 System Manual Linux Deutsches Handbuch 90212 User Guide Control Unit CUmini 5x-2x0x English User Manual 90208 System Manual Linux English User Manual www.kontron.com // 16... -
Page 17: 3/ Design And Function
The microSD card slot X14 integrated on the base module allows the use of SD cards up to SDXC format. The 4-bit wide SDIO interface is routed directly from the processor to the microSD slot. Supported UHS-I Modes: HS, DDR50, SDR12, SDR25 Modes: 1 bit, 4 bit www.kontron.com // 17... -
Page 18: Emmc
Unexpected data loss or device failure can result when using unsuitable microSD cards. Kontron recommends microSD cards from swissbit®. 3.1.6. eMMC The bootable eMMC (JEDEC 5.0) built into the Control Unit serves as operating system and program memory. -
Page 19: Thermal Management
The RTC RX-8564LC from Seiko Epson is used as clock component. In combination with a backup battery, the time continues to run even in case of a power failure. The specified maximum deviation of the frequency corresponds approximately to the deviation of one minute per month. For correct operation, the appropriate driver from Kontron Electronics must be installed. -
Page 20: Pin Assignment
RJ45 (8P8C) Connector for Ethernet Ethernet 2 port USB Host connector type A USB 2.0 microSD Card Slot microSD HDMI, 19-pin for connector type C (mini) HDMI Figure 2: Interfaces/Connectors Front side Figure 3: Interfaces/Connectors Back side Batterie uSD Card Slot www.kontron.com // 20... -
Page 21: Status Leds
In Europe, the flatter type Phoenix FKCN 2.5/ 3-ST - 1732755 can also be used as a mating connector for X1. However, this type is not permitted in the USA and Canada, since only the Phoenix FKCN 2.5/ 3-ST-5.08 - 1873061 has the UL registration required for this region www.kontron.com // 21... -
Page 22: Ethernet Connector X2 And X3
Use a high quality HDMI cable which is double shielded with a cable length of less than 3m. Otherwise, compliance with the applicable EMC standards cannot be guaranteed. Kontron recommends the use of a certified "Premium High Speed HDMI" cable with the appropriate label from HDMI Licensing Administrator Inc. -
Page 23: 4/ Assembly And Installation
If the device is not mounted according to the instructions, heat dissipation cannot be guaranteed and the device will overheat. This in turn can result in a loss of performance or an unexpected shutdown of the device. www.kontron.com // 23... -
Page 24: Din Rail Mounting
DIN rail on both sides. If necessary, the distance must be increased if the installation regulations of the neighboring device require a greater distance. Figure 4: Mounting and dismounting a Control Unit on a DIN rail Symbolic pictures Mounting Dismounting www.kontron.com // 24... -
Page 25: 5/ Commissioning
The clear menu structure makes it possible to quickly find the numerous setting options such as network settings, URL, CODESYS, display, FTP, IP-Tables, screensaver, web browser settings, passwords, diagnostics, etc. Default IP addresses for panel access: Ethernet 1: 192.168.1.100 (Subnet: 255.255.255.0) Ethernet 2: 192.168.1.101 (Subnet: 255.255.255.0) www.kontron.com // 25... -
Page 26: Html5 Browser With Linux Debian
The CODESYS Device Package contains all device descriptions and libraries for the CODESYS development environment. The CODESYS Device Package can be ordered free of charge from Kontron Electronics AG at support@kontron.ch. The CODESYS PLC application is loaded into the Flash-memory of the processor board via the microSD card, USB or Ethernet interface. -
Page 27: Backup/Restore The System (Live System)
With a backup of the system, the devices can be reset to a defined state or even cloned. The backup/restore function is integrated in the system configuration and can be accessed directly via the selection menu. For other operating systems, the live system for the backup/restore function can be requested from Kontron Electronics AG via support@kontron.ch www.kontron.com... -
Page 28: 6/ Maintenance
The battery must be inserted into the battery holder with the positive pole upwards and the battery holder must be inserted with the open side towards the bottom of the device (type plate). www.kontron.com // 28... -
Page 29: Cleaning
Only use 3V lithium batteries type CR1632 or BR1632(A) as replacement batteries which comply with the EU Directives 2013/56/EU (Battery Directive) and Regulation (EC) No. 1907/2006 (REACH). Recommended by Kontron Electronics AG are Renata, Varta and Panasonic. Batteries must not be disposed of with household waste and must not be incinerated. -
Page 30: 7/ Malfunctions
Loss of warranty due to manipulation of the device Repairs and other manipulations of the device may only be carried out by the manufacturer. In particular, opening the device is prohibited. Otherwise any warranty will become void. www.kontron.com // 30... -
Page 31: 8/ Decommissioning And Disposal
Remove the backup battery from the device and dispose of it separately. Kontron will gladly take back old electrical equipment at the end of its service life for proper disposal. Due to international transport regulations, the battery must be removed before return shipment and disposed of separately. -
Page 32: 9/ Technical Drawings
Control Unit CUmini 5x-2x0x - Rev. 1.A 9/ Technical drawings 9.1. Views and dimensions Figure 6: Views and dimensions www.kontron.com // 32... -
Page 33: 10/ Technical Support
Control Unit CUmini 5x-2x0x - Rev. 1.A Technical Support For technical support contact our Support department: Email: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: Article number or product ID number (PN), ... -
Page 34: Returning Defective Merchandise
RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron. -
Page 35: Appendix A: List Of Acronyms
- subject to licence Human Machine Interface; Interface between machine and user Input/Output Real Time Clock SELV Safety Extra Low Voltage Soft-PLC Programmable logic controller in Software UEFI Unified Extensible Firmware Interface Watchdog Timer www.kontron.com // 35... -
Page 36: Appendix B: Product Configurations
DIN rail upright (book form) Temperature Range Standard (0 °C … +55 °C) Flash 16GB eMMC 32GB eMMC 64GB eMMC FRAM 64kB 128kB 256kB 512kB Ethernet 0 Ports 1 Port 2 Ports HDMI Not available 1 Port HDMI mini www.kontron.com // 36... - Page 37 Control Unit CUmini 5x-2x0x - Rev. 1.A This page has been intentionally left blank. www.kontron.com // 37...
- Page 38 Control Unit CUmini 5x-2x0x - Rev. 1.A This page has been intentionally left blank. www.kontron.com // 38...
- Page 39 Control Unit CUmini 5x-2x0x - Rev. 1.A This page has been intentionally left blank. www.kontron.com // 39...
-
Page 40: About Kontron
Control Unit CUmini 5x-2x0x – Rev. 1.A About Kontron Kontron is a global leader in Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
