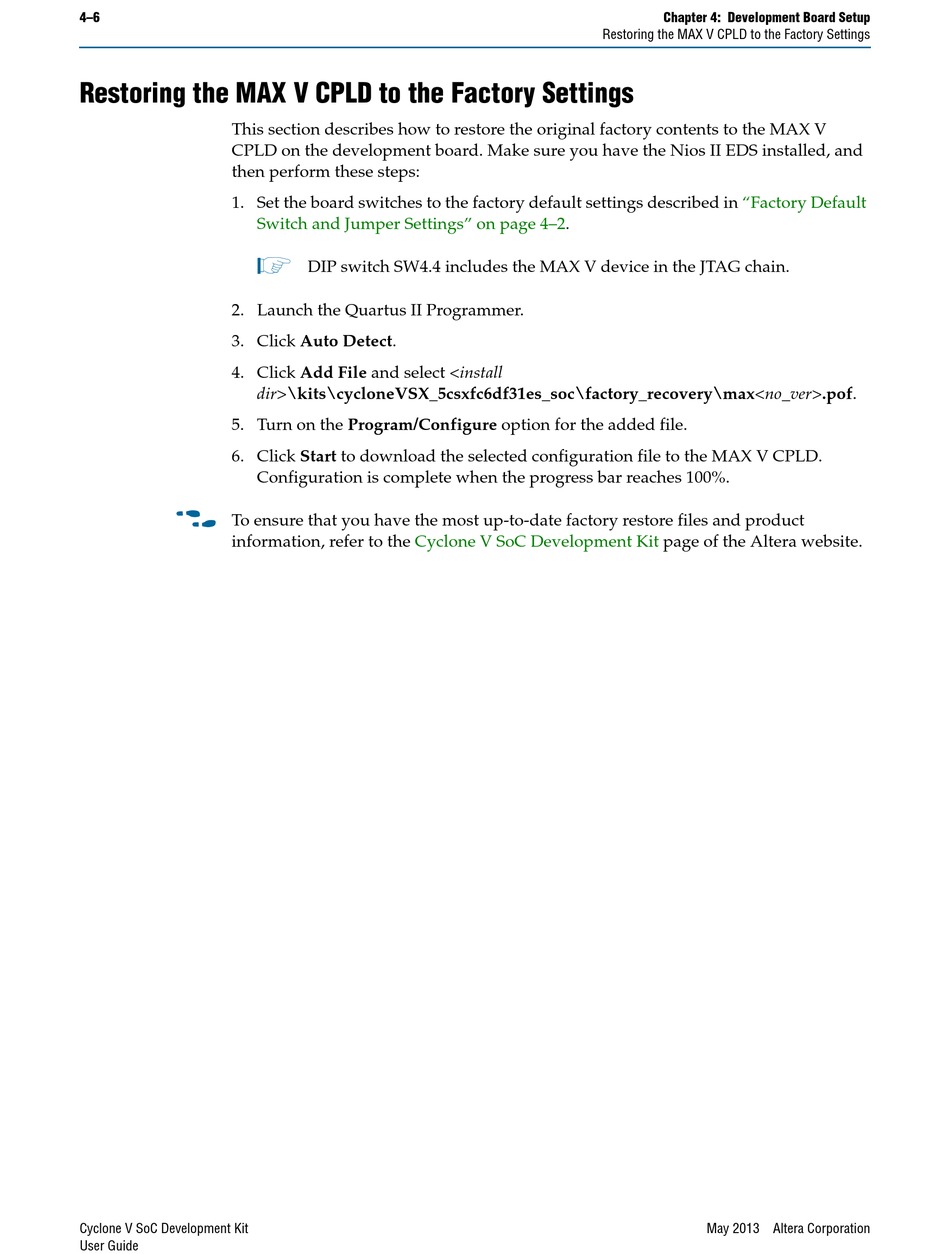

Restoring the MAX V CPLD to the Factory Settings

This section describes how to restore the original factory contents to the MAX V
CPLD on the development board. Make sure you have the Nios II EDS installed, and
then perform these steps:
1. Set the board switches to the factory default settings described in
Switch and Jumper Settings" on page
1
2. Launch the Quartus II Programmer.
3. Click Auto Detect.
4. Click Add File and select <install
dir>\kits\cycloneVSX_5csxfc6df31es_soc\factory_recovery\max<no_ver>.pof.
5. Turn on the Program/Configure option for the added file.
6. Click Start to download the selected configuration file to the MAX V CPLD.
Configuration is complete when the progress bar reaches 100%.
f
To ensure that you have the most up-to-date factory restore files and product
information, refer to the
Cyclone V SoC Development Kit
User Guide
DIP switch SW4.4 includes the MAX V device in the JTAG chain.
