Produktinformation
SV
Power Focus 4000

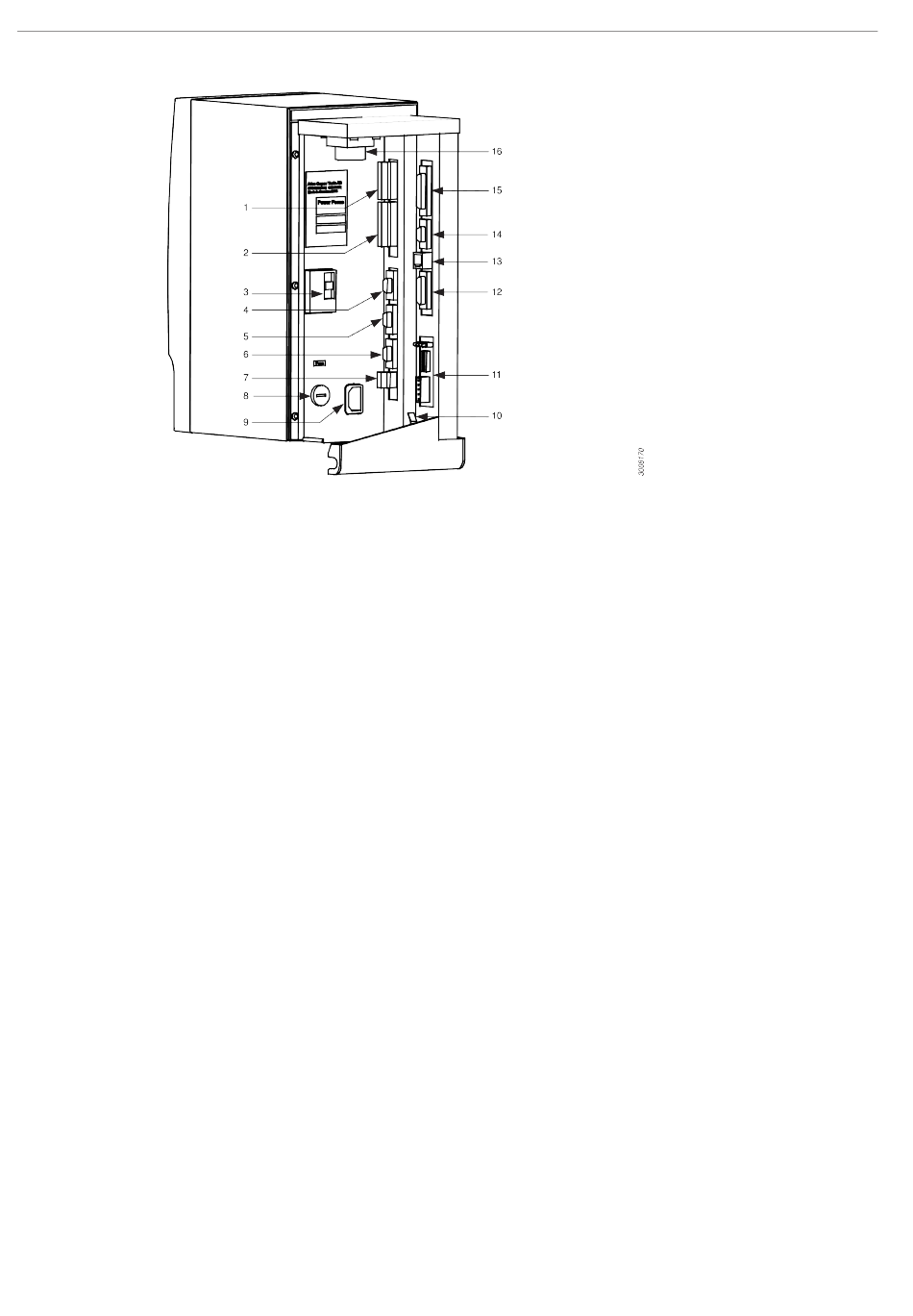

Bakre panel – Power Focus 4000 Compact och Graph
1. Digital ingång + Intern 24 V DC
2. Reläer
3. Jordfelsbrytare (GFI)
4. Seriell # 1 (RS232)
5. I/O-buss #1
6. I/O-buss #2
7. Fjärrstart
8. Huvudsäkring
9. Huvudströmbrytare
10. Jordanslutning
11. Fältbusskort (tillval)
12. RBU
13. Ethernet
14. Seriell # 2 (RS232)
15. Skrivare
16. Verktygsutgång
62
