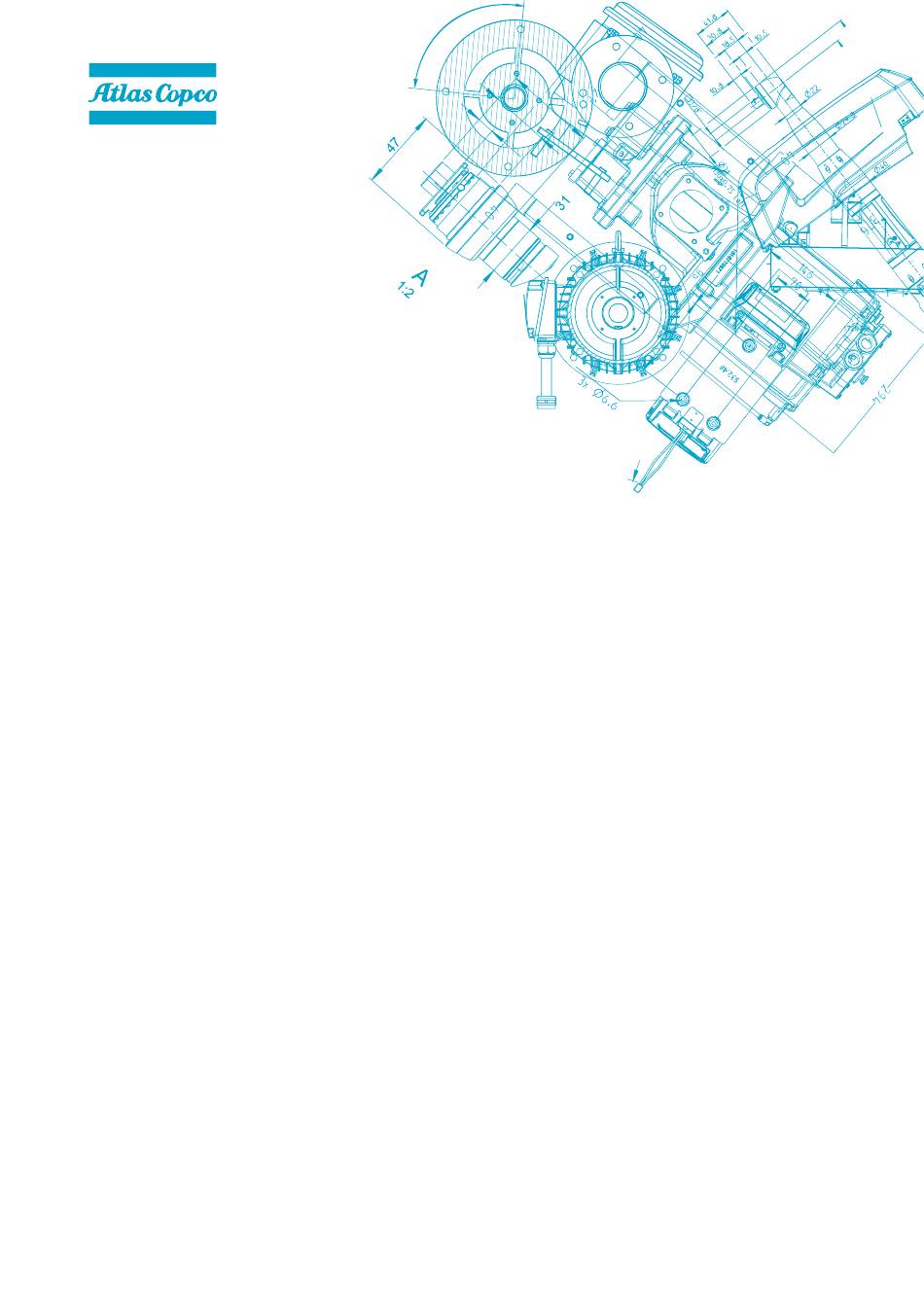

HEX@GRID Controller
USER INTERFACE INSTRUCTION MANUAL
P50100003_A
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEX GRID and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco HEX GRID

Summary of Contents for Atlas Copco HEX GRID

  • Page 1 HEX@GRID Controller USER INTERFACE INSTRUCTION MANUAL P50100003_A Original instructions...

  • Page 2: Copyright Notice

    It meets the requirements for instructions specified by the applicable European directives as identified in the Declaration of Conformity. Trademark credit ©2021 Atlas Copco AB, Stockholm, Sweden. Disclaimer The content of this manual may change from time to time without notice. We accept no liability for any errors that may appear in this manual nor do we make any expressed or implied warranties regarding the content.

  • Page 3: Table Of Contents

    3.4. Responding to an alert......... . . 16 P50100003_A Page 3 11/2021 - ©Atlas Copco...

  • Page 4: Introducing The Mpc

    4. Click Properties > Internet protocol version 4 (TCP/IPv4) > Properties > Use following IP address. 5. Enter IP address as 192.168.202.9. 6. Click on Subnet mask and 255.255.255.0 number must appear. 7. Click OK. Try to connect through your web browser again. P50100003_A Page 4 11/2021 - ©Atlas Copco...

  • Page 5: Entering Login Credentials

    If you forgot your Username and Password 1. Go to the Forgot Password tab. 2. Enter the details from the controller hardware label. 1.1.3. Viewing controller home page The default home page displays after the first login. P50100003_A Page 5 11/2021 - ©Atlas Copco...

  • Page 6: List Of Abbreviations

    Active warning or failure notification is shown on the bottom of the page. 1.2. List of abbreviations Table 1 Abbreviations HEX@ HEX@AtlasCopco controller Multi Pump Controller User Interface Human Machine Interface IP address Internet Protocol address P50100003_A Page 6 11/2021 - ©Atlas Copco...
  • Page 7 Introducing the MPC Domain Name System DHCP Dynamic Host Configuration Protocol mDNS Multicast DNS Machine to Machine MQTT Message Queuing Telemetry Transport P50100003_A Page 7 11/2021 - ©Atlas Copco...

  • Page 8: Configuring The Controller

    2.3. Setting the physical units To set the physical parameters units 1. Click More. 2. Navigate to Preferences > General > Units. 3. Modify the units for different parameters as per your requirement P50100003_A Page 8 11/2021 - ©Atlas Copco...

  • Page 9: Setting The Date And Time

    Press the Refresh button (visible only when the WiFi bolt is not connected). Select Client mode. Click Scan to see the access points. Select the WiFi access point to connect. Select the Authentication mode. Enter Password. Click Connect. P50100003_A Page 9 11/2021 - ©Atlas Copco...

  • Page 10: Creating A Separate Local Network With Wifi Bolts

    (visible only when the WiFi bolt is not connected). Change connection mode to Client. Click Scan to see the access points. Select the WiFi access point to connect. Select the Authentication mode. Enter Password. Click Connect. P50100003_A Page 10 11/2021 - ©Atlas Copco...

  • Page 11: Changing Display Settings

    Update the software online by updating automatically from the controller. Note: Make sure to stop the pump before you do the software update. 1. Click Download update file which has been received from the cloud. P50100003_A Page 11 11/2021 - ©Atlas Copco...

  • Page 12: Troubleshooting Software Update Failure

    Charts are grouped into types of measurements that can contain multiple charts. 2.11.1. Using trend actions To access the options in variable tab click the dots at the top right corner. ▪ add/remove from favourites ▪ details of function of respective variables P50100003_A Page 12 11/2021 - ©Atlas Copco...

  • Page 13: Checking The Trend Mechanism

    Alerts page of the follower asking you to acknowledge the connecting requirement of the MPC. Click on the acknowledge button to establish the m2m communication between MPC and the follower pump with controller. P50100003_A Page 13 11/2021 - ©Atlas Copco...

  • Page 14: Configuring Follower Pumps With A Mk5 Controller

    ‘priority group’. Lowest priority value corresponds to the first pump group that runs. Inside the group, OPTIMIZER Energy consumption focus or Maintenance focus is still considered depending on the option selected. P50100003_A Page 14 11/2021 - ©Atlas Copco...

  • Page 15: Operating The Pump

    4. Click in the checking box of each available pressure sensors and fill in the pressure setpoint values. These sensors are either installed on MPC itself or on the follower pumps. You are able to select multiple pressure sensors and fill in different pressure setpoint. P50100003_A Page 15 11/2021 - ©Atlas Copco...

  • Page 16: Responding To An Alert

    2. Select the specific alert to get more information about the possible root cause and the solutions. If the failure is solved, click on Reset this alarm to reset the alert. You can also see the previously solved alerts by clicking on the history button. P50100003_A Page 16 11/2021 - ©Atlas Copco...
  • Page 17 Operating the pump P50100003_A Page 17 11/2021 - ©Atlas Copco...
  • Page 18 This page has been intentionally left blank.
  • Page 19 This page has been intentionally left blank.
  • Page 20 atlascopco.com...
