Mounting guidelines for the DESKLINE DL1A

The lifting units are normally mounted with the motor housings upwards and
pointing towards each other (see fi gure 2).
The aluminium motor housing is supplied with 6 pcs. of M6 threaded holes
meant for mounting on the desk frame. The threaded holes are rolled into
the aluminium housing.
It is recommended to use all 6 M6 threaded holes. As the tabletop amplifi es
the sound we advise you to place a vibration/shockabsorbing material
between the tabletop and the table frame.
A suitable desk height in the lowest position can be obtained by mounting the
lifting unit on a 6-8 mm bottom plate by means of 4 pcs. of M6 countersinked
screws. We recommend you to use screws of min. quality 8.8. The thrust moment
must not exceed 10 Nm in the bottom plate thread.

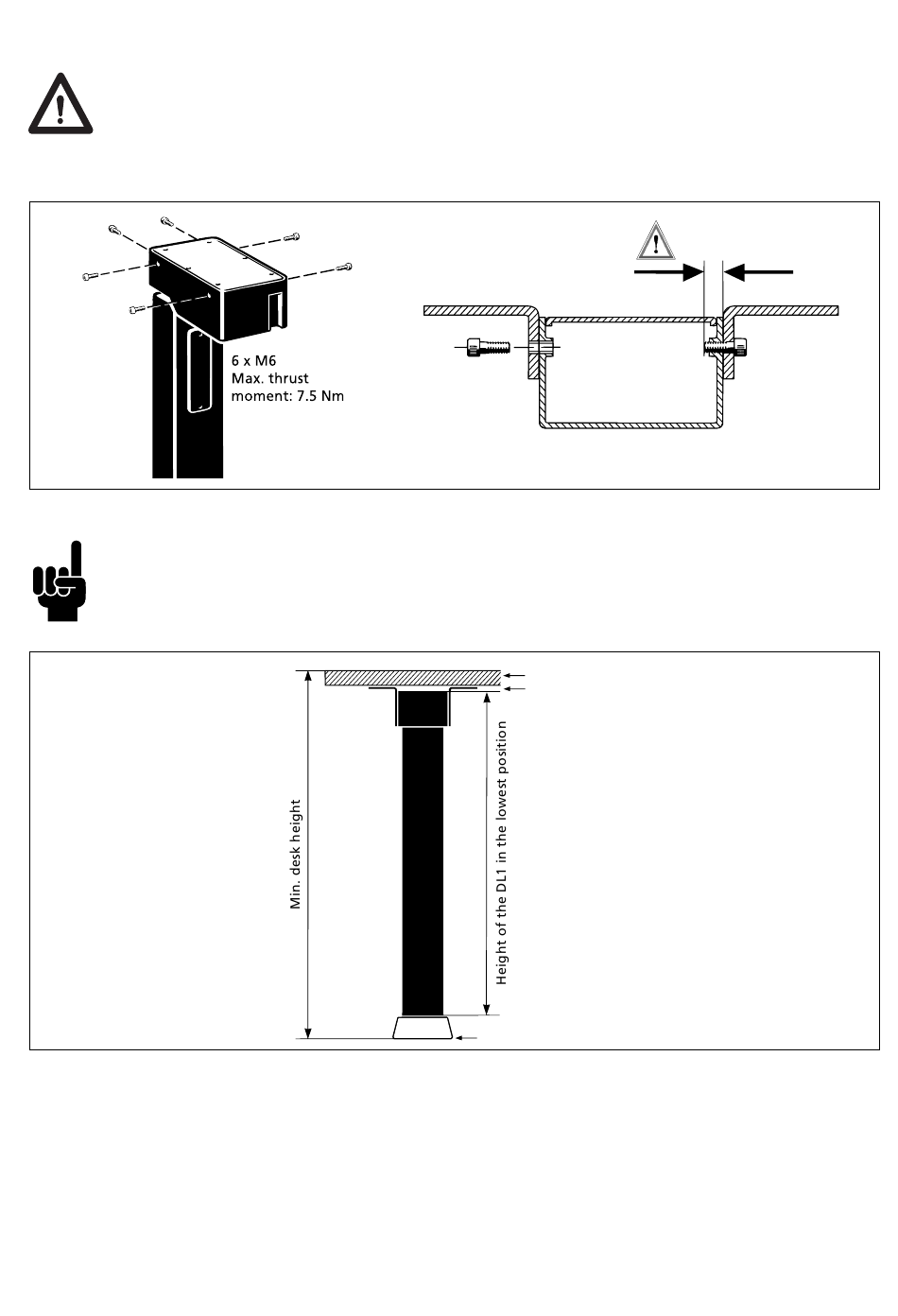

Figure 1
Tabletop
Absorbing
material
Floor level
Figure 2
Max. 15 mm
DL1
motor housing
9
