Modbus RTU Client to KNX TP Gateway

4.5. Technical Specifications

• Front side: PC (UL 94 V-0)
• Back side: PPO (UL 94 V-0)
• Net dimensions (DxWxH): 32x36x92 mm
Enclosure
Colors:
• Front side: light grey. RAL 7035
• Rear side: black
Mounting DIN rail (35 mm; two modules)
Power Supplied through KNX bus
1 x KNX TP-1 Plug-in terminal block (2 poles)
• 1500 VDC isolation from other ports
KNX Port
• KNX power consumption: 11 .. 22 mA
• Voltage rating: 21 .. 32 VDC
1 x Serial EIA-485 Plug-in screw terminal block (3 poles)
• A1: SNGD (Reference ground or shield)
• A2 (B-)
Port A
• A3 (A+)
2500 VDC isolation from other ports
Push button Activates the gateway's programming mode
Operational temperature 0°C to +60°C
Operational humidity 5 to 95%, no condensation
DIP switch for serial EIA-485 configuration:
• Switch 1:
SW1
• Switches 2 and 3:
2 x Onboard LED indicators
LED indicators
• 1 x Power/Port A activity
• 1 x KNX programming mode

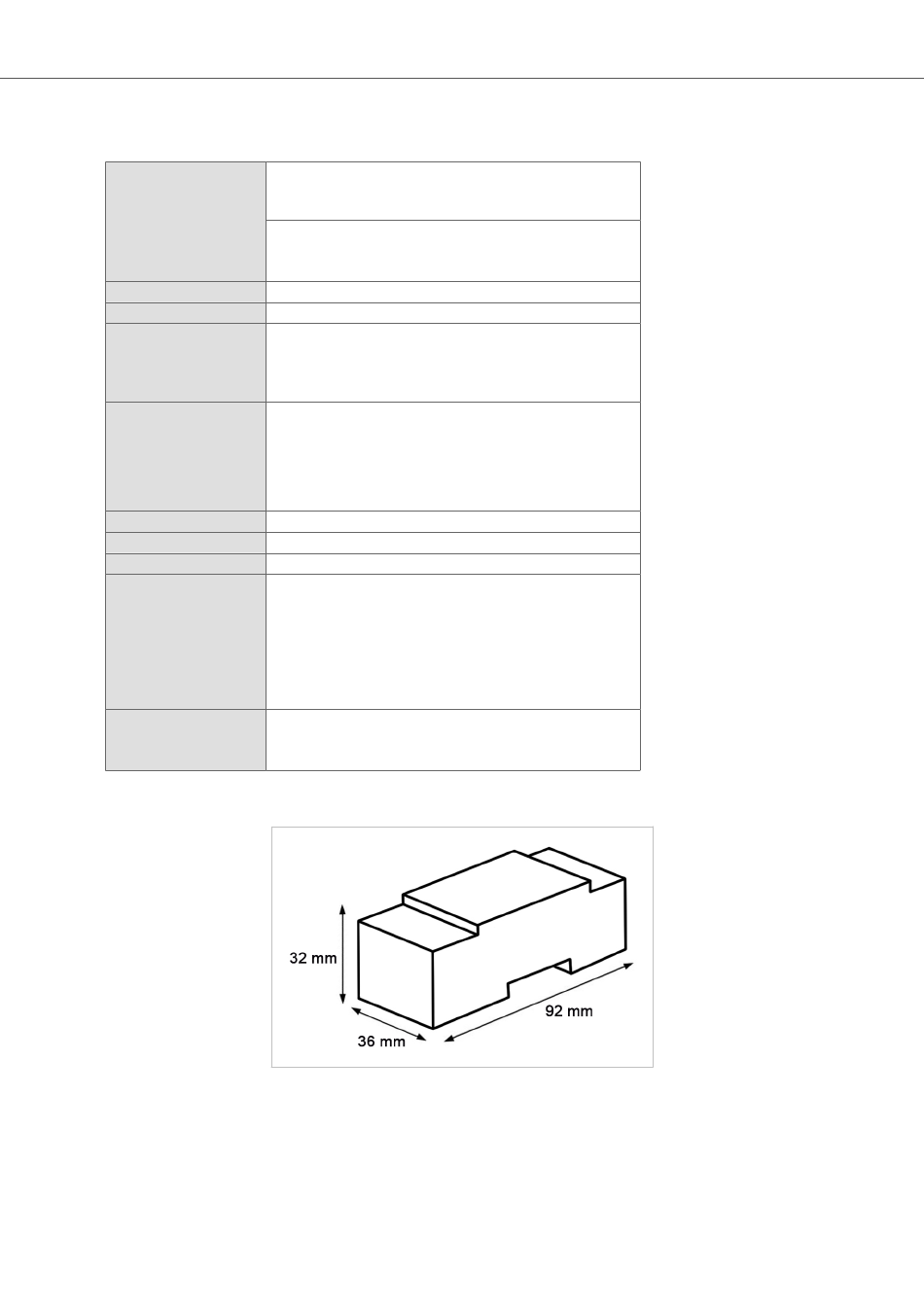

4.6. Dimensions

Page 10 of 20
– ON: 120 Ω termination active
– OFF: 120 Ω termination inactive (Default)
– ON: Polarization active (Default)
– OFF: Polarization inactive
Technical Specifications
