Push Button

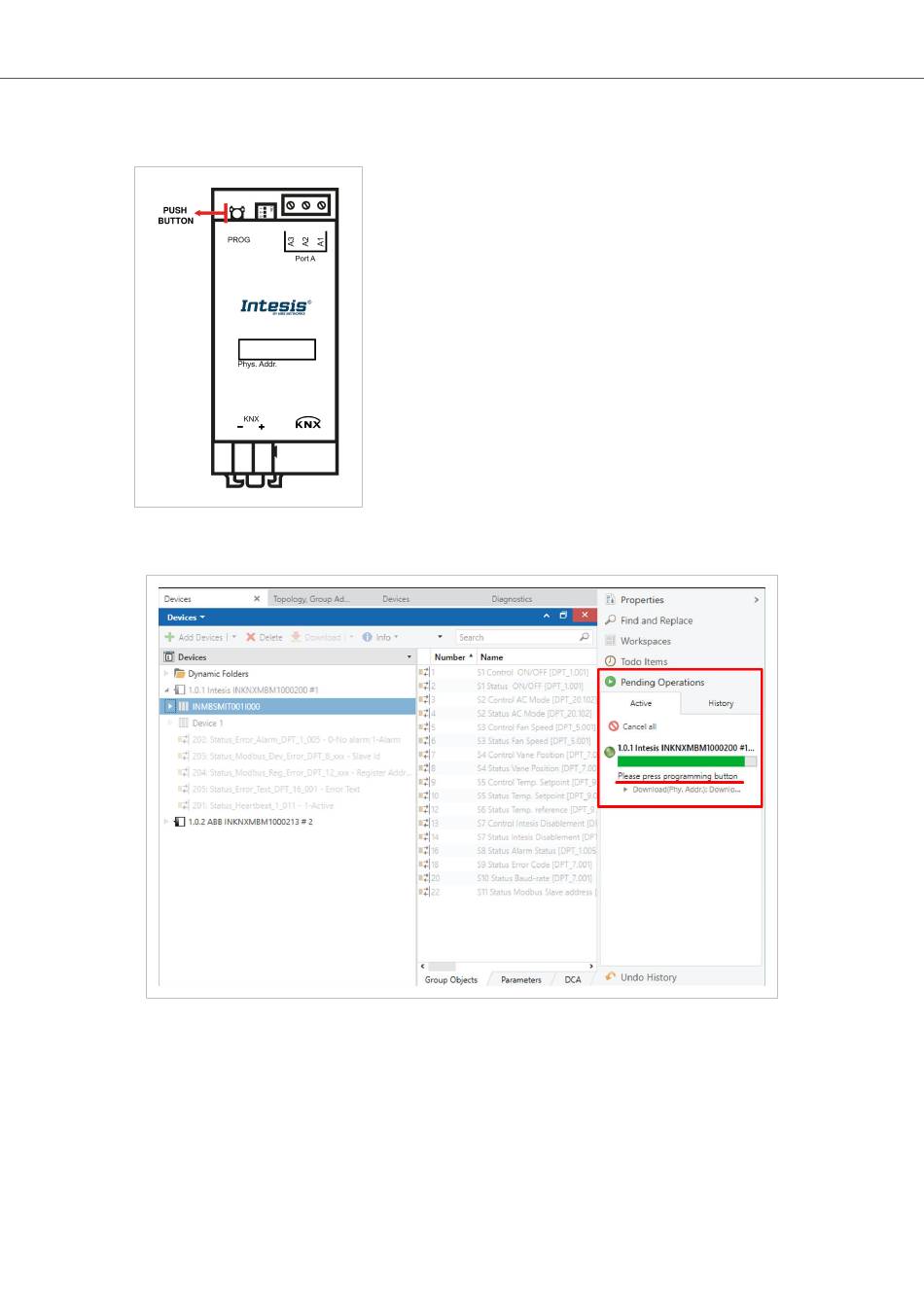

4.4. Push Button
ETS software will tell you when to push the button:
USER MANUAL Version 1.0
This button activates the gateway's programming mode,
which is needed for some ETS download variants:
• Download All: It downloads the Individual Address,
the Application Program, the Parameters, and the
Group addresses.
• Download Individual Address.
The button is also needed to use the Unload Application
and Address function.
You can read a broader explanation in these KNX articles:
Download functions:
https://support.knx.org/hc/en-us/articles/360007474340-Download-functions
Unload device:
https://support.knx.org/hc/en-us/articles/4402998506386-Unload-Device
Modbus RTU Client to KNX TP Gateway
Page 9 of 20
