General Configuration Tab

6.3. General Configuration Tab
Access this tab to configure the Modbus connection parameters and the total number of signals to map.
• Read on Init Delay: Determines the time in seconds to wait before all values are uploaded to the KNX network.
IMPORTANT
This setting applies only to objects with the Read on Init flag enabled.
• Time Telegram Rate: Determines the time in milliseconds between telegrams when some data is updated
simultaneously.
• Heartbeat: Activating this function, the device will report that it is online.
• Modbus connection parameters:
– Baudrate: Defines the communication speed for the RTU communication (from 1200 to 115200 bps.)
– Data Type: Defines, in this order: the number of bits used for data (8bit), the parity of the communication
(None/Odd/Even), and the number of stop bits (1 or 2).
– Response timeout: Determines the time in seconds to wait for a reply to a sent request
– Interframe timeout: Determines the minimum time between received frame and sent frame.
– Poll After Write: Enables or disables a poll for a particular signal after sending a write command to it.
– Number of devices: Determines the number of Modbus devices you are integrating.
USER MANUAL Version 1.0

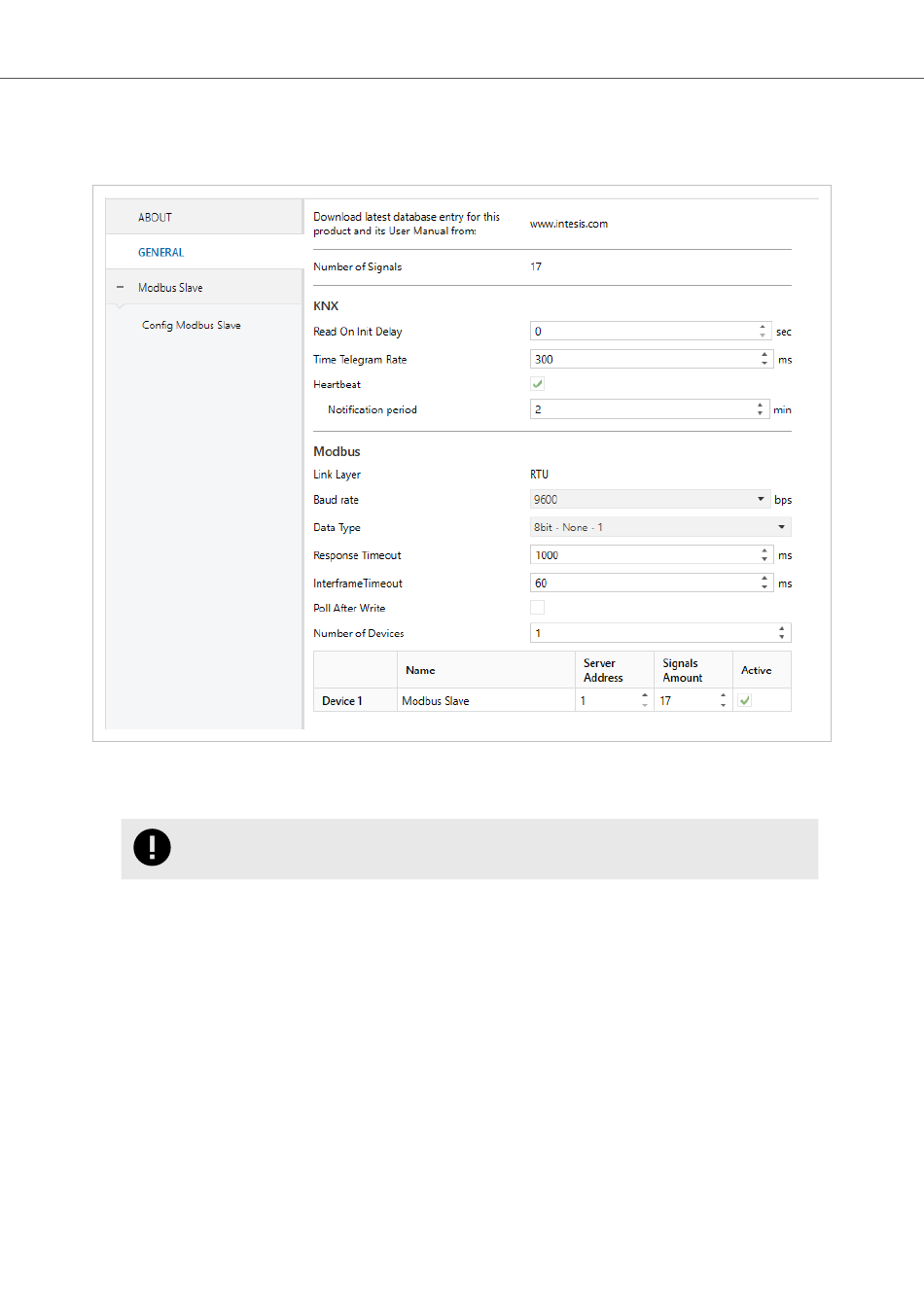

Figure 3. General configuration tab
