HMS Networks Intesis INBACRTR0320000 User Manual

Bacnet ip server, bacnet ms/tp
Hide thumbs Also See for Intesis INBACRTR0320000:

Advertisement

Quick Links

Download this manual
BACnet IP Server
BACnet MS/TP
USER MANUAL
Issue date: 02/2025 v1.5
ENGLISH

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intesis INBACRTR0320000 and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Networks Intesis INBACRTR0320000

Summary of Contents for HMS Networks Intesis INBACRTR0320000

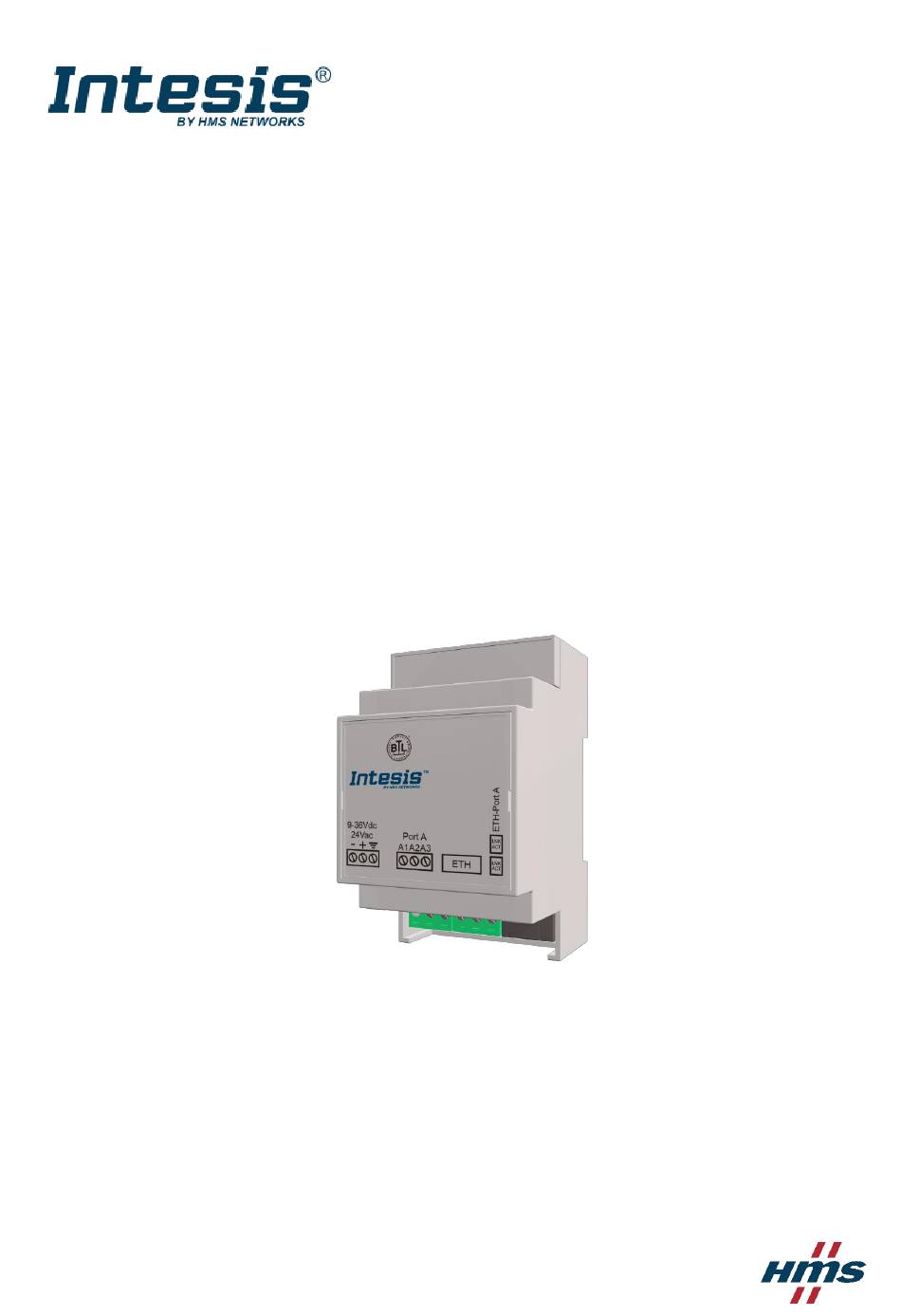

  • Page 1 BACnet IP Server BACnet MS/TP USER MANUAL Issue date: 02/2025 v1.5 ENGLISH...

  • Page 2: Important User Information

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.
  • Page 3 BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Router for the integration of MS/TP devices into BACnet IP enabled monitoring and control systems. ORDER CODE LEGACY ORDER CODE INBACRTR0320000 IBBACRTR0320000 © HMS Industrial Networks S.L.U - All rights reserved URL https://www.hms-networks.com/intesis This information is subject to change without notice 3 / 37...

  • Page 4: Table Of Contents

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en INDEX 1 Description ............................... 5 Introduction ............................5 Functionality ............................. 6 Router capacity..........................6 2 Protocol Implementation Conformance Statement .................. 7 BACnet Standardized Device Profile (Annex L): ................7 Segmentation Capability: .........................

  • Page 5: Description

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 1 Description Introduction This document describes how to route messages between BACnet MS/TP and BACnet IP networks using the Intesis BACnet MS/TP to BACnet IP Router. The aim of this is to make accessible data from devices in a BACnet MS/TP network to a BACnet IP network, and viceversa, in a transparent way.

  • Page 6: Functionality

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Functionality After the start up process, Intesis helps route BACnet communications from a BACnet IP to BACnet MS/TP network, allowing BACnet IP devices to communicate with BACnet MS/TP devices present in another network. It is not necessary to perform any mapping as the data from one side is shown on the other side in a transparent way.

  • Page 7: Protocol Implementation Conformance Statement

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 2 Protocol Implementation Conformance Statement BACnet Protocol Implementation Conformance Statement (PICS) Date: 2019-01-02 Vendor Name: HMS Industrial Networks S.L.U Product Name: INBACRTR0320000 Product Model Number: INBACRTR0320000 Application Software Version: 1.0 Firmware Revision: 1.0.0.0 BACnet Protocol Revision: 14 Product Description:...

  • Page 8: Device Address Binding

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Device Address Binding: Is static device binding supported? (This is currently necessary for two-way communication with MS/TP slaves and certain other devices.) Networking Options: Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/TP, etc. Annex H, BACnet Tunneling Router over IP BACnet/IP Broadcast Management Device (BBMD) Does the BBMD support registrations by Foreign Devices?

  • Page 9: Bacnet Interoperability Building Blocks Supported (Bibbs)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 3 BACnet Interoperability Building Blocks Supported (BIBBs) Data Sharing BIBBs BIBB Type Active BACnet Service Initiate Execute DS-RP-A Data Sharing-ReadProperty–A ReadProperty DS-RP-B Data Sharing-ReadProperty–B ReadProperty DS-RPM-A Data Sharing-ReadPropertyMultiple–A ReadPropertyMultiple DS-RPM-B Data Sharing-ReadPropertyMultiple–B ReadPropertyMultiple...

  • Page 10: Network Management Bibbs

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Network Management BIBBs BIBB Type Active BACnet Service Initiate Execute Establish-Connection-To- Network Management - Connection Network NM-CE-A Establishment–A Disconnect-Connection-To- Network Establish-Connection-To- Network Network Management - Connection NM-CE-B Establishment– B Disconnect-Connection-To- Network Who-Is-Router-To-Network...

  • Page 11: Device Management Bibbs

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Device Management BIBBs BIBB Type Active BACnet Service Initiate Execute Who-Is DM-DDB-A Device Management - Dynamic Device Binding–A I-Am Who-Is DM-DDB-B Device Management - Dynamic Device Binding–B I-Am Who-Has DM-DOB-A Device Management - Dynamic Object Binding–A I-Have...

  • Page 12: Service Types

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 4 Service Types Service type Service name Supported Remarks AcknowledgeAlarm ConfirmedCOVNotification ConfirmedEventNotification Alarm and Event Services GetAlarmSummary GetEnrollmentSummary SubscribeCOV AtomicReadFile File Access Services AtomicWriteFile AddListElement RemoveListElement CreateObject DeleteObject ReadProperty Object Access Services ReadPropertyConditional...

  • Page 13: Objects

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5 Objects Supported Object Types The objects supported are shown in the table below. Object Type Supported Management Point Analog-Input Analog-Output Analog-Value Averaging Binary-Input Binary-Output Binary-Value Calendar Command Device Event-Enrollment File Group...

  • Page 14: Objects And Properties

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Objects and properties Device Object Type 5.2.1 INBACRTR0320000 ( Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Device, 246000) Object_Name CharacterString "INBACRTR0320000" Object_Type BACnetObjectType DEVICE (8) (Device Object Type) System_Status BACnetDeviceStatus OPERATIONAL (0)
  • Page 15 BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Time_Synchronization_ List of BACnetRecipient Recipients Max_Master * ** Unsigned Max_Info_Frames * Unsigned List of Device_Address_Binding NULL (empty) BACnetAddressBinding Database_Revision Unsigned BACnetArray[N] of Configuration_Files BACnetObjectIdentifier Last_Restore_Time BACnetTimeStamp Backup_Failure_Timeout Unsigned16 Active_COV_ List of List of BACnetCOVSubscription Subscriptions...

  • Page 16: Bacnet/Ip Tx Packets (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.2 BACnet/IP Tx Packets (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 0) Object_Name CharacterString BACnet/IP Tx Packets Object_Type BACnetObjectType ANALOG_INPUT (0) 0 - 4294967295 Present_Value REAL...

  • Page 17: Bacnet/Ip Rx Packets (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.3 BACnet/IP Rx Packets (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 1) Object_Name CharacterString BACnet/IP Rx Packets Object_Type BACnetObjectType ANALOG_INPUT (0) 0 - 4294967295 Present_Value REAL...

  • Page 18: Bacnet Ms/Tp Tx Packets (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.4 BACnet MS/TP Tx Packets (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 2) Object_Name CharacterString BACnet MS/TP Tx Packets Object_Type BACnetObjectType ANALOG_INPUT (0) 0 - 4294967295 Present_Value...

  • Page 19: Bacnet Ms/Tp Rx Packets (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.5 BACnet MS/TP Rx Packets (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX (Analog Input, 3) Object_Identifier BACnetObjectIdentifier Object_Name CharacterString BACnet MS/TP Rx Packets Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 20: Bacnet Ms/Tp Tx Tokens (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.6 BACnet MS/TP Tx tokens (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 4) Object_Name CharacterString BACnet MS/TP Tx tokens Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 21: Bacnet Ms/Tp Rx Tokens (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.7 BACnet MS/TP Rx tokens (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 5) Object_Name CharacterString BACnet MS/TP Rx tokens Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 22: Bacnet Ms/Tp Tx Pfm (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.8 BACnet MS/TP Tx PFM (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 6) Object_Name CharacterString BACnet MS/TP Tx PFM Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 23: Bacnet Ms/Tp Rx Pfm (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.9 BACnet MS/TP Rx PFM (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 7) Object_Name CharacterString BACnet MS/TP Rx PFM Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 24: Bacnet Ms/Tp Crc Errors (Analog Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.10 BACnet MS/TP CRC Errors (Analog Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Analog Input, 8) Object_Name CharacterString BACnet MS/TP CRC Errors Object_Type BACnetObjectType ANALOG_INPUT (0) Present_Value REAL...

  • Page 25: Bacnet/Ip Connected (Binary Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.11 BACnet/IP Connected (Binary Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Binary Input, 0) Object_Name CharacterString BACnet/IP Connected Object_Type BACnetObjectType BINARY_INPUT (3) Present_Value BACnetBinaryPV INACTIVE (0) / ACTIVE (1) Description CharacterString...

  • Page 26: Bacnet/Ip Connected (Binary Input Object Type)

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 5.2.12 BACnet/IP Connected (Binary Input Object Type) Property Identifier Property Datatype Value ASHRAE IBOX Object_Identifier BACnetObjectIdentifier (Binary Input, 1) Object_Name CharacterString BACnet/IP Connected Object_Type BACnetObjectType BINARY_INPUT (3) Present_Value BACnetBinaryPV INACTIVE (0) / ACTIVE (1) Description CharacterString...

  • Page 27: Connections

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 6 Connections Find below information regarding the Intesis connections available. Power Supply Use a SELV-rated NEC Class 2 or Limited Power Source (LPS) power supply. Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check the table below).

  • Page 28: Powering The Device

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Powering the device A power supply working with any of the voltage range allowed is needed (check section Error! Reference source not found.). Once connected the RUN led (Figure above) will turn on. WARNING! In order to avoid earth loops that can damage the gateway and/or any other equipment connected to it, we strongly recommend: •...

  • Page 29: Accessing The Dip Switch And Push Button

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 7 Accessing the DIP switch and push button To access the gateway's DIP switch block and push button, you must remove the gateway's main front cover. Use a small flathead screwdriver or a similar tool to proceed. IMPORTANT! Proceed with caution to avoid damaging the gateway's PCB or housing.

  • Page 30: Push Button

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Push button Use the push button (1) to reset the gateway to the factory settings: 1. Disconnect the gateway from power. 2. Press and hold the button. 3. Connect the gateway to power. •...

  • Page 31: Set-Up Process And Troubleshooting

    Intesis. Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied by HMS Industrial Networks S.L.U for this standard integration. Items supplied by HMS Networks for this integration are: • Intesis gateway.

  • Page 32: Configuration Tab

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 9.2.3 Configuration tab Select the Configuration tab to configure the connection parameters. Two subsets of information are shown in this window: General (Gateway general parameters) and BACnet Router (BACnet interface configuration). Figure 9.2 Intesis MAPS configuration tab 9.2.4 Signals All available objects, Object Instances, are listed in the signals tab.

  • Page 33: Sending The Configuration To Intesis

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 9.2.5 Sending the configuration to Intesis When the configuration is finished, follow the next steps. 1.- Click on Save button to save the project to the project folder on your hard disk (more information in Intesis MAPS User Manual).
  • Page 34 BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Figure 9.5 Diagnostic More information about the Diagnostic section can be found in the Configuraion Tool manual. © HMS Industrial Networks S.L.U - All rights reserved URL https://www.hms-networks.com/intesis This information is subject to change without notice 34 / 37...

  • Page 35: Set-Up Procedure

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en Set-up procedure 1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by the Installation wizard. 2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface (DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended).

  • Page 36: Technical Specifications

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 10 Technical specifications Plastic, type PC (UL 94 V-0) Housing Net dimensions (dxwxh): 93x53x58 mm Color: Light Grey. RAL 7035 Wall Mounting DIN rail (recommended) EN60715 TH35 Per terminal: solid wires or stranded wires (twisted or with ferrule) •...

  • Page 37: Dimensions

    BACnet IP Server – BACnet MS/TP Intesis User Manual v1.5 en 11 Dimensions NET DIMENSIONS (HxWxD): • Millimeters: 93 x 53 x 58 mm • Inches: 3.7 x 2.1 x 2.3” IMPORTANT! Leave enough clear space to wire the gateway easily and for the subsequent manipulation of elements.
