Modesty Screen
HINGED ASSEMBLY INSTRUCTIONS

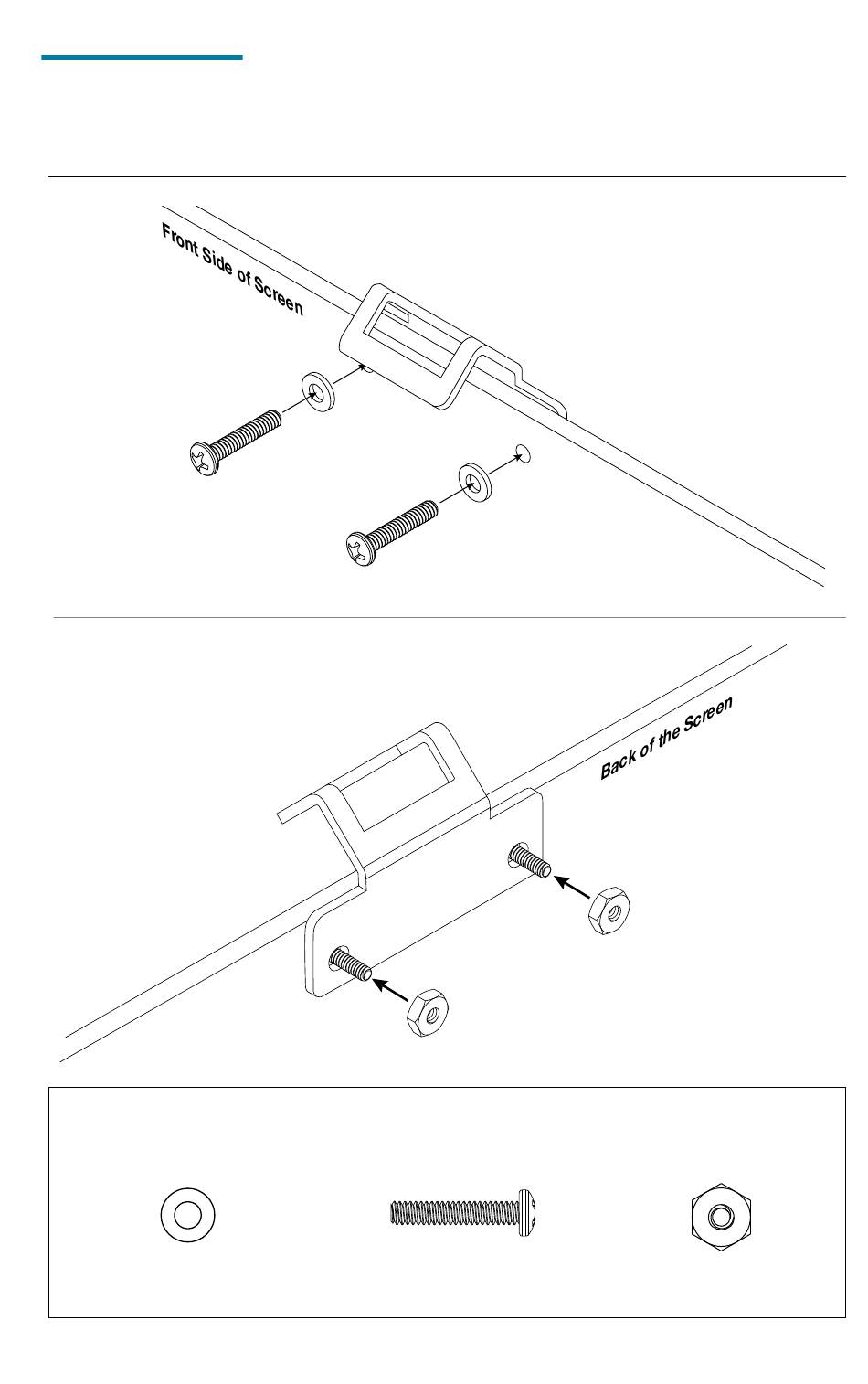

Step 3 (Acrylic): Attach the bottom brackets to the modesty screen.
1:1 HARDWARE
#6 Flat Washer
#6–32 × ¾" Screw
#6 Hex Nut
|
|
15
C6455 Rev C
www.sitonit.net
