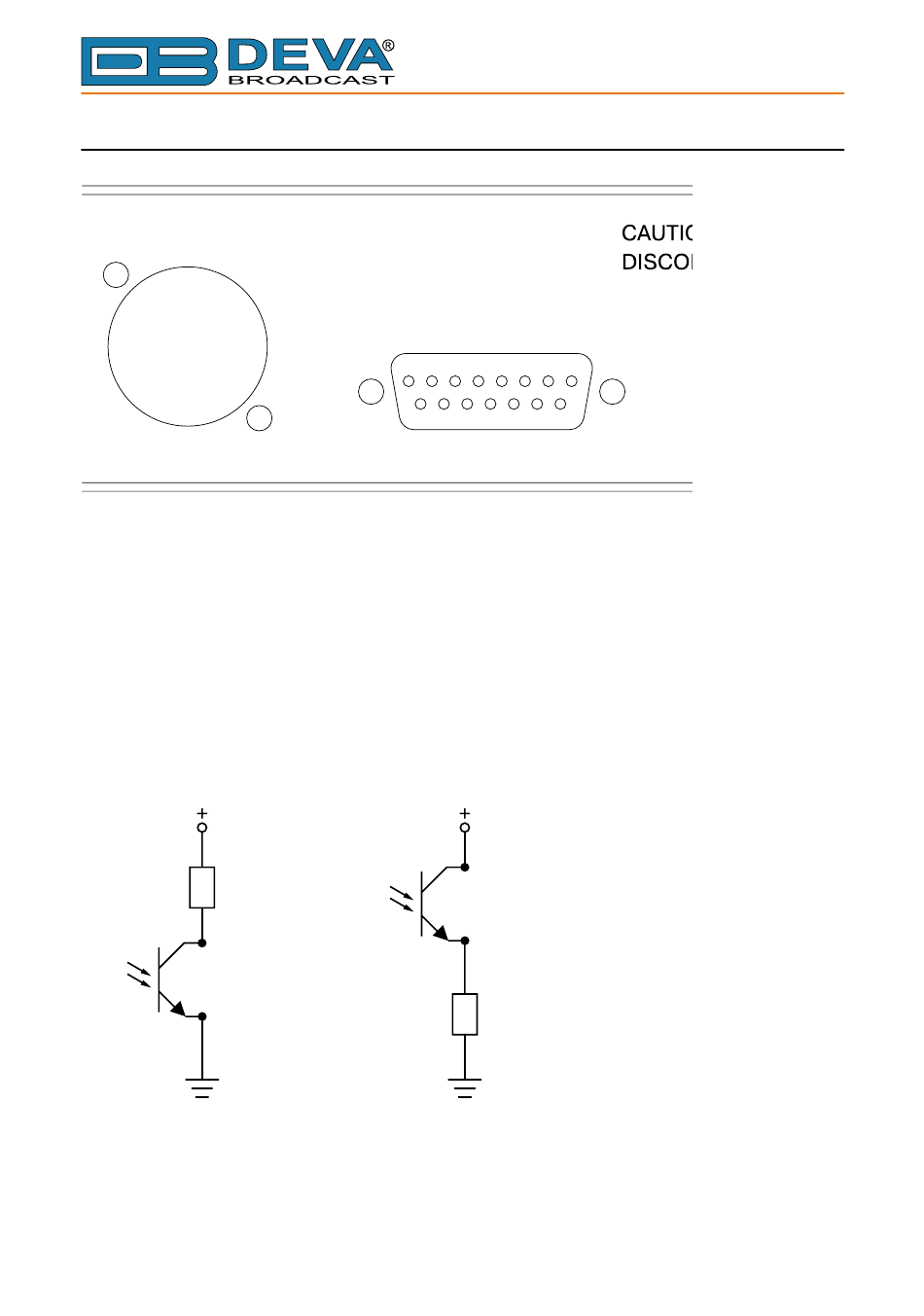

REAR PANEL ALARM TERMINAL

AES/EBU
1 - GPO1 Collector
2 - GPO2 Collector
3 - GPO3 Collector
4 - GPO4 Collector
5 - GPO5 Collector
6 - GPO6 Collector
7 - GPO7 Collector
8 - GND
LOAD
1
GPO1
9
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com
8 7 6 5 4 3
15 14 13 12 11 10
AL ARM OUT
9 - GPO1 Emitter
10 - GPO2 Emitter
11 - GPO3 Emitter
12 - GPO4 Emitter
13 - GPO5 Emitter
14 - GPO6 Emitter
15 - GPO7 Emitter
1
GPO1
9
LOAD
- 15 -
Tel: +359 56 820027, Fax: +359 56 836700
2 1
9
