Altronix TROVE Series Installation Manual page 7

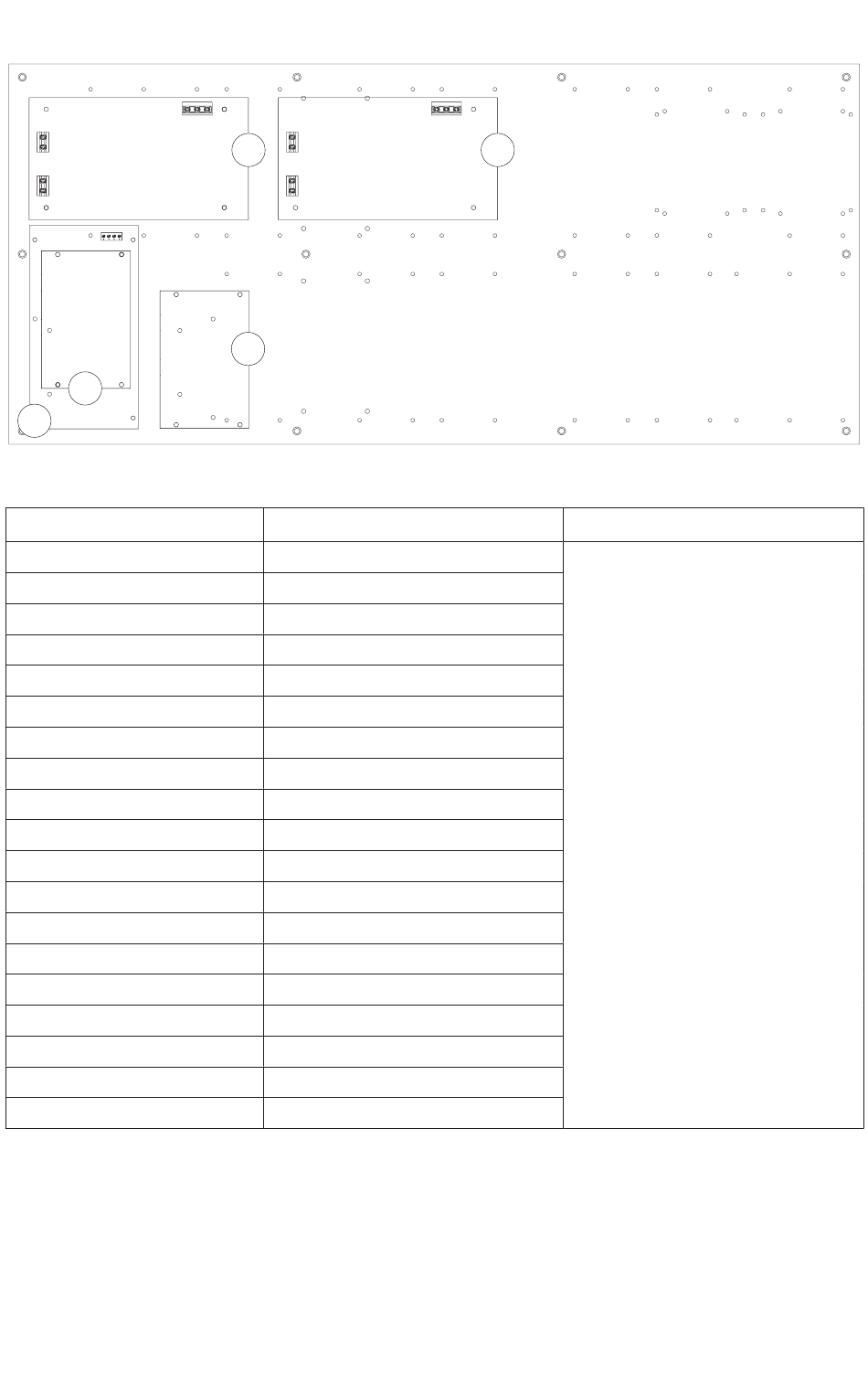

Fig. 6
C
B
Backplane Model*
TAG2R
TAL2R
TBH2R
TBL2R
TBR2R
TCV2R
TDM2R
THR2R
THN2R
THW2R
TKA2R
TKH2R
TM2R
TPX2R
TSA2R
TSH2R
TSL2R
TV2R
TZ2R
*X or XX = May be letters A-Z, where X or XX represents stud pattern for particular manufacturer
Trove2R Installation Guide
Trove2R Sub-Assemblies Configuration:
A
C
Compatible Backplanes:
Access Controller Manufacturer
Universal Blank Backplane
Honeywell ProWatch/WinPak
A
AMAG
Altronix
Bosch
Brivo
CDVI
DMP
Hirsch
Honeywell NetAXS
Keyscan
Kantech
Mercury
Paxton
Salto
Software House
Sielox
HID/VertX
ZKTeco
Backplane Size
32" x 14.3" x 0.375"
(812.8mm x 363.2mm x 9.5mm)
- 7 -
