Altronix TROVE Series Installation Manual page 4

Altronix Trove2R enclosure includes Z Bracket, a convenient and reliable wire management accessory.
Hardware (included):
Twelve (12) bolts and

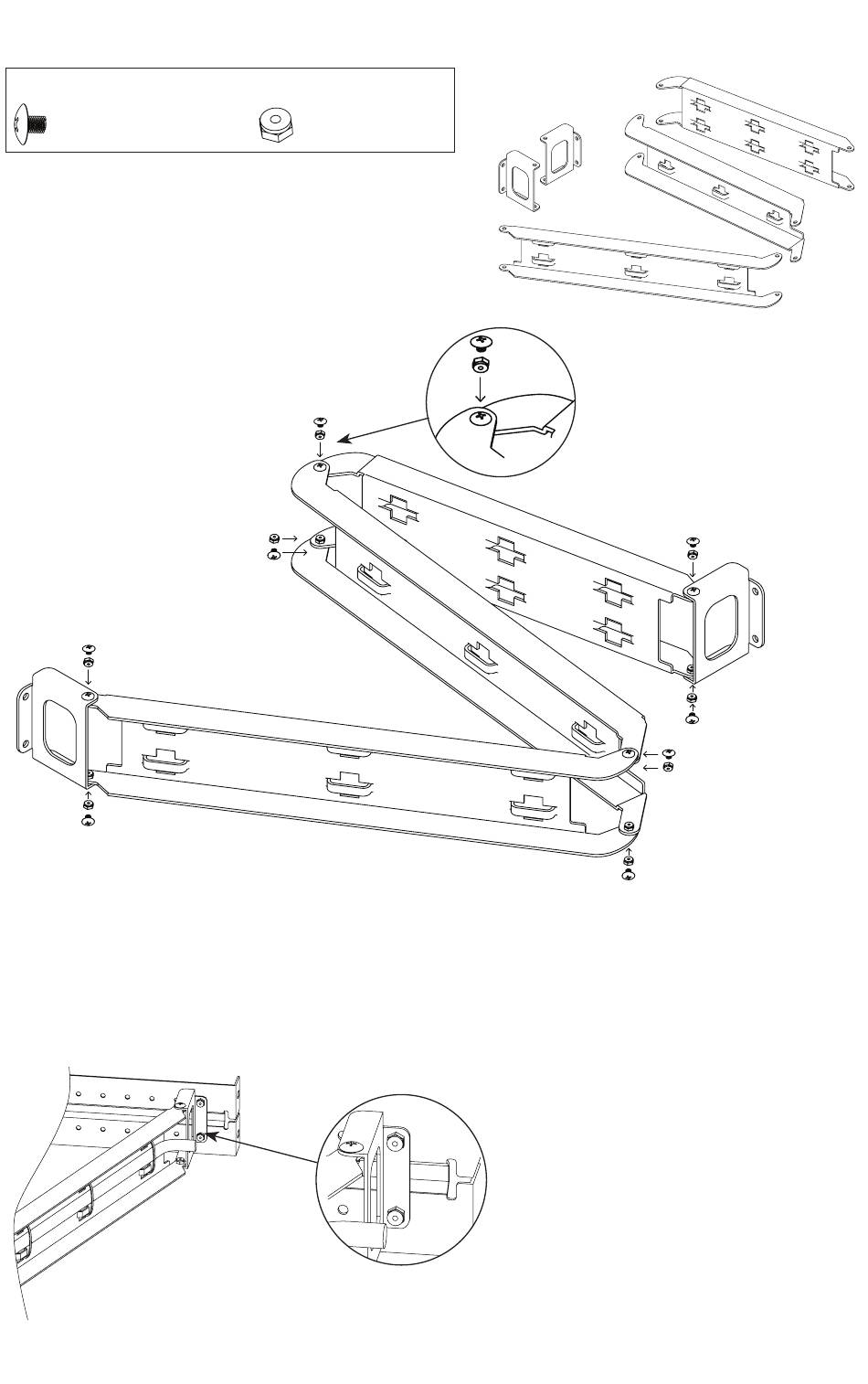

1. Carefully unpack Z Bracket. Do not discard hardware
(included) (Fig. 3, pg. 4).
2. Attach arms to each other using bolts and
lock nuts (Fig. 4a, pg. 4).
3. Attach the hinge brackets to the ends of
arms using bolts and nuts positioning
them as shown on (Fig. 4b, pg. 5).
4. Make sure that all nuts are tightened.
Fig. 4
Fig. 3b
5. Attach the hinge bracket on each end of Z Bracket, then attache the Z Bracket to the adjustable slide
using bolts and lock nuts
(included) (Fig. 5, 5a, pg. 4).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts
(included).
Fig. 5
- 4 -
Z Bracket Installation for Trove2R:
eight (8) lock nuts.
Fig. 5a
Fig. 4a
Fig. 4b
Trove2R Installation Guide
Fig. 3
