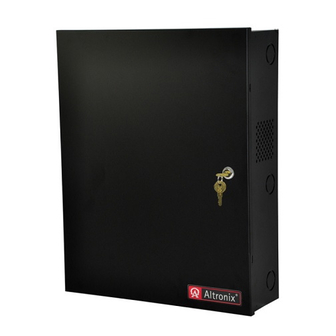

Altronix TROVE T1CVK34 Installation Manual
  1. Manuals
  2. Brands
  3. Altronix Manuals
  4. IP Access Controllers
  5. TROVE T1CVK34
  6. Installation manual

Altronix TROVE T1CVK34 Installation Manual

Hide thumbs Also See for TROVE T1CVK34:

Advertisement

Quick Links

Download this manual
Access & Power Integration
Altronix/CDVI Kits
Models Include:
T1CVK34
4 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1 enclosure with TC1 Altronix/CDVI backplane
- One (1) AL600ULXB - Power Supply/Charger
- One (1) ACM4 - Fused Access Power Controller
T2CVK710
10 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TCV2 Altronix/CDVI backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACM8 - Fused Access Control Module
- One (1) ACM4 - Fused Access Control Module
- One (1) PD8UL - Fused Power Distribution Module
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TCVLK_042922
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2CVK3310
10 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TCV2 Altronix/CDVI backplane
- Two (2) AL600ULXB - Power Supply/Chargers
- Two (2) MOM5 - PTC Power Distribution Modules with
Fire Alarm Interface
T3CVK7720
20 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TCV3 Altronix/CDVI backplane
- Two (2) AL1024ULXB2 - Power Supply/Chargers
- Two (2) ACM8 - Fused Access Control Modules
- One (1) ACM4 - Fused Access Control Module
- One (1) PD8UL - Fused Power Distribution Module
- One (1) RSB2 - Rocker Switch Bracket with
Two (2) Rocker Switches (Not evaluated by UL
More than just power.™

Advertisement

loading
Need help?

Need help?

Do you have a question about the TROVE T1CVK34 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix TROVE T1CVK34

Summary of Contents for Altronix TROVE T1CVK34

  • Page 1 10 Door Kit with PTC Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove1 enclosure with TC1 Altronix/CDVI backplane - Trove2 enclosure with TCV2 Altronix/CDVI backplane - One (1) AL600ULXB - Power Supply/Charger - Two (2) AL600ULXB - Power Supply/Chargers...

  • Page 2: Configuration Chart

    Install the lower screws and make sure to tighten all screws. 3. Mount included UL Listed tamper switch(es) (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
  • Page 3 3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided). Fig. 2 Fig. 2a TRIGGER INPUT IN GND IN GND IN GND IN GND Altronix - AL600ULXB Spacer LED1 LED2 LED3 LED4 Altronix - ACM4 MAIN Backplane OUTPUT 1...
  • Page 4 Please make sure that they are mounted correctly, as shown in Fig. 3 below. 3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided). Fig. 3 Fig. 3a RJ45 Jack Altronix AL1024ULXB2 Spacer CDVI - A22K/A22NB/ADH10 AC DELAY Backplane...
  • Page 5 3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided). Fig. 4 OFF - 24V ON - 12V Fig. 4a RJ45 Jack Altronix - AL600ULXB Spacer CDVI - A22K/A22NB/ADH10 AC DC BAT BAT FAIL NC C NO NC C NO AC FAIL Backplane...
  • Page 6 IN GND IN GND IN GND IN GND Fig. 5b Plastic Spacer RJ45 Jack RJ45 Jack MAIN Altronix - ACM8 10A 250V pre-mounted into CDVI - A22K/A22NB/ADH10 CDVI - A22K/A22NB/ADH10 CDVI Atrium modules NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM...
  • Page 7 T1CVK34 (Trove1) Enclosure Dimensions (H x W x D approximate): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6”...
  • Page 8 T2CVK710 and T2CVK3310 (Trove2) Enclosure Dimensions (H x W x D approximate): 27.25” x 21.5” x 6.5” (692.2mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77”...
  • Page 9 T3CVK7720 (Trove3) Enclosure Dimensions (H x W x D approximate): 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm) 2.00” (50.8mm) 7.12” (222.3mm) 9.5” (241.3mm) 9.5” (241.3mm) 1.25” (31.8mm) 1.55” (39.4mm) 1.78” (45.2mm) 1” Conduit 3/4” Conduit 1.5” Conduit 1.5”...
  • Page 10 Notes: - 10 - Trove CDVI ULXB Kits Installation Guide...
  • Page 11 Notes: - 11 - Trove CDVI ULXB Kits Installation Guide...
  • Page 12 Notes: Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IITrove CDVI ULXB Kits D29V - 12 -...
