3.5.2 Panel Mounting

Mount the module to a panel using two screws per module. Use M4 or #8 panhead
screws. Mounting screws are required on every module.

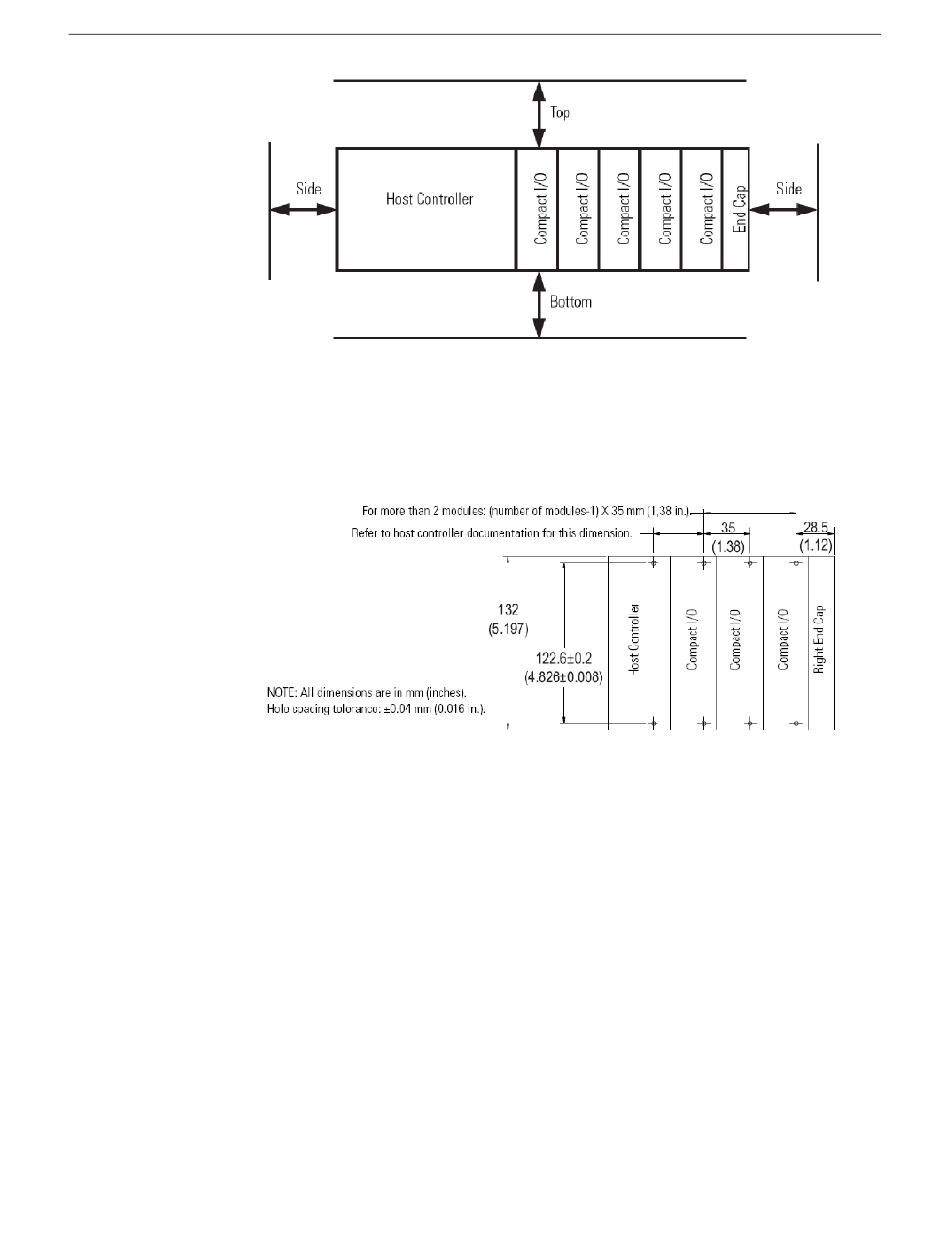

Panel Mounting Using the Dimensional Template
Panel Mounting Procedure Using Modules as a Template
The following procedure allows you to use the assembled modules as a template for
drilling holes in the panel. If you have sophisticated panel mounting equipment, you can
use the dimensional template provided on 3-6. Due to module mounting hole tolerance, it
is important to follow these procedures:
1) On a clean work surface, assemble no more than three modules.
2) Using the assembled modules as a template, carefully mark the center of all
module-mounting holes on the panel.
3) Return the assembled modules to the clean work surface, including any
previously mounted modules.
4) Drill and tap the mounting holes for the recommended M4 or #8 screw.
5) Place the modules back on the panel, and check for proper hole alignment.
6) Attach the modules to the panel using the mounting screws.
Note: If mounting more modules, mount only the last one of this group and put the
