B-4 Compact™ IO Isolated RTD/Resistance Module
User's Manual Pub. 0300241-01 Rev. A
Enter the settings from the table below.
Table C-2 (Module ID Codes)
Vendor ID 58
Product Type 10
Product Code 101
Series A
Input Words 8
Output Words 0
Extra Data Length 12

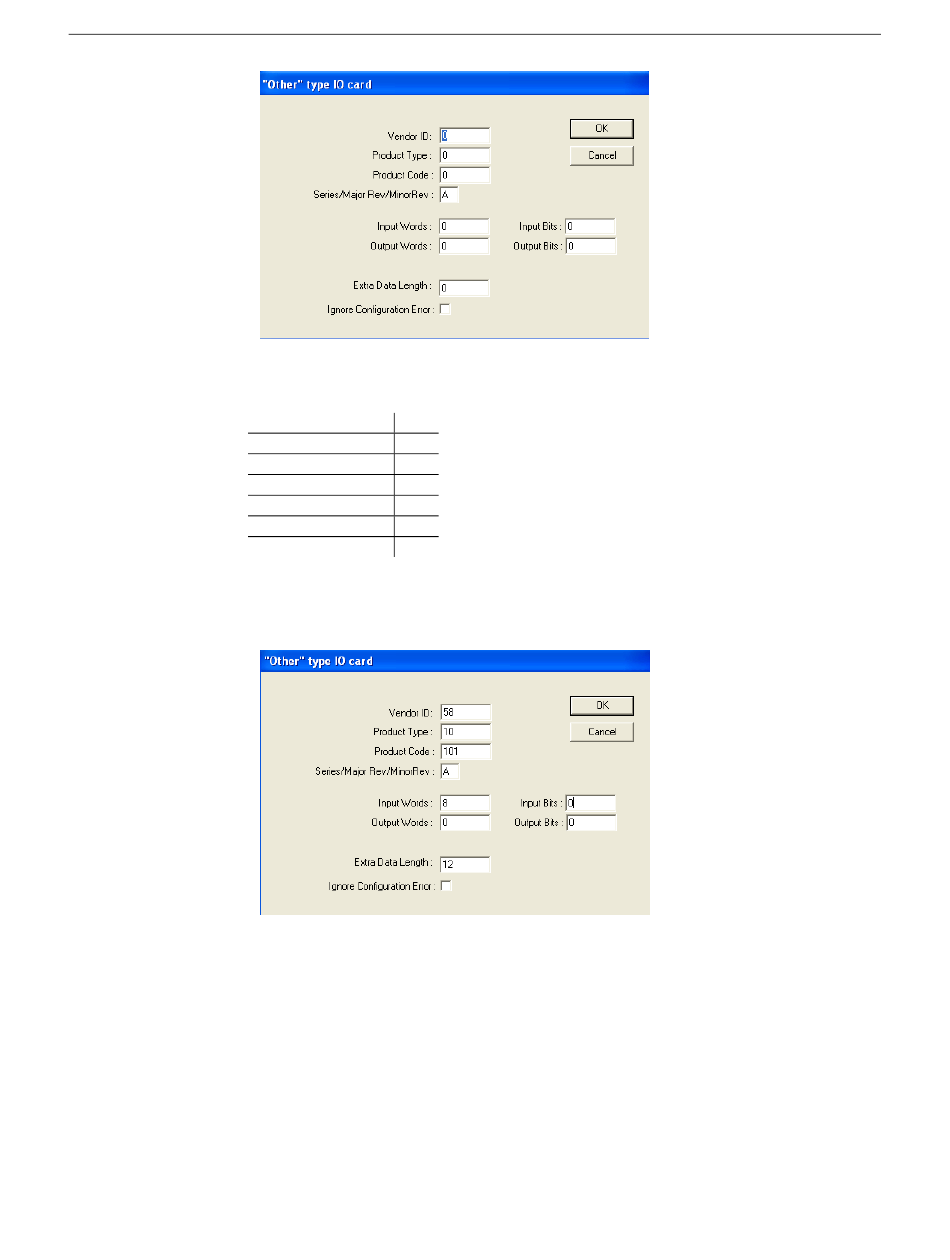

After entering the data from the table above, the screen should look like the one shown
below.
Click the "OK" button when finished.
To complete the configuration, double-click on the module from the IO configuration
screen and select the "Generic Extra Data Config" tab. The screen below should appear.
