Appendix C: Configuring the IR6I for CompactLogix Controllers in RSLogix 5000
User's Manual Pub. 0300241-01 Rev. A

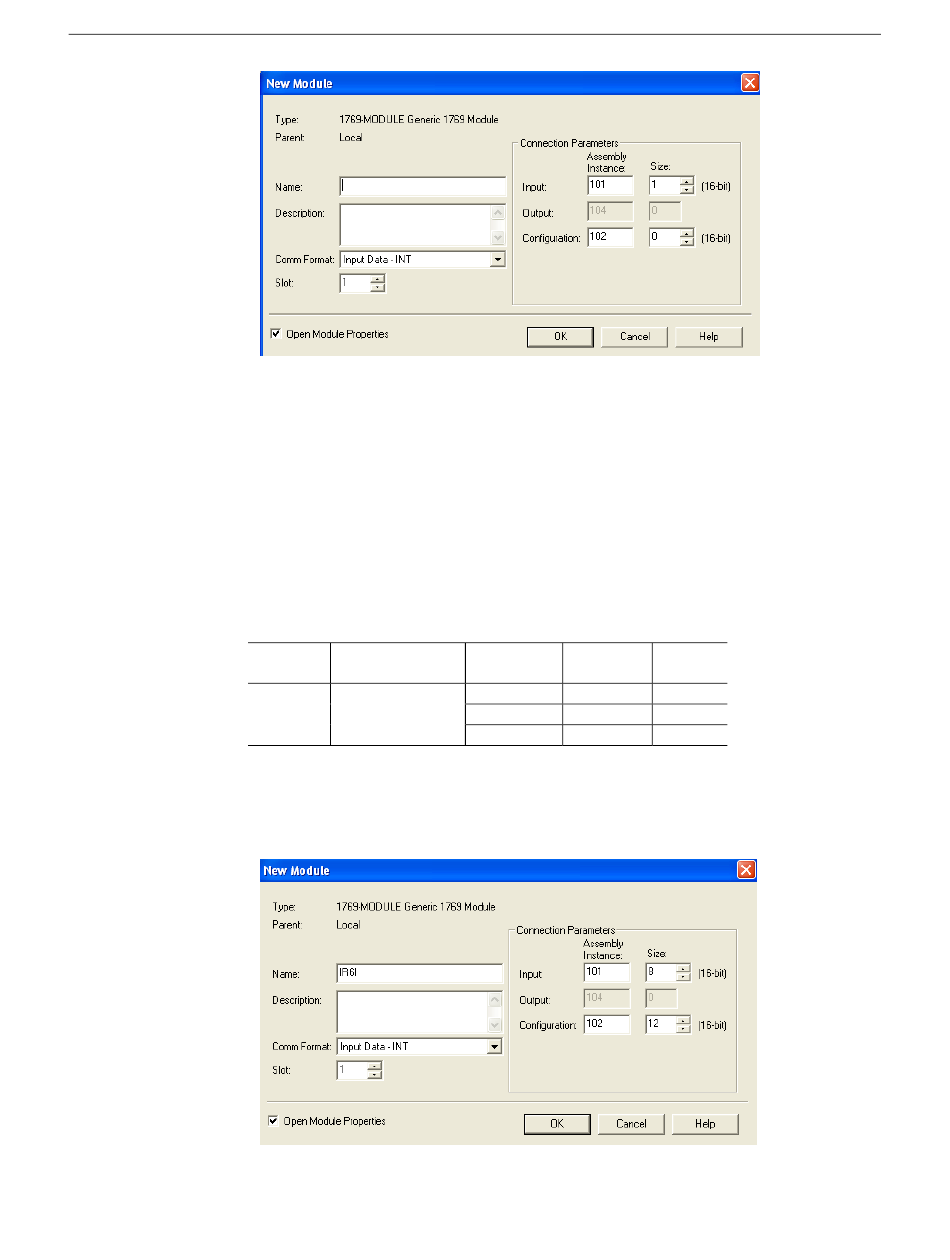

First, select the Comm Format ("Input Data – INT" for the 1769sc-IR6I), then fill in the
name field. For this example, "IR6I" is used to help identify the module type in the
Controller Organizer. The Description field is optional and may be used to provide more
details concerning this I/O module in your application.
The slot number must be selected next, although it will begin with the first available slot
number, 1, and increments automatically for each subsequent Generic Profile you
configure. For this example, the 1769sc-IR6I Isolated RTD/resistance module is located
in slot 1.
The Comm Format, Assembly Instance and Size values are listed in the following table
for the 1769sc-IR6I RTD/resistance module:
Table D-1 (Generic Profile Settings)
1769 I/O Comm.
Module Format
IR6I Input Data - INT
Enter the Assembly Instance numbers and their associated sizes for the 1769sc-IR6I
module into the Generic Profile. When complete, the Generic Profile for a 1769sc-IR6I
module should look like the following:
Parameter Assembly
Instance
Input 101
Output 104
Config. 102
Size
(16-Bit)
8
0
12
C-3
