B-2
Compact™ IO Isolated RTD/Resistance Module
Section B.2
Configuring the
1769sc-IR6I in a
MicroLogix 1500
System
10
May be overridden by the software.
User's Manual Pub. 0300241-01 Rev. A

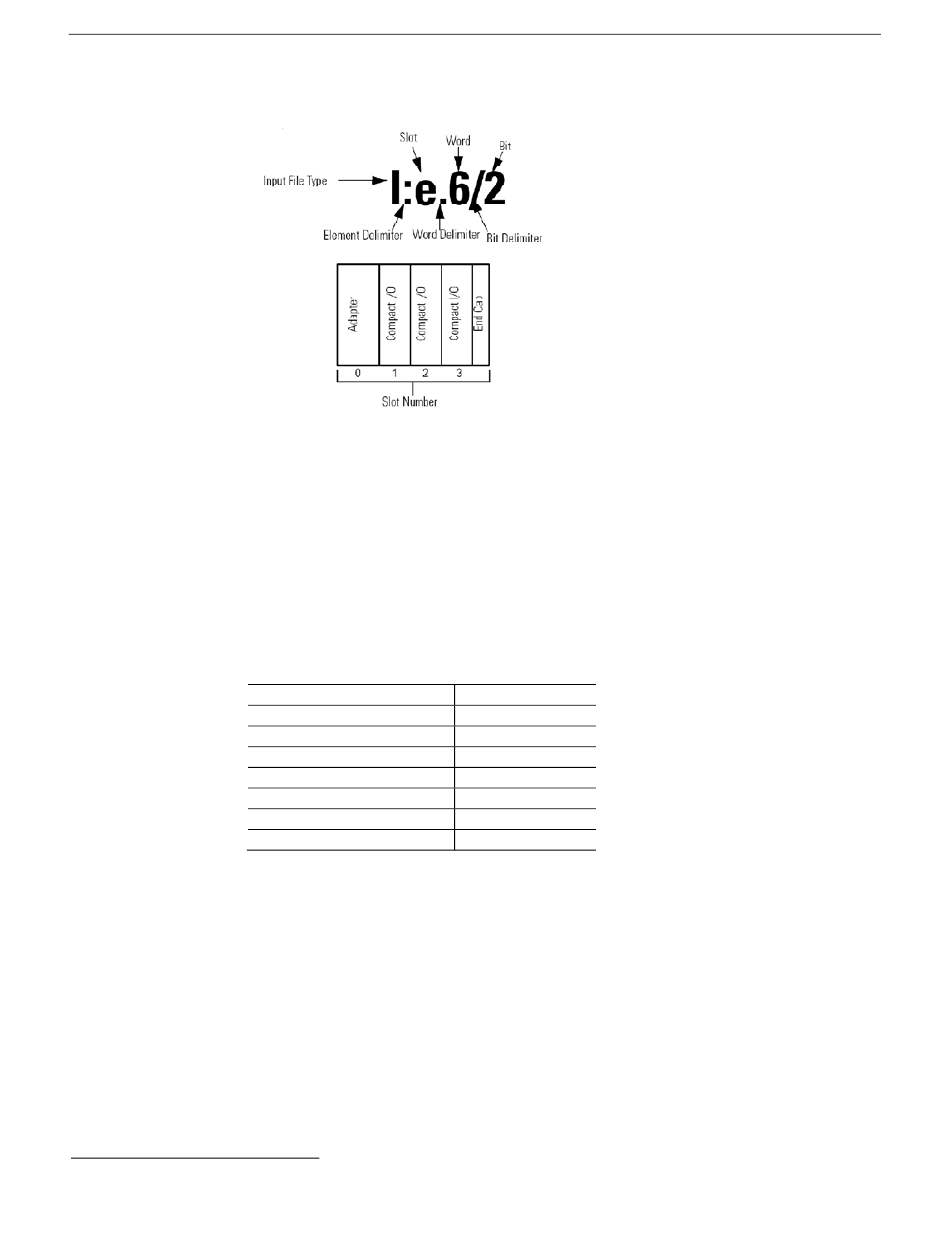

For example, to obtain the general status of channel 2 of the module located in slot e, use
address I:e.6/2.
Note: The end-cap does not use a slot address.
B.1.1 1769sc-IR6I Configuration File
The configuration file contains information you use to define the way a specific channel
functions. The configuration file is explained in more detail in Configuring Channels on
page 4-2.
The configuration file is modified using the programming software configuration screen.
For an example of module configuration using RSLogix 500, see Configuring the
1769sc-IR6I in a MicroLogix 1500 System on page B-2.
Table C-1 (Software Configuration Channel Defaults)
Parameter
Filter Frequency
Cyclic Lead Compensation
Open-Circuit Response
Temperature Units
Input Type
Data Format
Disable/Enable Channel
This example takes you through configuring your 1769sc-IR6I Isolated RTD/Resistance
input module with RSLogix 500 programming software, assumes your module is
installed as expansion I/O in a MicroLogix 1500 system, and that RSLinx™ is properly
configured and a communications link has been established between the MicroLogix
processor and RSLogix 500.
Default Setting
10 Hz
Yes
Upscale
100 Ω Pt 385
Raw/Proportional
Enable
10
