Appendix D: Configuring the IR6I to be Used with a 1769-AND DeviceNet Adapter

Section D.5

Configuring

the 1769sc-IR6I

User's Manual Pub. 0300241-01 Rev. A

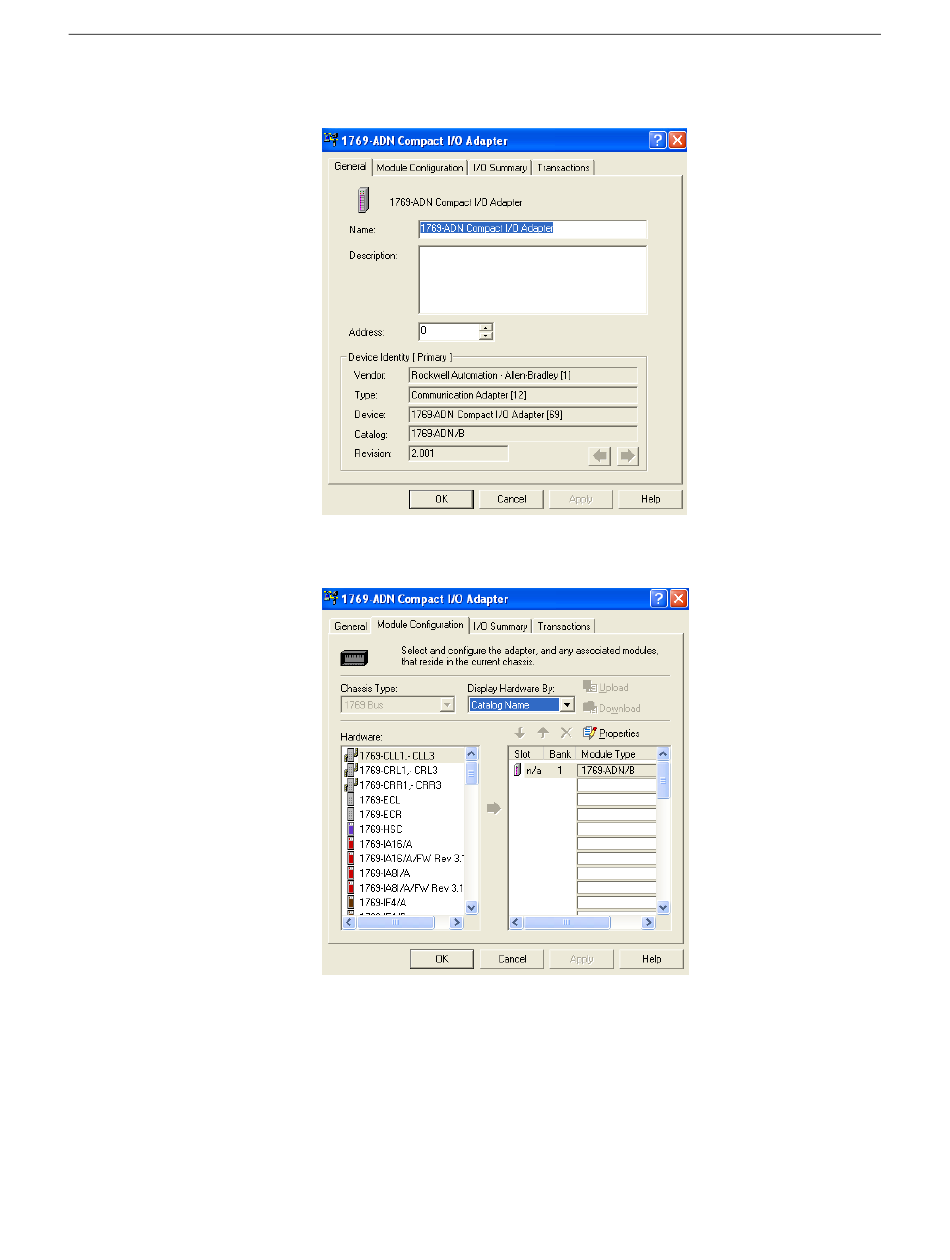

To configure I/O for the adapter, double-click on the adapter that you just placed on the

network, and the following screen appears:

At this point, you may modify the adapters DeviceNet node address, if desired. Next,

click on the Module Configuration tab. The following screen appears:

The 1769-ADN appears in slot 0. Your I/O modules, power supplies, end cap and

interconnect cables must be entered in the proper order, following the 1769 I/O rules

contained in the 1769-ADN user's manual. For simplicity sake, we placed the 1769sc-

IR6I in slot 1 to show how it is configured. As a minimum, a power supply and end cap

must also be placed after the 1769sc-IR6I module. To add the 1769sc-IR6I to bank 1,

D-3
