3-4
Compact™ IO Isolated RTD/Resistance Module
Section 3.4
System Assembly
User's Manual Pub. 0300241-01 Rev. A

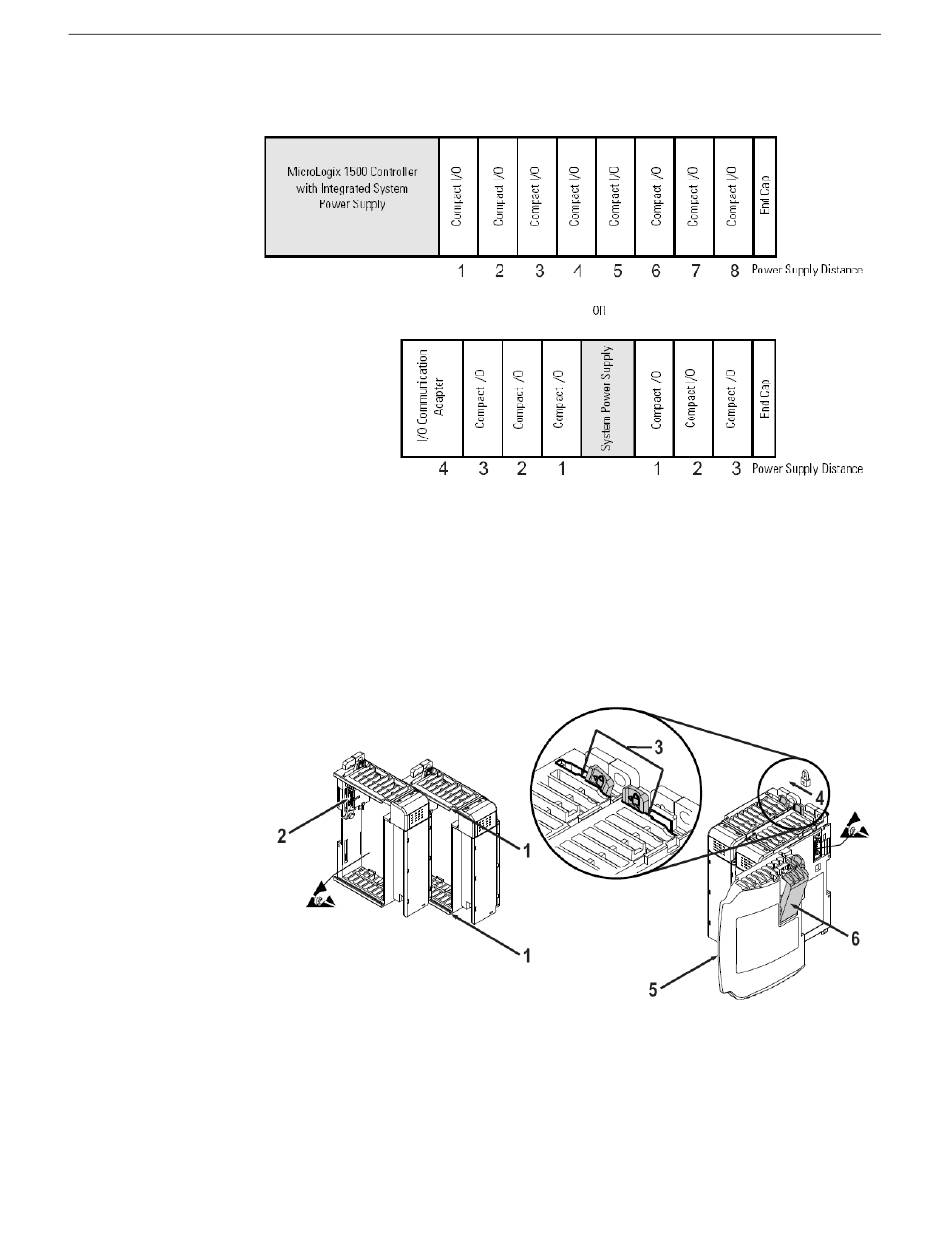

which means that a module may not be located more than 8 modules away from the
system power supply.
The module can be attached to the controller or an adjacent I/O module before or after
mounting. For mounting instructions, see Panel Mounting Using the Dimensional
Template on page 3-6, or DIN Rail Mounting on page 3-7. To work with a system that is
already mounted, see Replacing a Single Module within a System on page 3-7.
The following procedure shows you how to assemble the Compact I/O system.
1) Disconnect power.
2) Check that the bus lever of the module to be installed is in the unlocked (fully
right) position.
Note: If the module is being installed to the left of an existing module, check that the
