Enwork Expanse Installation Manual page 7

4 — E X T R U S I O N A S S E M B LY
4.5

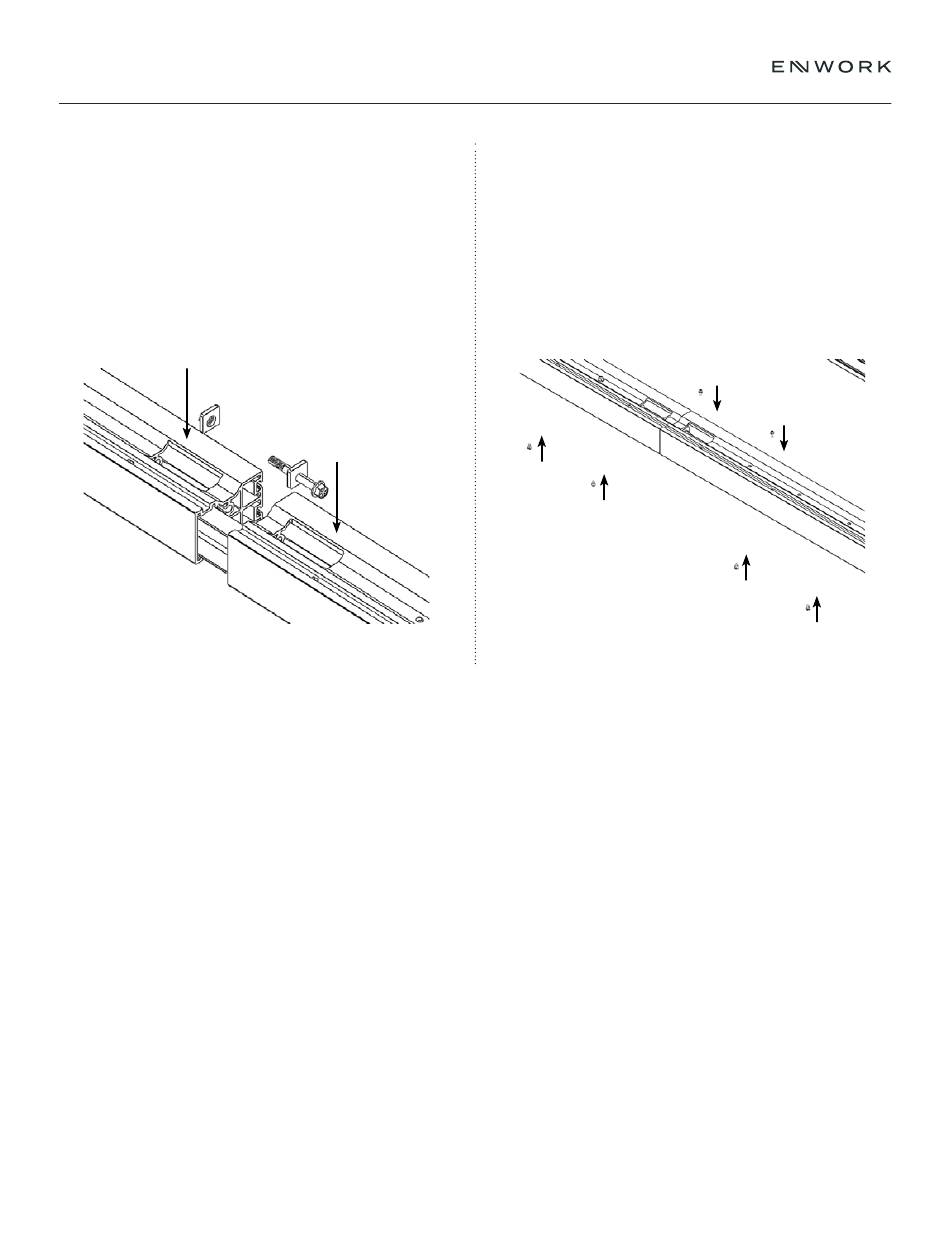

Slide the next extrusion on to the C-Channel.
Assemble (1) Draw Plate 1, (1) Draw Plate 2
and (1) .50 -13 X 4.00" bolt into each Extrusion
connection hole and loosely tighten so the
extrusions line up flush on all sides.
Note: The extrusions must be aligned and square before they
are fully tightening. Adjust as necessary while tightening.
TI0075 - Expanse Table Installation Instructions
4.6
Once the Draw Plates are fully tightened, Fully tighten
the (2) .25-20 x .50" on top of the extrusion and
install and fully tighten (6) .25-20 x .50" into the top
and bottom of the extrusion (as shown in Fig 4.5).
Note: Depending on table length, Left & Right
Extrusions may be assembled at this point.
7
