Summary of Contents for Enwork Expanse

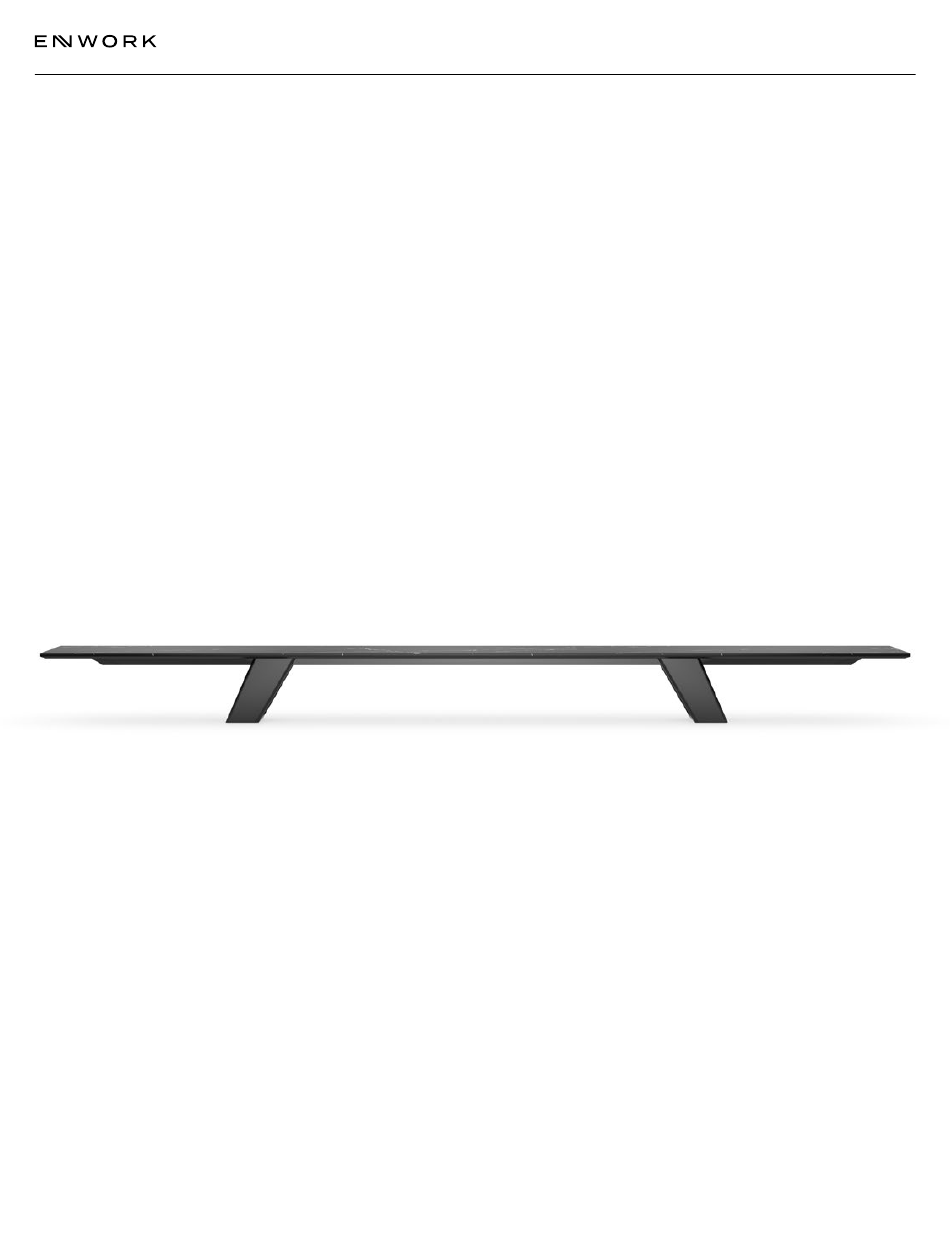

  • Page 1 Expanse 156"–432" Installation Guide TI0075 - Expanse 156"–432" Installation Guide – Rev 07.31.24...
  • Page 2: Tools And Supplies Required

    TOOLS & SUPPLIES REQUIRED DRILL PHILLIPS HEAD DRIVER LEVEL RATCHET SOCKET TAPE MEASURE TI0075 - Expanse 156"–432" Installation Guide...
  • Page 3 .375-16 X .50" DRAW PLATE 1 DRAW PLATE 2 HEX HEAD BOLT #12 X 1.00" .375-16 EASY ADJUST LEVELER KICKSTAND TIGHT JOINT CONNECTOR PAN HEAD SCREW 25-20 NUT BASE PLATE RIGHT BASE LEG LEFT BASE LEG TI0075 - Expanse 156"–432" Installation Guide...
  • Page 4 INCLUDED PARTS & FASTENERS EXTRUSIONS TOP PLATE ASSEMBLY C CHANNEL "L" BRACKET (LEFT, MID, & RIGHT) END CAP BASE BOTTOM COVER, BASE BOTTOM COVER, MAGNET INSIDE OUTSIDE FELT STRIP TI0075 - Expanse 156"–432" Installation Guide...
  • Page 5: Base Assembly

    Hex Head Bolts. Repeat this step for each Top Plate Assembly. Note: Support the upright Base Plate to prevent tipping during installation. Once the base is fully assembled, place the provided Kickstand under the assembly to prevent it from tipping forward. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 6 "T" is facing up (top) and the opening of the "C" is facing bolts. Repeat this step for each Extrusion. outside, as shown in Fig 2.1. Note: Do not fully tighten the bolts at this time. Note: Do not tighten the bolts at this time. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 7 Note: Adjust Extrusions as necessary while tightening. The Extrusions must Note: Depending on the table length, the Left and Right Extrusions may be be aligned and square before fully tightening. assembled at this time. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 8 1.25" Hex Head Bolt. Proceed to secure the Extrusion using .375-16 x 2.25" align with the top slots on the Middle Extrusion Assembly, as shown below. Hex Head Bolts. Repeat this step for the opposite end of the table. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 9 Extrusion. Note: There will be 2 for every top connection L Bracket (EAM 1024). Note: Do not tighten L Brackets at this time. These may need to be repositioned later in the assembly process. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 10 4x .375-16 Square Nuts. Press the end cap tight against the end of the Extrusion. Ensure the backside of the cap is flush with the end of the Extrusion and fully tighten. Repeat this step for each Extrusion Assembly. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 11 Then, tighten all of the brackets to the Extrusion. worksurface to the table assembly using the top connection L Brackets and #12 x 1.00" screws. Note: The location of the top connection L Brackets may be adjusted as needed. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 12 Place a level spanning both beams and level the table across its depth. Add a Felt Strip and Magnet to each side of the Bottom Plate Assembly. Repeat this step for each Base Assembly. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 13 5 — LEVELING FIG 5.5 (OUTSIDE BASE BOTTOM COVER) Install the Outside Base Bottom Covers between the Base Legs. Repeat this step for Each Base Assembly. TI0075 - Expanse 156"–432" Installation Guide...
  • Page 14 800.815.7251 enwork.com 12900 Christopher Drive Lowell, MI 49331 Specifications subject to change without notice.
