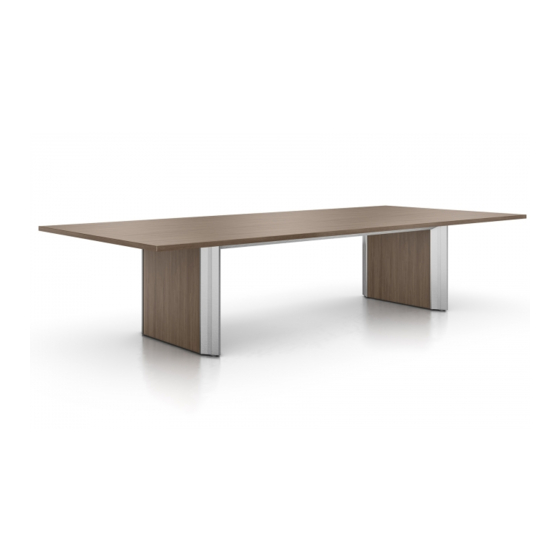

- Page 1 Stealth 2-Base Conference Table Installation Instructions Rev 0315...
-
Page 2: Tools Required
STEALTH CONFERENCE TABLE ASSEMBLY 2 BASE CONFIGURATIONS FULL BASE ASSEMBLY TOOLS REQUIRED: FASTENERS INCLUDED IN HARDWARE PACK: #2 PHILLIPS SCREWDRIVER, OR DRIVER BIT WITH POWER TOOL 5/16-18 FLANGE NUTS ATTACHED TO 90° CORNER BRACKET ½” COMBINATION WRENCH #1 SCREW... - Page 3 TOP SUPPORT EXTRUSION FIGURE #2 - EXTRUSION BEAM DEPENDING UPON BEAM LENGTH THE NUMBER OF TOP SUPPORT EXTRUSIONS WILL VARY. THEY SHOULD BE EVENLY SPACED BETWEEN EXTRUSIONS AND ½ THE DISTANCE FROM THE EXTRUSION TO THE BASE ASSEMBLY 90° BRACKETS (LEFTHAND & RIGHTHAND ) FIELD BASE ASSEMBLY –...
- Page 4 PANEL RETAINER PLATE & SCREW LEVELER FIGURE #5 NOTE PANEL RETAINER PLATE, SCREWS AND LEVELERS ARE INSTALLED AT THE FACTORY. LEVELERS SHOULD BE ADJUSTED AS NEED TO LEVEL TABLE BASE ASSEMBLY PRIOR TO INSTALLING TABLE TOP...
- Page 5 FIGURE #6 INSERT EXTRUSION ON TO BOLT PLATE, BOLT PLATE SHOULD SLIDE INTO CHANNEL IN EXTRUSION (SEE FIGURE #7) EXTRUSION CHANNEL FOR BOLT PLATE FIGURE #7...
- Page 6 PLACE TOP ON BASE ASSEMBLY AND CENTER SIDE TO SIDE AND FRONT TO BACK, OVERHANG ON THE ENDS VARIES DEPENDING UPON SIZE OF TOP SEE CHART FOR APPROXIMATE OVERHANG DISTANCE. STEALTH TABLE BASE CONFIGURATION Table Size - inches Overhang - inches No.
